Fuel Pump Cover Replacement

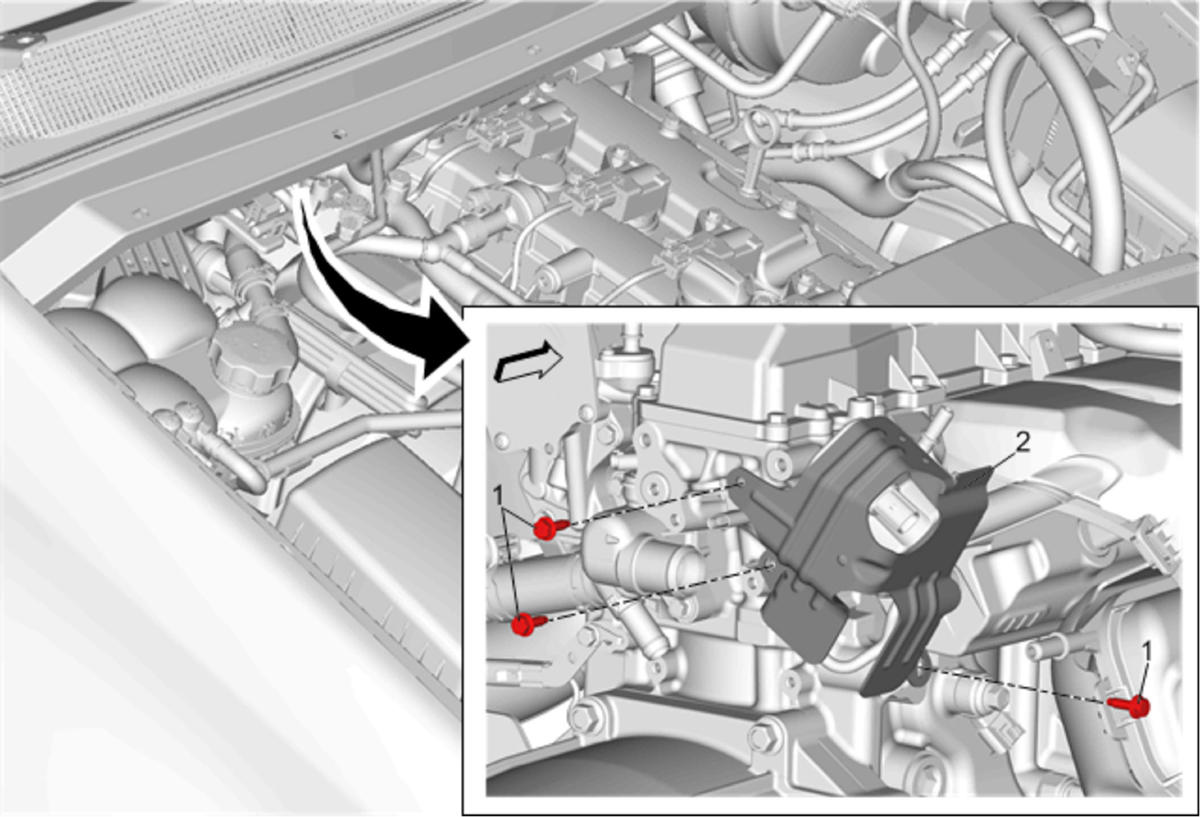

Fig 1: Fuel Pump Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Remove the plenum front panel. Refer to Plenum Front Panel Replacement . Disconnect the radiator inlet pipe from the water outlet. Refer to Radiator Inlet Pipe Replacement (LCV) .
1	Fuel Pump Cover Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Fuel Pump Cover Procedure Disconnect the electrical wiring harness connector from the fuel pump.

Callout

Component Name

Preliminary Procedure

Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
Remove the plenum front panel. Refer to Plenum Front Panel Replacement .
Disconnect the radiator inlet pipe from the water outlet. Refer to Radiator Inlet Pipe Replacement (LCV) .

Fuel Pump Cover Fasteners (Qty: 3)

CAUTION:

Tighten
10 N.m (89 lb in)

Fuel Pump Cover
Procedure
Disconnect the electrical wiring harness connector from the fuel pump.
