Fuel Pump Insulator Replacement

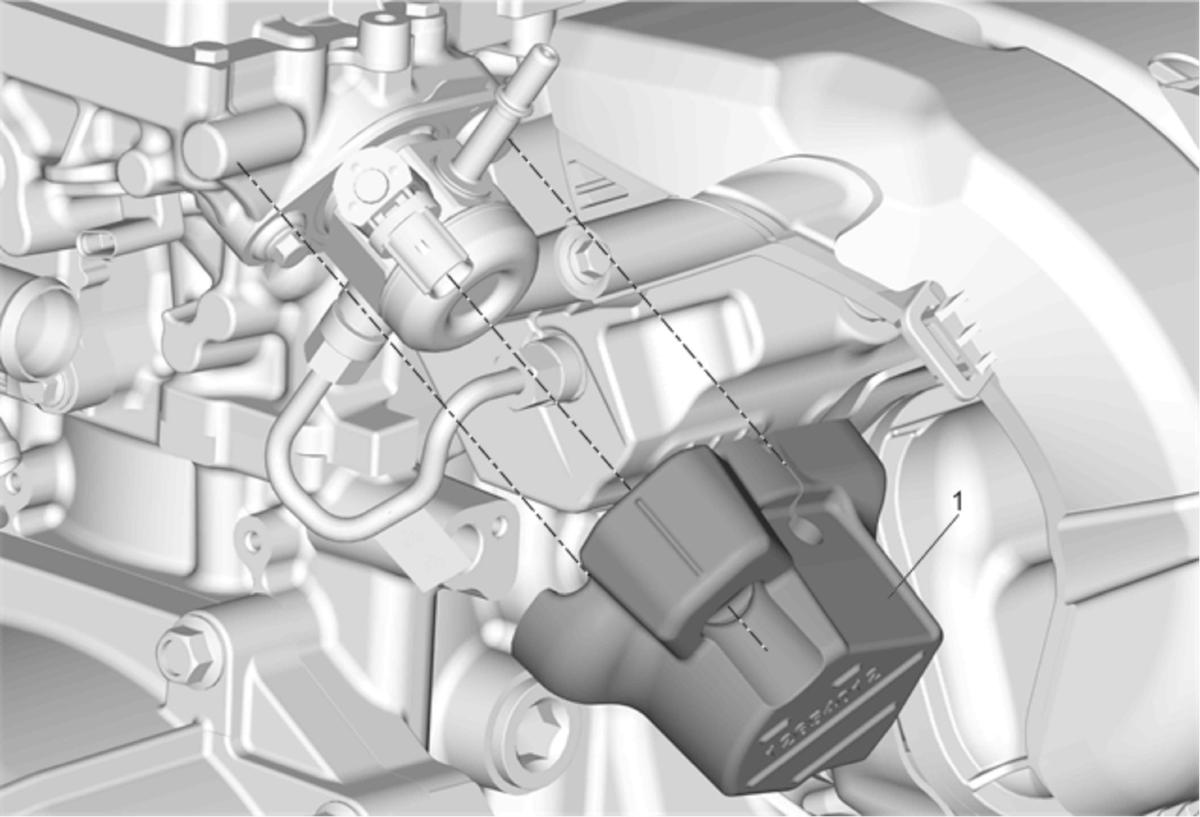

Fig 1: Fuel Pump Insulator
GM3817015Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
  2. Remove the plenum front panel. Refer to Plenum Front Panel Replacement .
  3. Remove the fuel pump cover. Refer to Fuel Pump Cover Replacement .
1 Fuel Pump Insulator
NOTE:

The fuel pump insulator snaps into place.
