Fuel Pump Power Control Module Replacement

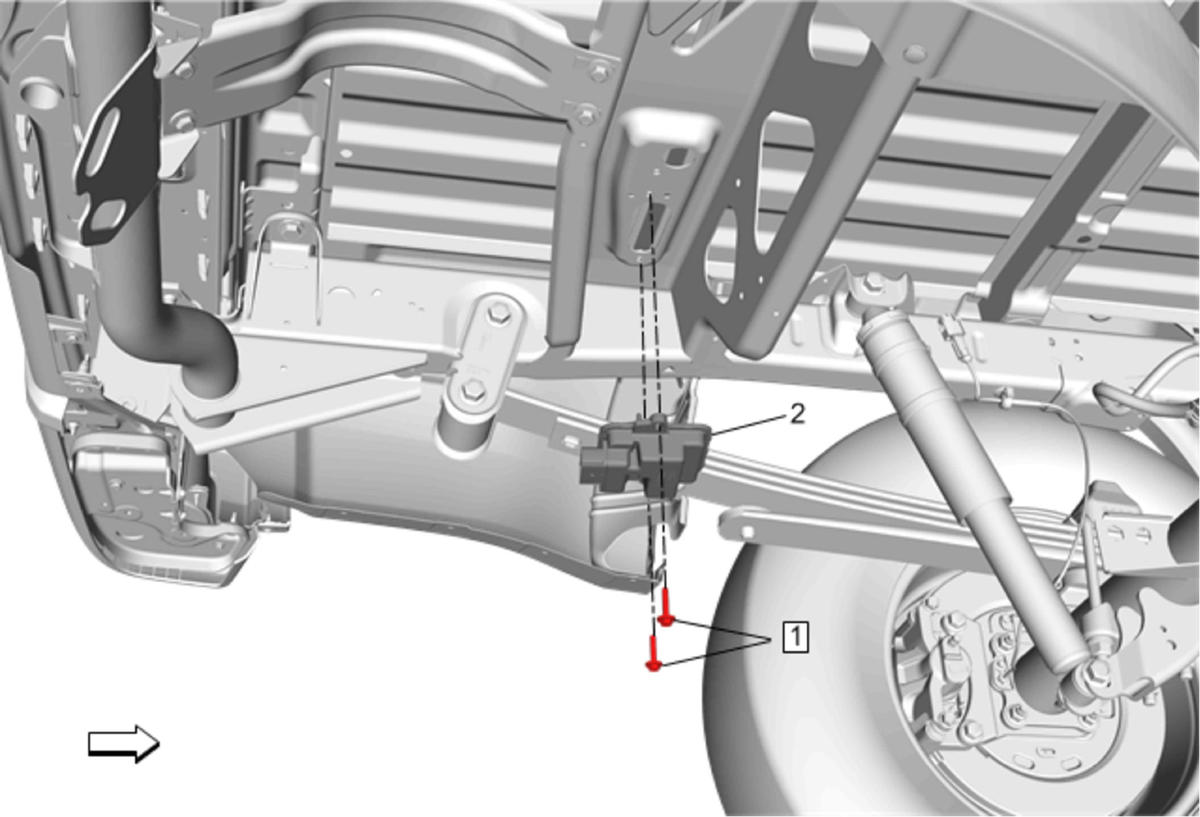

Fig 1: Fuel Pump Power Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the spare tire.
1	Fuel Pump Power Control Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Fuel Pump Power Control Control Module Procedure Disconnect the electrical connector. If replacing, reprogram the module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedures

Fuel Pump Power Control Module Fastener (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Fuel Pump Power Control Control Module

Procedure
