Installation Procedure

    NOTE:

    The camshaft must be in the base circle position before the high pressure fuel pump is installed.

  1. Use the EN-50790  alignment gauge to ensure that the camshaft lobe is in the base circle position. At base circle the tool will be flush with the head.
  2. Lubricate the high pressure fuel pump cylinder head bore and roller lifter with camshaft prelube or clean engine oil. Refer to Adhesives, Fluids, Lubricants, and Sealers .

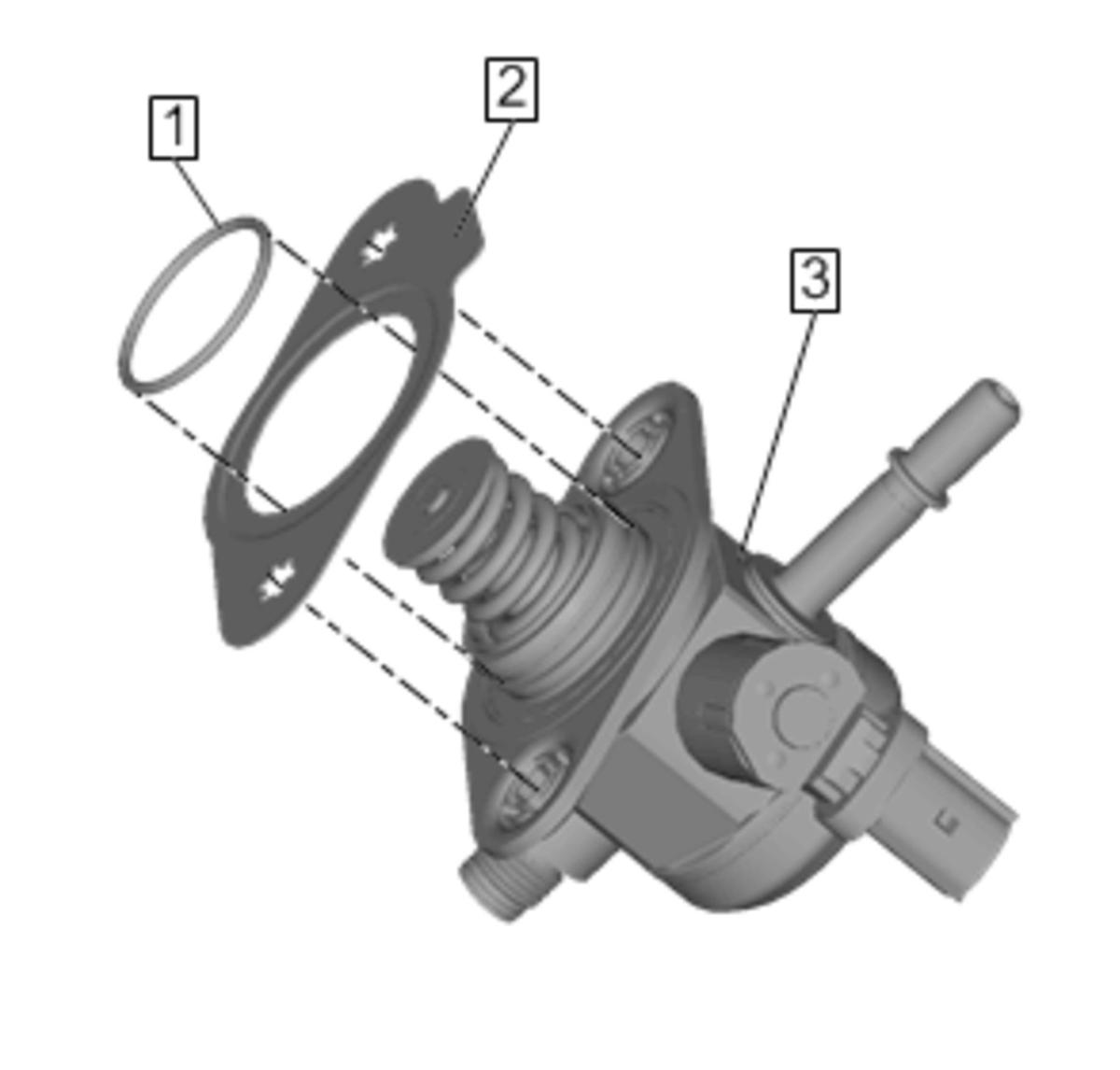

    3. Fig 1: High Pressure Fuel Pump O-Ring
    GM3961843Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Lubricate the NEW O-ring seals with clean engine oil.Lubricate the NEW O-ring seals with clean engine oil.

  3. Install a NEW high pressure fuel pump O-ring (1) to the pump (3).
    4. NOTE:

    The high pressure fuel pump gasket has a retaining feature to hold the pump retaining bolts in place.

  4. Position the NEW high pressure fuel pump gasket (2) to the fuel pump (3).

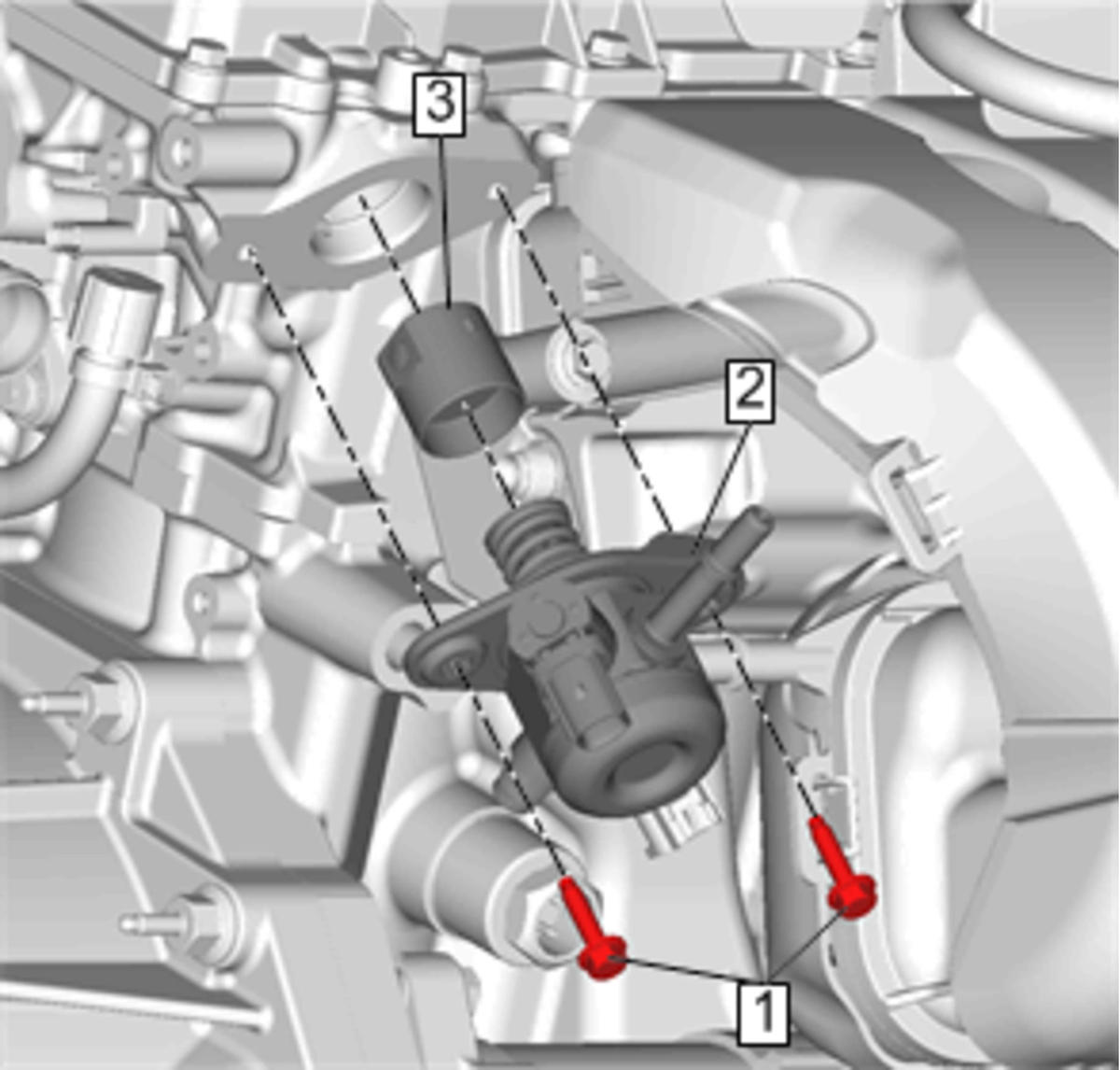

    5. Fig 2: High Pressure Fuel Pump And Bolts
    GM3961821Courtesy of GENERAL MOTORS COMPANY
  5. Install the high pressure fuel pump roller lifter (3).
  6. Install the high pressure fuel pump (2). Force will be required while hand tightening the bolts.
    7. CAUTION:

    Alternately hand-tighten the fuel pump bolts one turn at a time until the pump is fully seated. Trying to draw down the pump without even side-to-side tightening may result in pump plunger damage.

    CAUTION:

    Refer to Fastener Caution .

    CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

    NOTE:

    Add thread locker to the fuel pump fastener threads prior to installing. Adhesives, Fluids, Lubricants, and Sealers

  7. Start and hand-tighten the NEW fuel pump bolts (1) evenly.
  8. Tighten Fuel Pump Bolt.
    1. First Pass: 8 N.m (71 lb in)
    2. Final Pass: + 50 Degrees
  9. Ensure the high pressure fuel pump and fuel rail fittings are clean prior to assembly.
  10. Install a NEW high pressure fuel pipe. Refer to Fuel Feed Intermediate Pipe Replacement .
  11. Install the low pressure fuel feed pipe to the high pressure fuel pump. Refer to Fuel Feed Pipe Replacement (At Tank) Fuel Feed Pipe Replacement (At Engine) .
  12. Connect the high pressure fuel pump wiring harness.
  13. Install the fuel tank cap.
    14. NOTE:

    If a fuel leak occurs at the fuel rail, the fuel rail will need to be replaced.

  14. Inspect for leaks using the following procedure:
    1. Turn ON the ignition, with the engine OFF for 2 seconds.
    2. Turn OFF the ignition, for 10 seconds.
    3. Turn ON the ignition, with the engine OFF.
    4. Inspect for fuel leaks.
  15. Install the pressure relief cap to the fuel feed pipe.
  16. Install the fuel pump insulator. Refer to Fuel Pump Insulator Replacement .
