Installation Procedure

  1. Install the following components if fuel tank replacement was necessary:
    1. Fuel tank fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement .

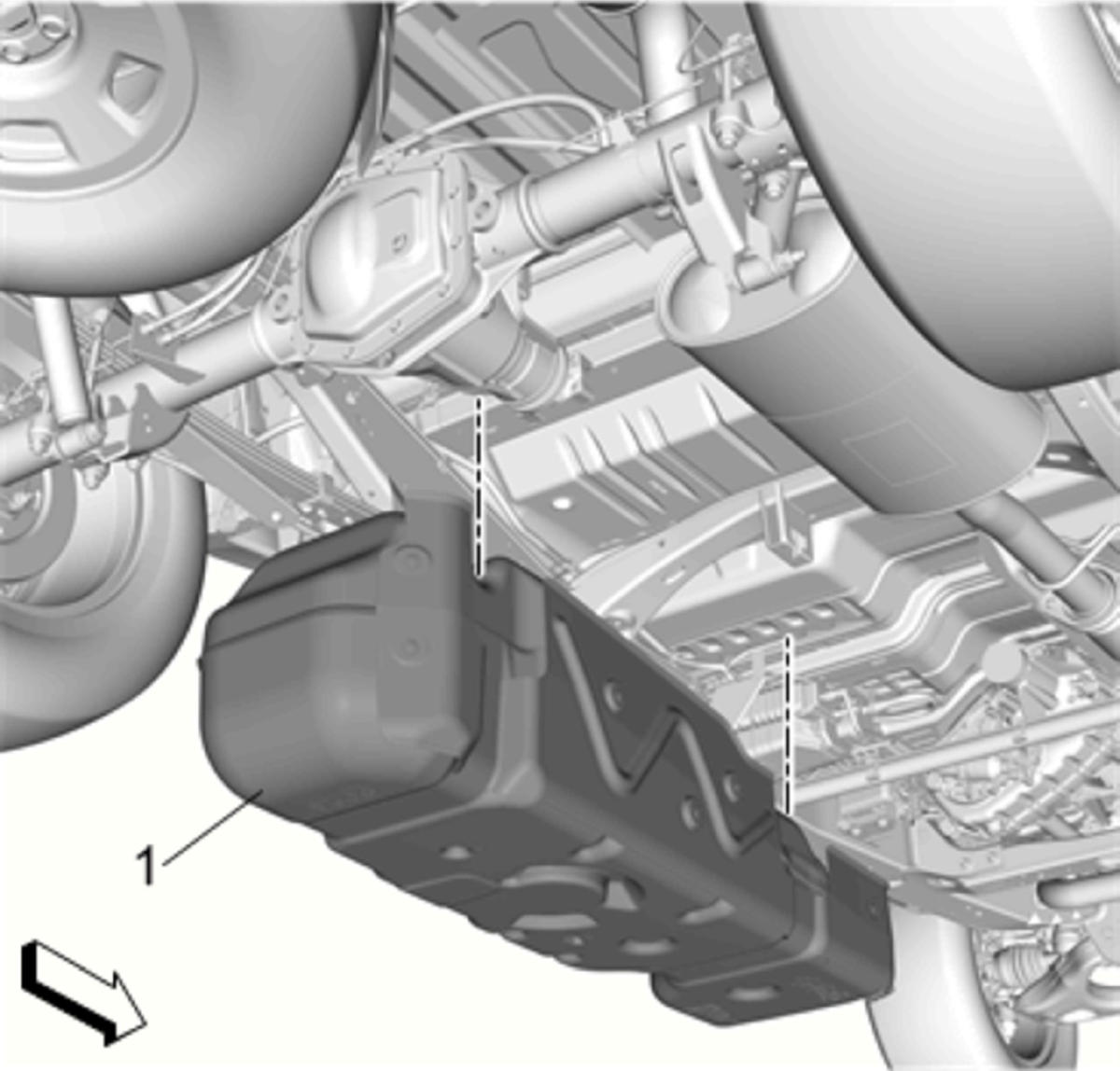

    2. Fig 1: Fuel Tank
    GM3766055Courtesy of GENERAL MOTORS COMPANY
  2. Use a suitable jack and install the fuel tank (1).
  3. Connect the fuel tank harness electrical connector.

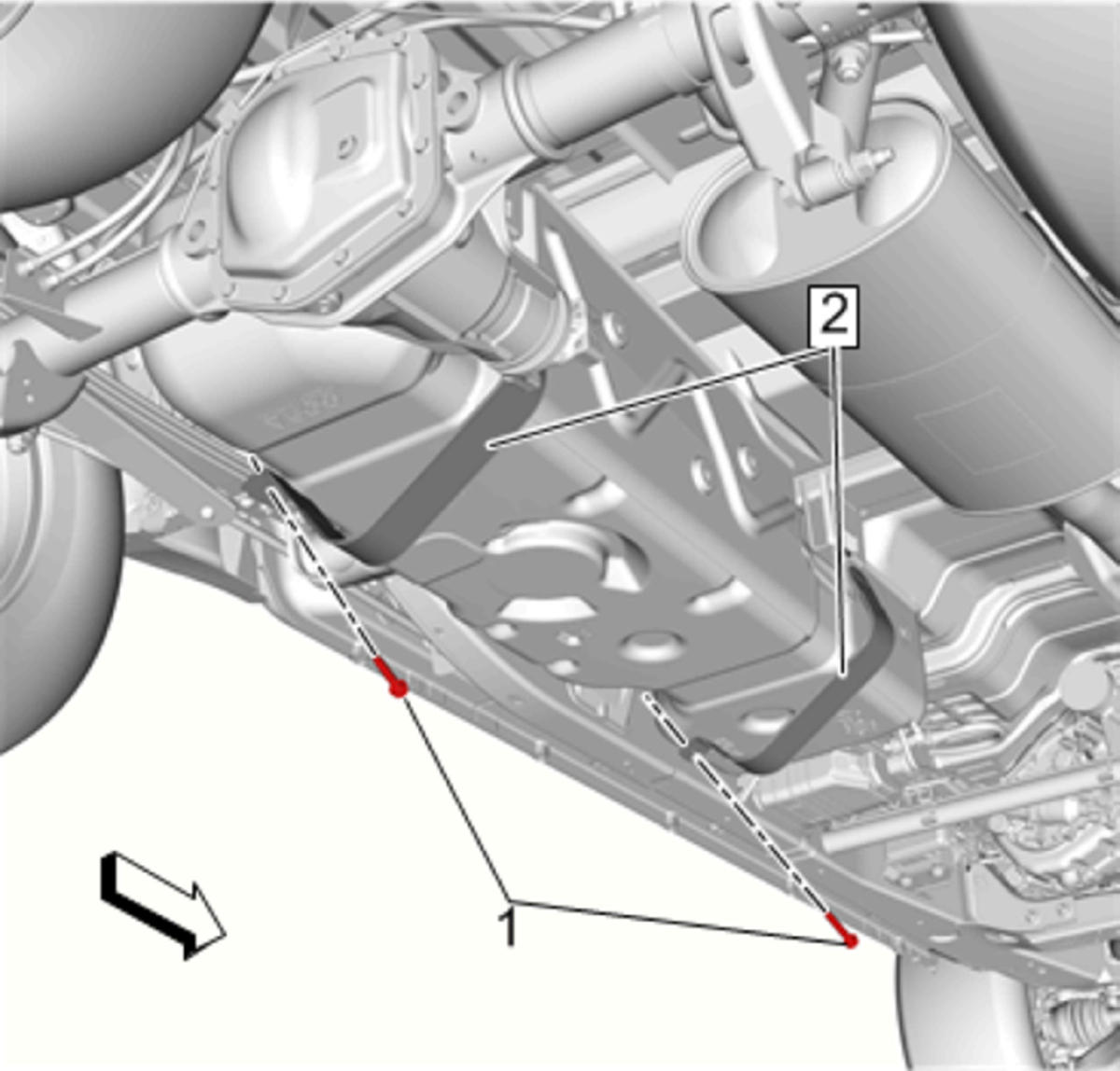

    4. Fig 2: Fuel Tank Strap Bolts And Fuel Tank Straps
    GM3766029Courtesy of GENERAL MOTORS COMPANY
  4. Reposition the fuel tank straps (2).
    5. CAUTION:

    Refer to Fastener Caution .

  5. Install the fuel tank strap bolts (1) and tighten to 45 N.m (33 lb ft).

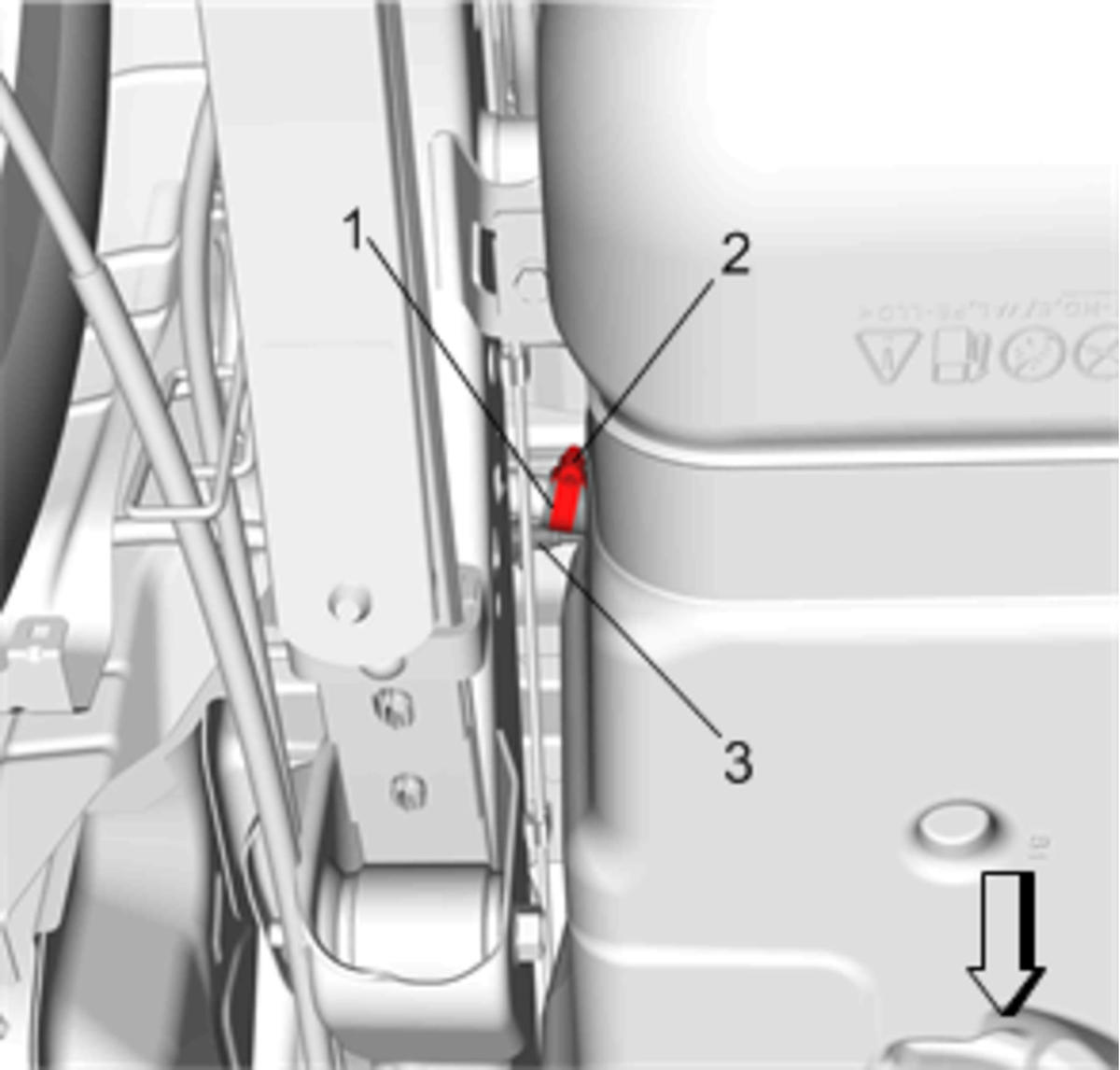

    6. Fig 3: Hose Clamps
    GM3765972Courtesy of GENERAL MOTORS COMPANY
  6. Install the filler hose (1) and tighten the hose clamp (2) to 4 N.m (35 lb in).
  7. Install Pickup Box Wheelhouse Panel Replacement.Rear Wheelhouse Liner Replacement
  8. Connect the evaporative emission line (3). Refer to Plastic Collar Quick Connect Fitting Service .

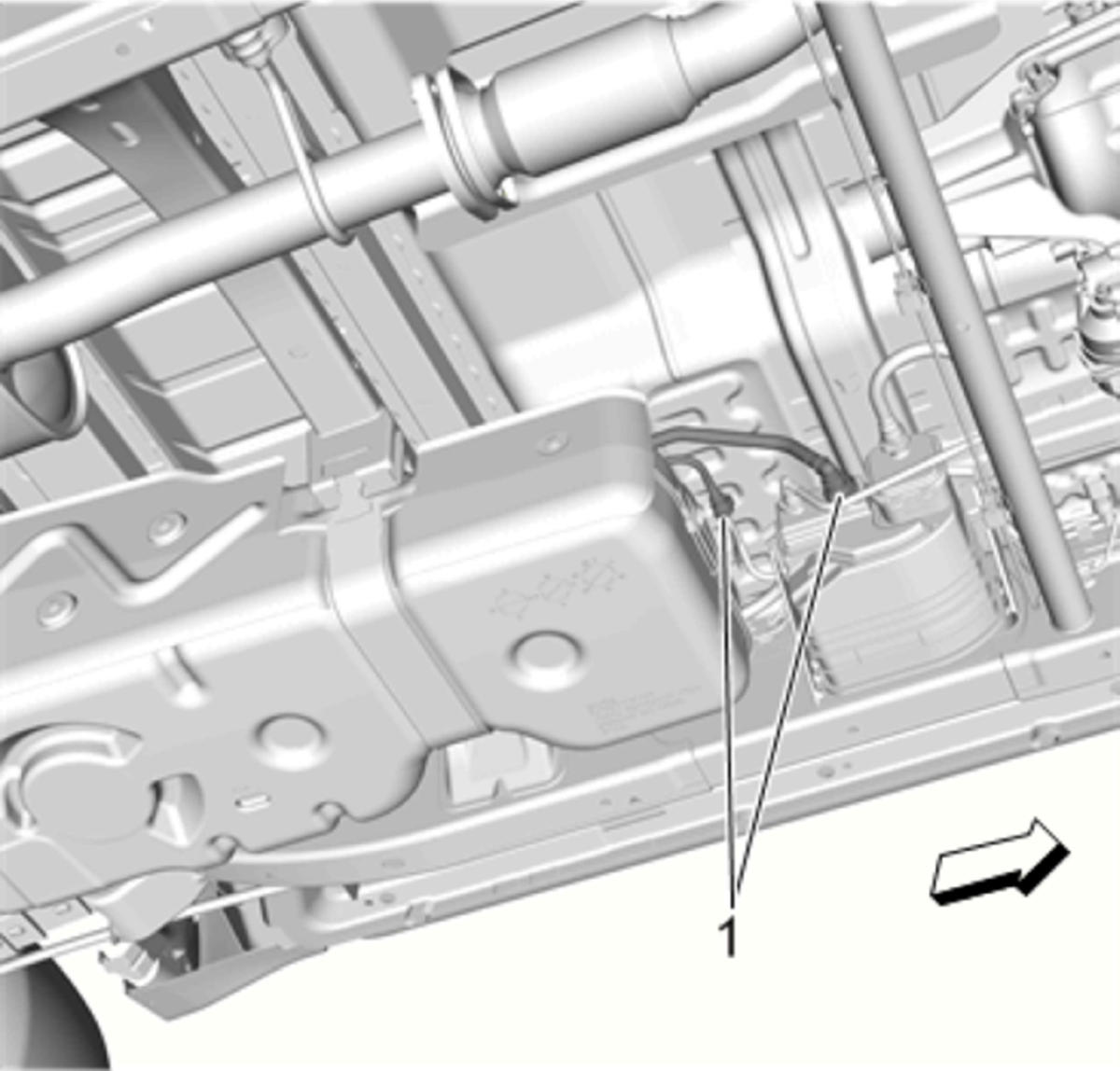

    9. Fig 4: Evaporative Emission And Fuel Pipes
    GM3766077Courtesy of GENERAL MOTORS COMPANY
  9. Connect the evaporative emission and fuel pipes (1). Refer to Plastic Collar Quick Connect Fitting Service .
  10. Lower the vehicle.
  11. Refill the fuel tank.
  12. Inspect for fuel leaks.
