Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

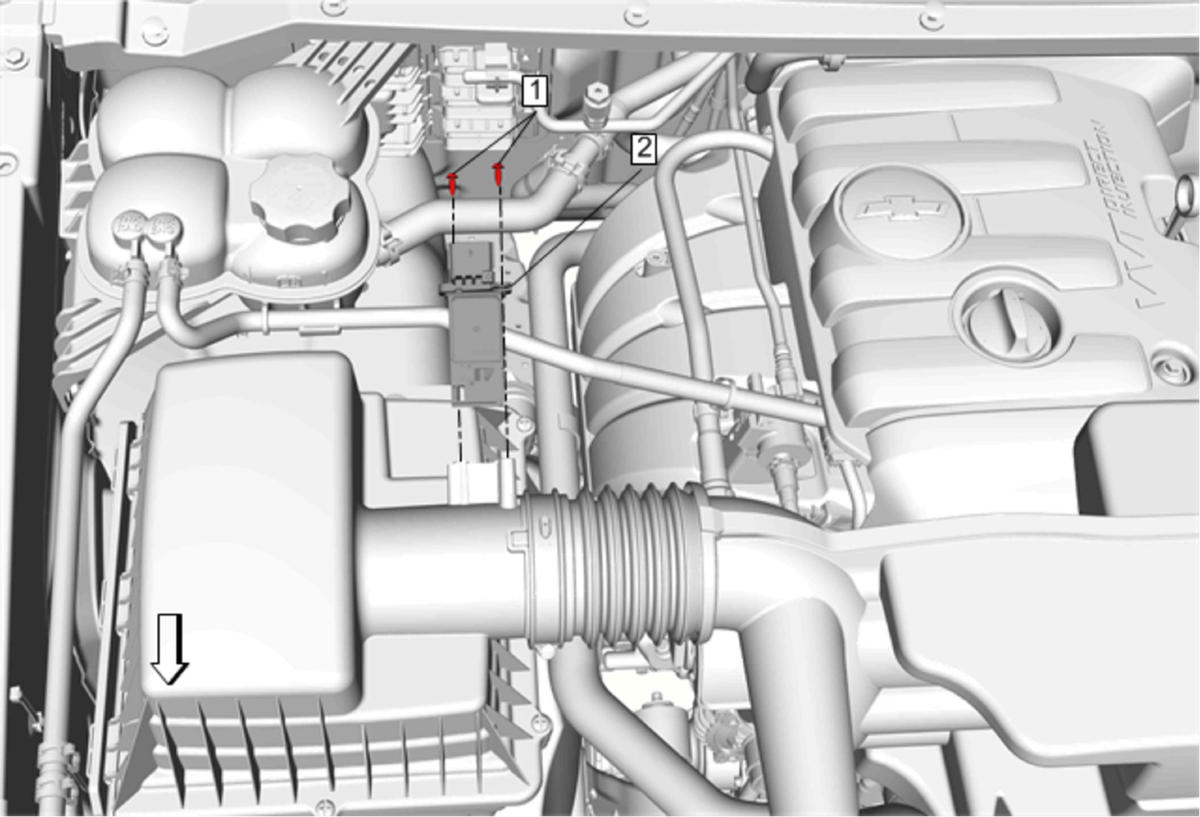

Fig 1: Mass Airflow Sensor with Intake Air Temperature Sensor
GM3946712Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Mass Air Flow Sensor Fasteners (Qty :2)
CAUTION:

Refer to Fastener Caution .

2 Mass Air Flow Sensor
Procedure
Disconnect the electrical connector.
