Electrical Component Locator - Front Of Vehicle/Engine Compartment Component Views
>>
Front of Vehicle/Engine Compartment Component Views
>>
Right Rear of Engine Compartment Components
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Right Rear of Engine Compartment Components
Right Rear of Engine Compartment Components
Items
1: K20 Engine Control Module
K20 Engine Control Module X1 (LCV)
K20 Engine Control Module X1 (LGZ)
K20 Engine Control Module X1 (LGZ+ZR2)
K20 Engine Control Module X1 (LWN)
K20 Engine Control Module X2 (LCV)
K20 Engine Control Module X2 (LGZ)
K20 Engine Control Module X2 (LGZ+ZR2)
K20 Engine Control Module X2 (LWN)
K20 Engine Control Module X3 (LCV)
K20 Engine Control Module X3 (LGZ)
K20 Engine Control Module X3 (LGZ+ZR2)
K20 Engine Control Module X3 (LWN)

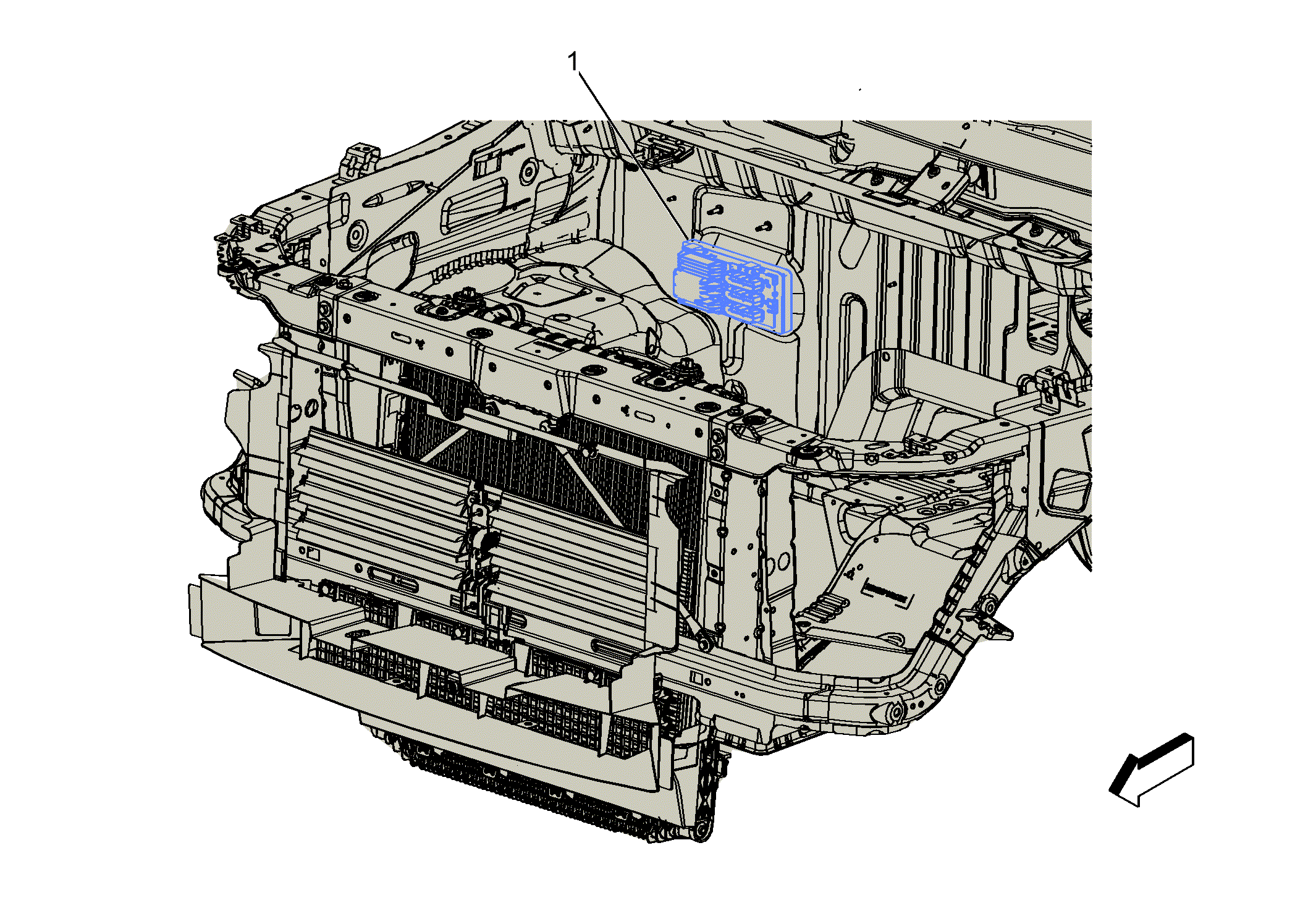

Fig 1: Right Rear of Engine Compartment Components
Courtesy of GENERAL MOTORS COMPANY
