Right Bottom of Engine Components (LGZ)

Right Bottom of Engine Components (LGZ)

Items
1. B68A Knock Sensor 1 (LCV/LGZ) B68A Knock Sensor 1
2. M9 Brake Booster Pump Motor (LGZ) M9 Brake Booster Pump Motor
3. B35 Engine Oil Level Switch B35 Engine Oil Level Switch (LGZ)
4. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LGZ+ZR2)B26 Crankshaft Position Sensor (LGZ-ZR2)

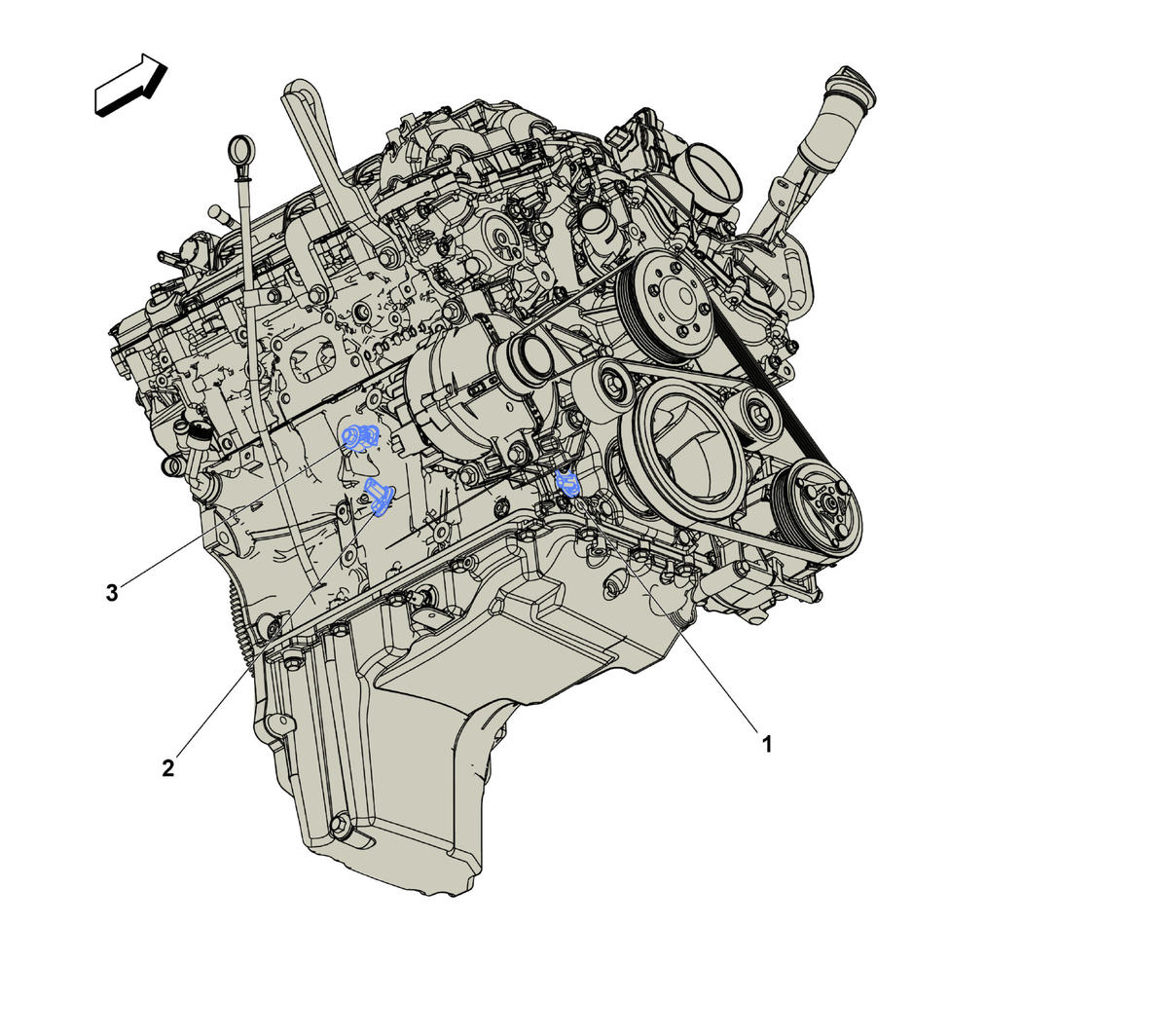

Fig 1: Right Bottom of Engine Components (LGZ)
GM4693818Courtesy of GENERAL MOTORS COMPANY
