Windshield Wiper System Module Replacement

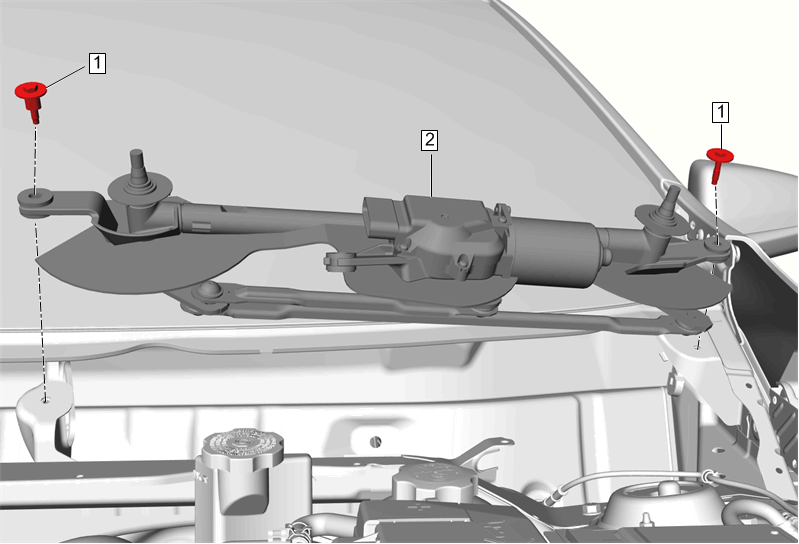

Fig 1: Windshield Wiper System Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Air Inlet Screen. Refer to Air Inlet Screen Replacement (Equinox) Air Inlet Screen Replacement (Terrain)
1	Windshield Wiper Transmission Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Windshield Wiper System Module Procedure Disconnect the electrical connector. Remove the wiper system module from the plenum brackets.

Callout

Component Name

Windshield Wiper Transmission Bolt (Qty: 2)

CAUTION:

Tighten
8 N.m (71 lb in)

Windshield Wiper System Module

Procedure
