Front View Camera Replacement

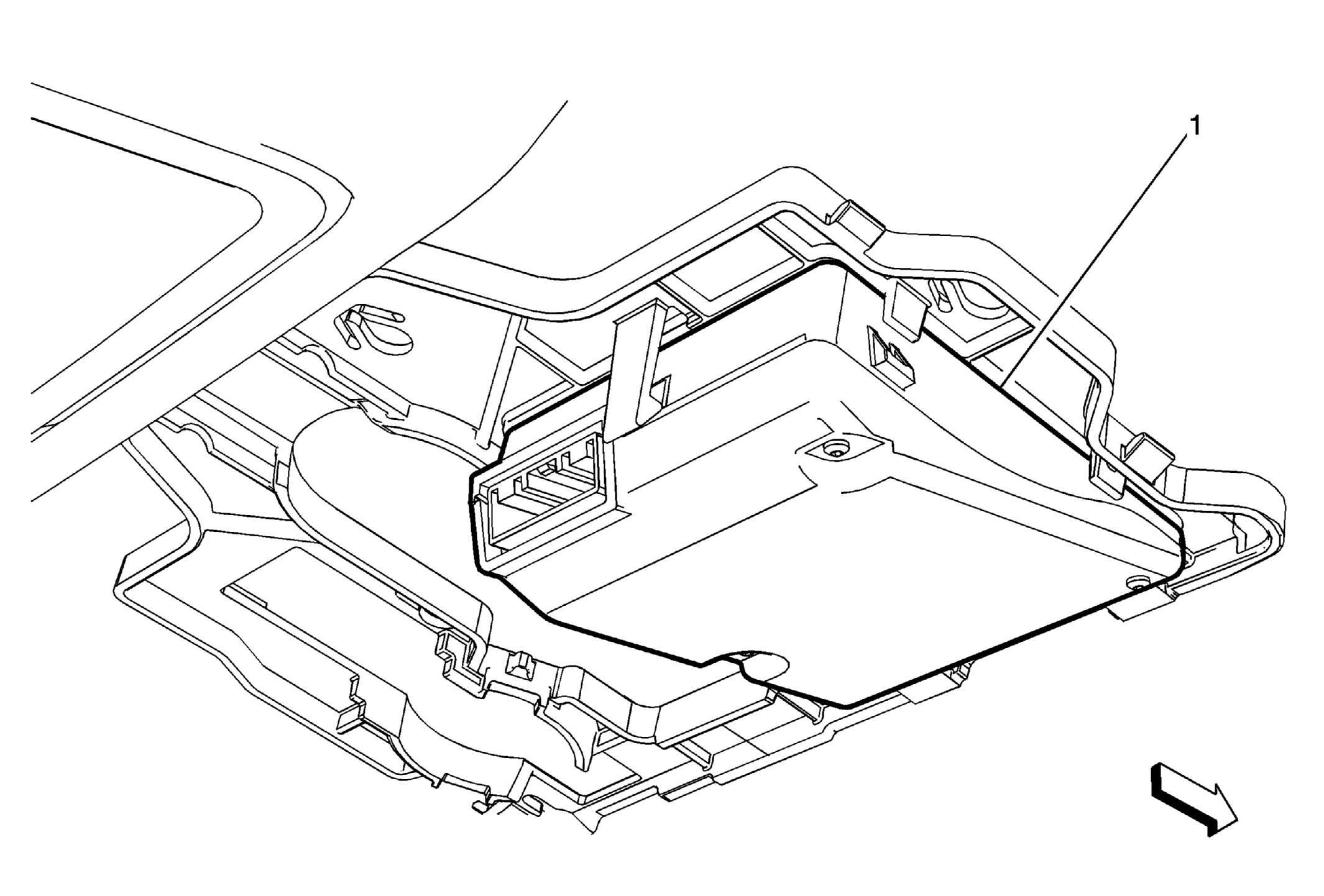

Fig 1: Front View Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the inside rearview mirror mount plate cover. Refer to Inside Rearview Mirror Mount Plate Cover Replacement .
1	Front View Camera Procedure Disconnect the electrical connector. Pull on the upper tab of the camera bracket upward. While holding the camera, slide the two bottom tabs out. After replacement of the front view camera, program the front view camera. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the inside rearview mirror mount plate cover. Refer to Inside Rearview Mirror Mount Plate Cover Replacement .

Front View Camera

Procedure

Disconnect the electrical connector.
Pull on the upper tab of the camera bracket upward.
While holding the camera, slide the two bottom tabs out.
After replacement of the front view camera, program the front view camera. Refer to Control Module References .
