Information Center Telltale Assembly Replacement

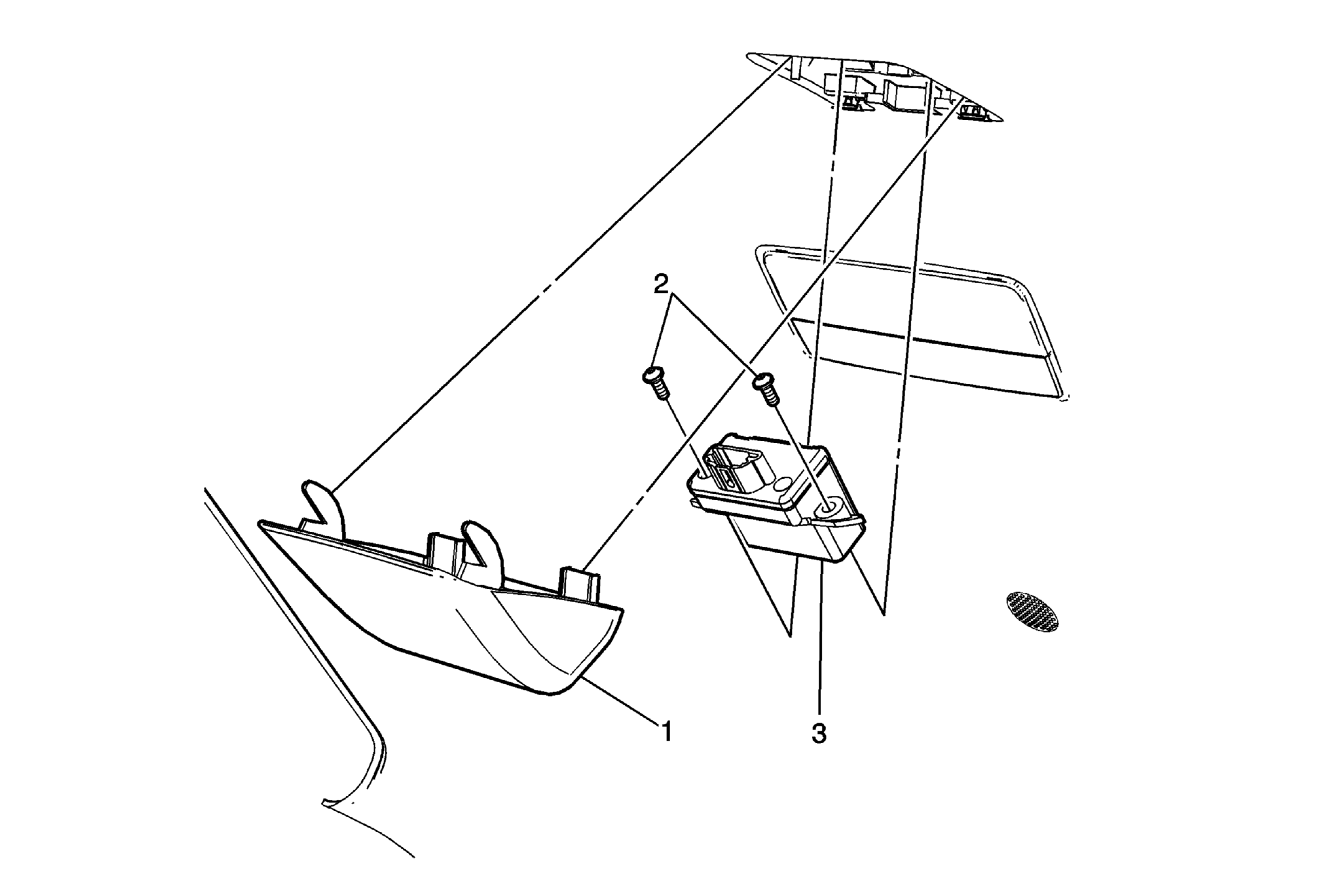

Fig 1: Information Center Telltale Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Information Center Telltale Bezel
2	Information Center Telltale Assembly Screws (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  2 N.m (18 lb in)
3	Information Center Telltale Assembly Procedure  Disconnect the electrical connector.
