Installation Procedure
- Install the EBCM, if removed. Refer to Electronic Brake Control Module Replacement .

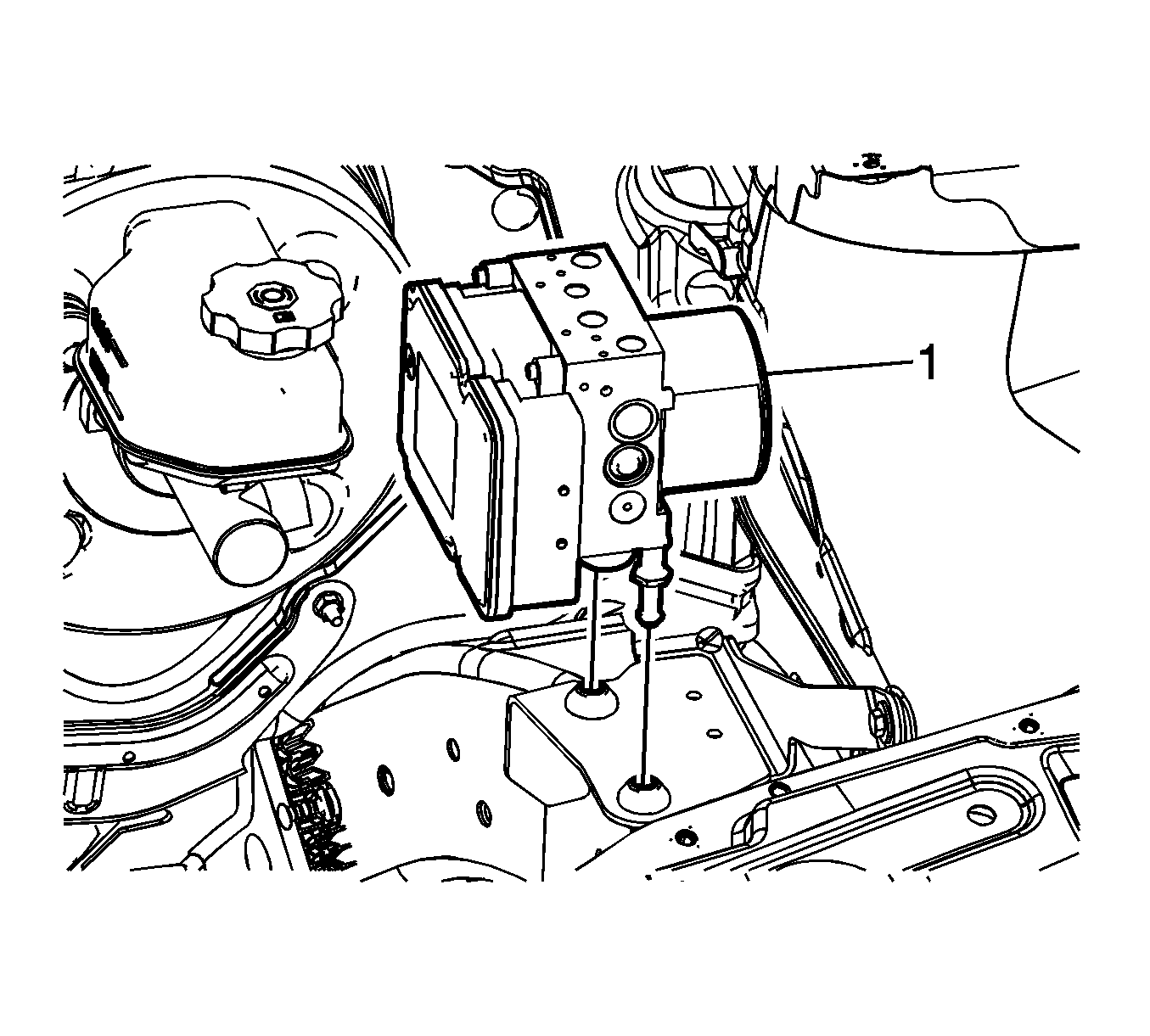

- Install the BPMV assembly (1) to the bracket.

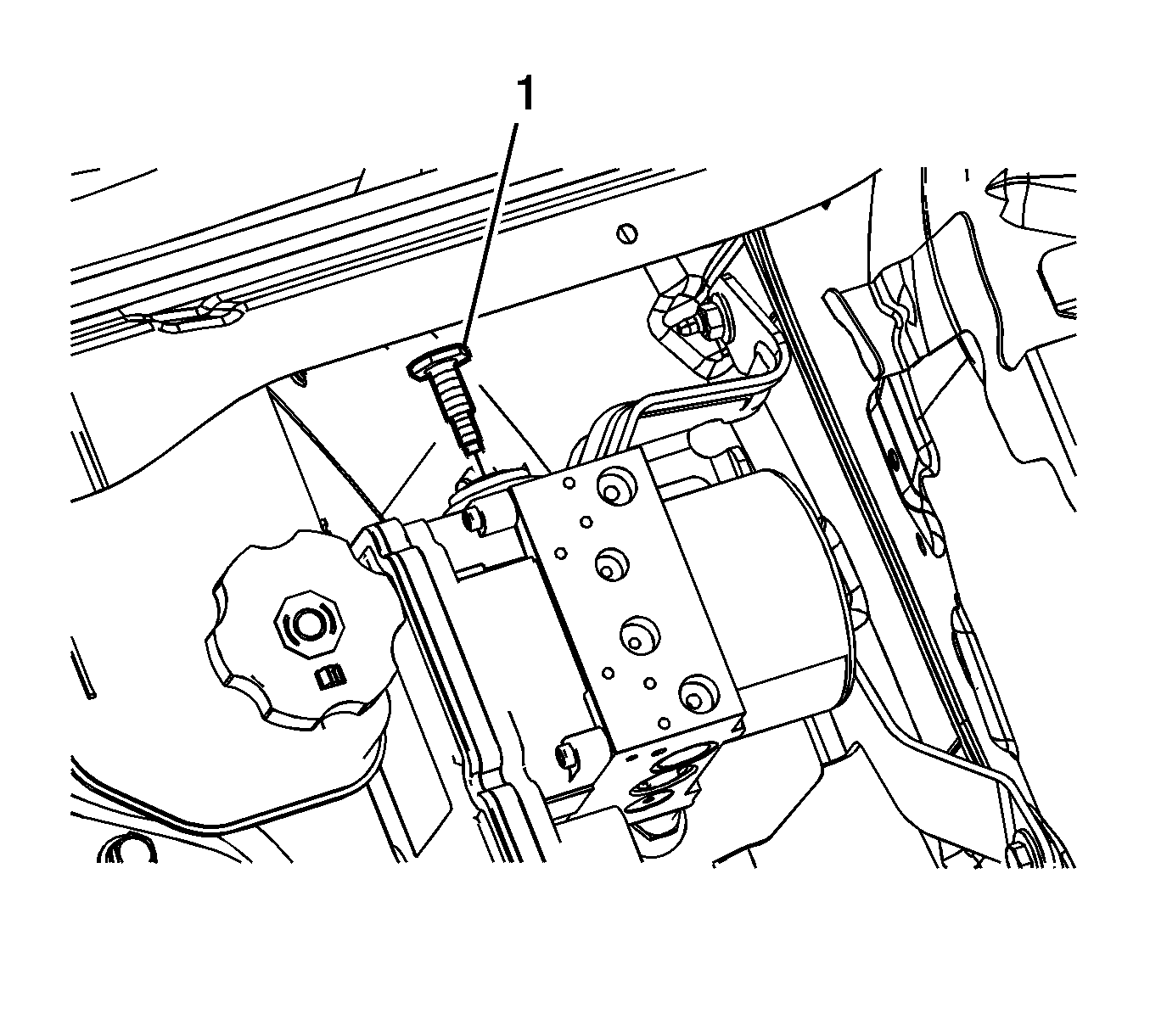

- Install the BPMV bolt (1) and tighten to 10 N.m (89 lb in).

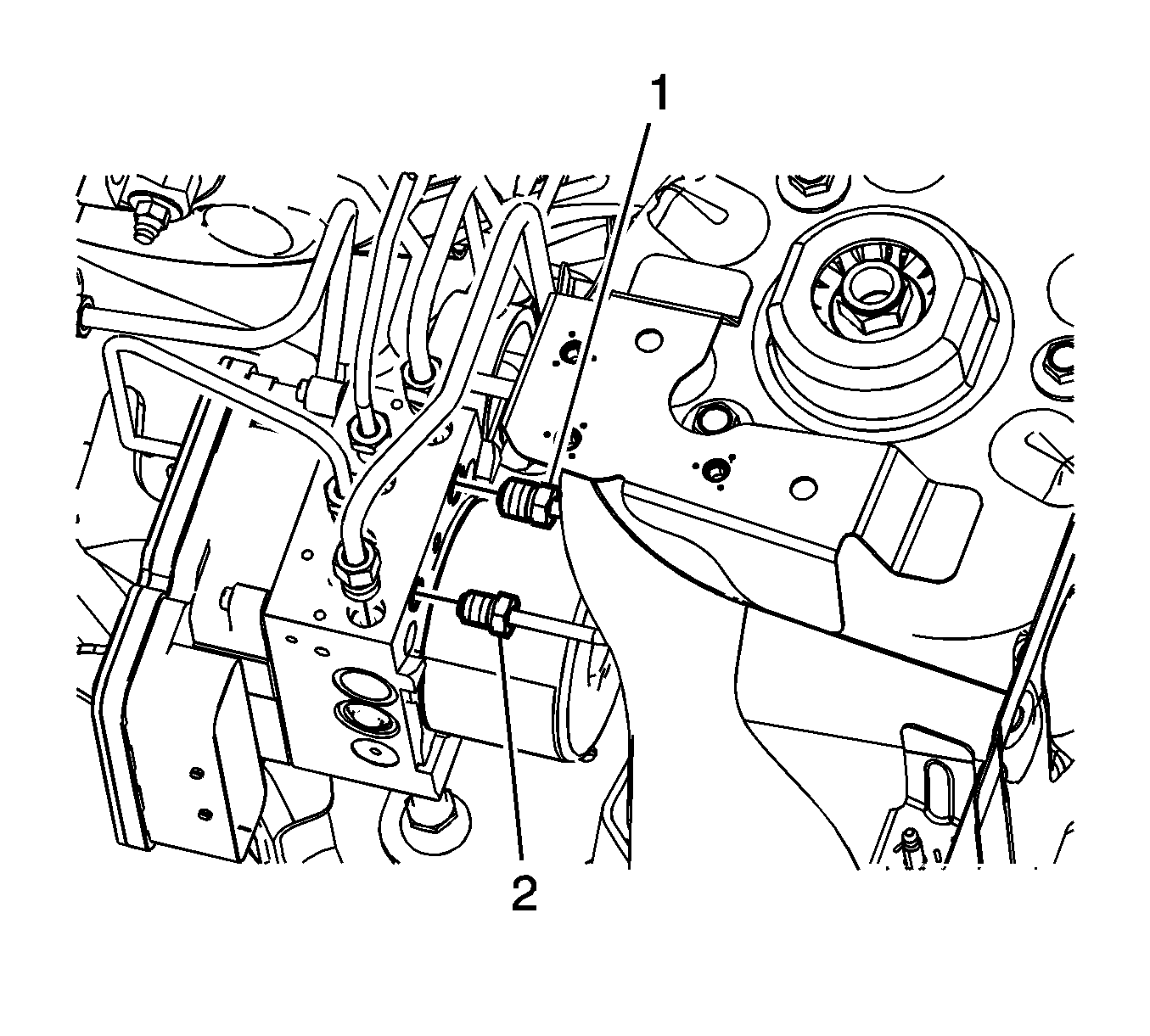

- Connect the left rear brake pipe fitting (1) to the BPMV and tighten to 21 N.m (16 lb ft).
- Connect the right rear brake pipe fitting (2) to the BPMV and tighten to 21 N.m (16 lb ft).

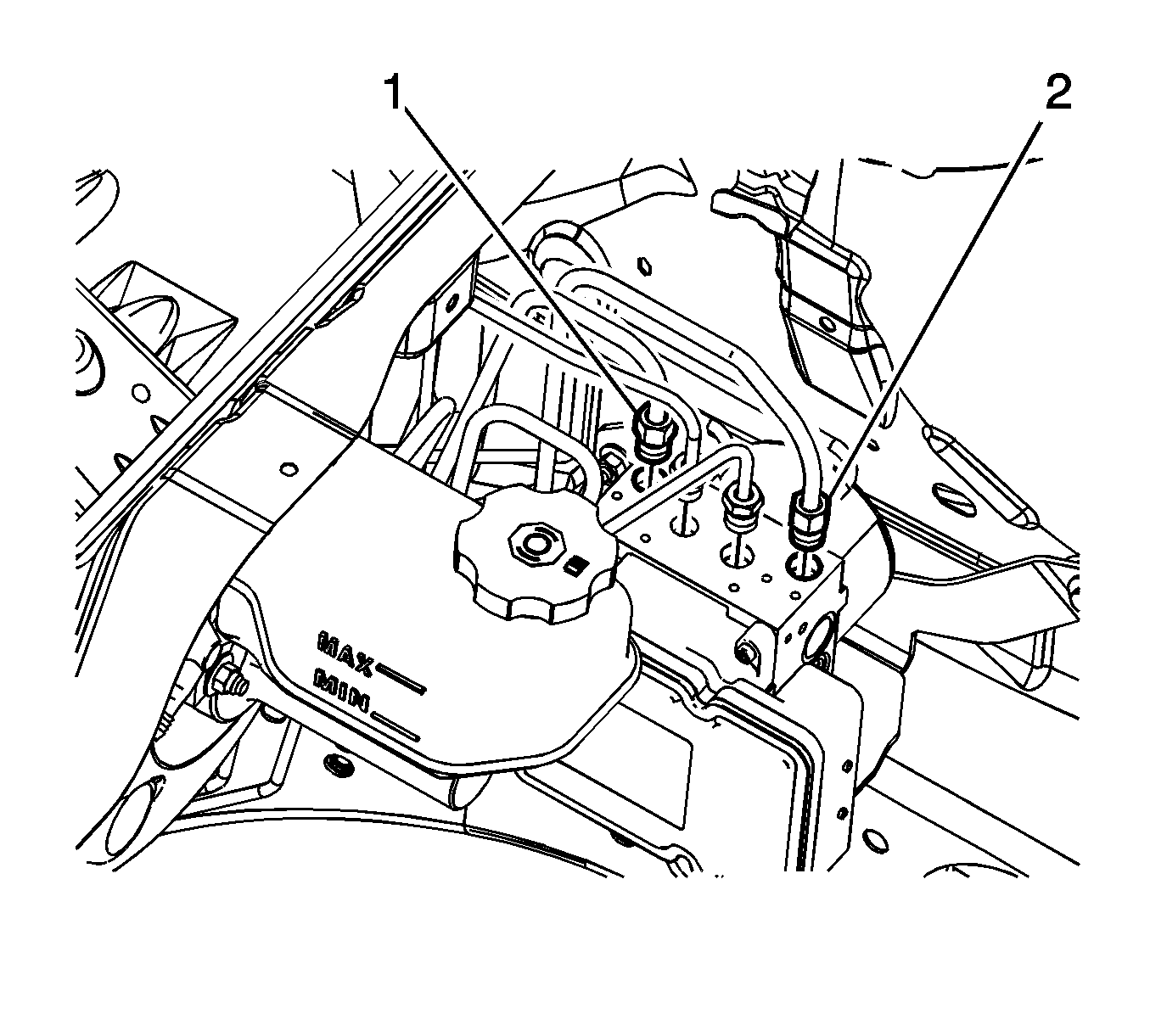

- Connect the master cylinder primary brake pipe fitting (1) to the BPMV and tighten to 21 N.m (16 lb ft).
- Connect the master cylinder secondary brake pipe fitting (2) to the BPMV and tighten to 21 N.m (16 lb ft).

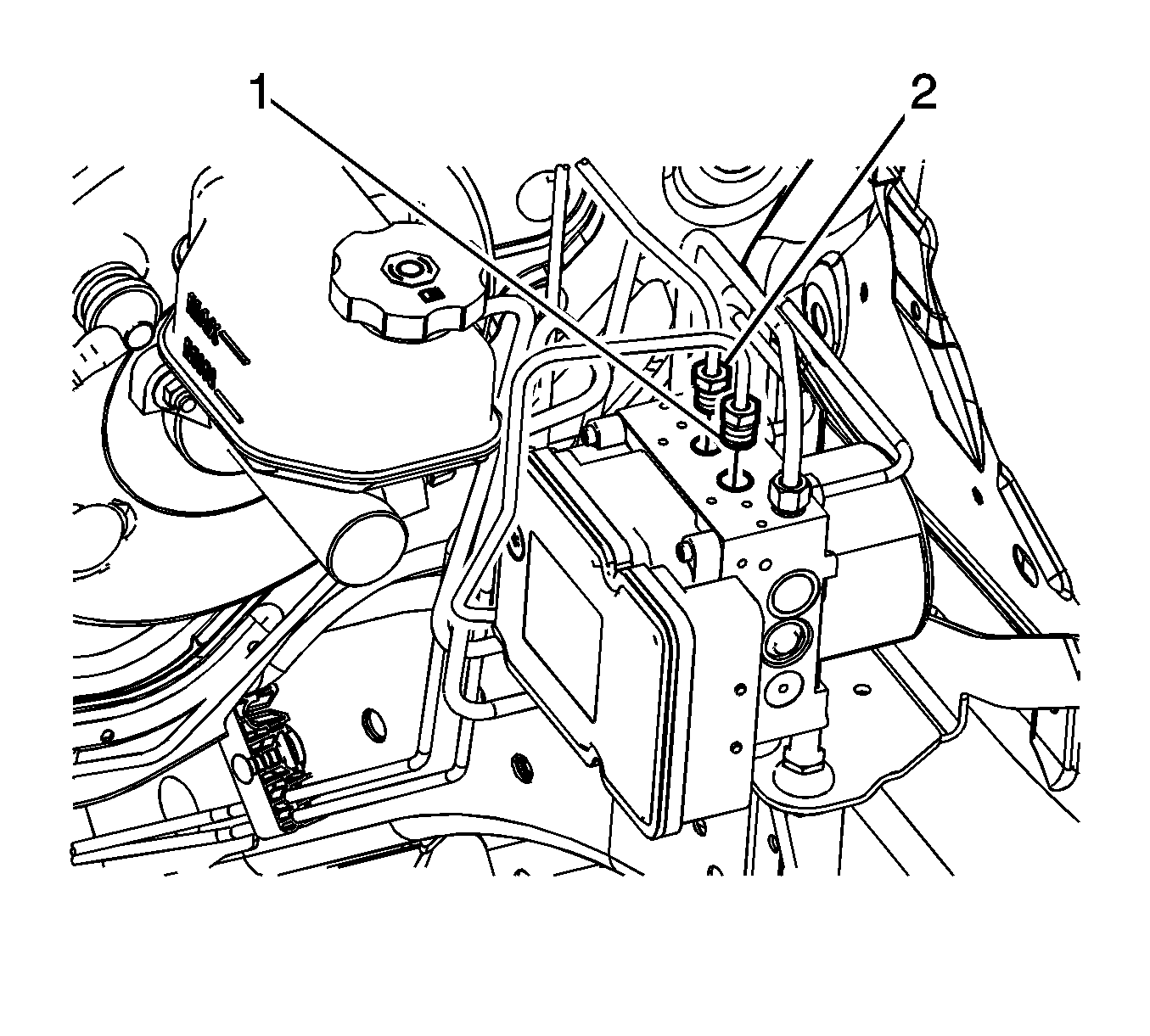

- Connect the left front brake pipe fitting (1) to the BPMV and tighten to 21 N.m (16 lb ft).
- Connect the right front brake pipe fitting (2) to the BPMV and tighten to 21 N.m (16 lb ft).
- Connect the EBCM electrical connector.
- Install the accessory wiring junction block. Refer to Accessory Wiring Junction Block Replacement .
- Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual)Hydraulic Brake System Bleeding (Pressure) .
- Turn the ignition switch to the ON position.
- Perform the Diagnostic System Check - Vehicle .
- Observe the brake pedal feel after performing the diagnostic system check. If the pedal now feels spongy, air may have been in, or may have been introduced into the primary circuit.
- If the pedal feels spongy, perform the Antilock Brake System Automated Bleed .
CAUTION:
Refer to Fastener Caution .
