Automatic Transmission Electronic Components

Automatic Transmission Electronic Components

Items
1. Q8 Control Solenoid Valve Assembly (MH7 or MHC) Q8 Control Solenoid Valve Assembly (LEA)
2. B15 Transmission Internal Mode Switch
3. B14A Transmission Output Shaft Speed Sensor
4. B14C Transmission Input Shaft Speed Sensor

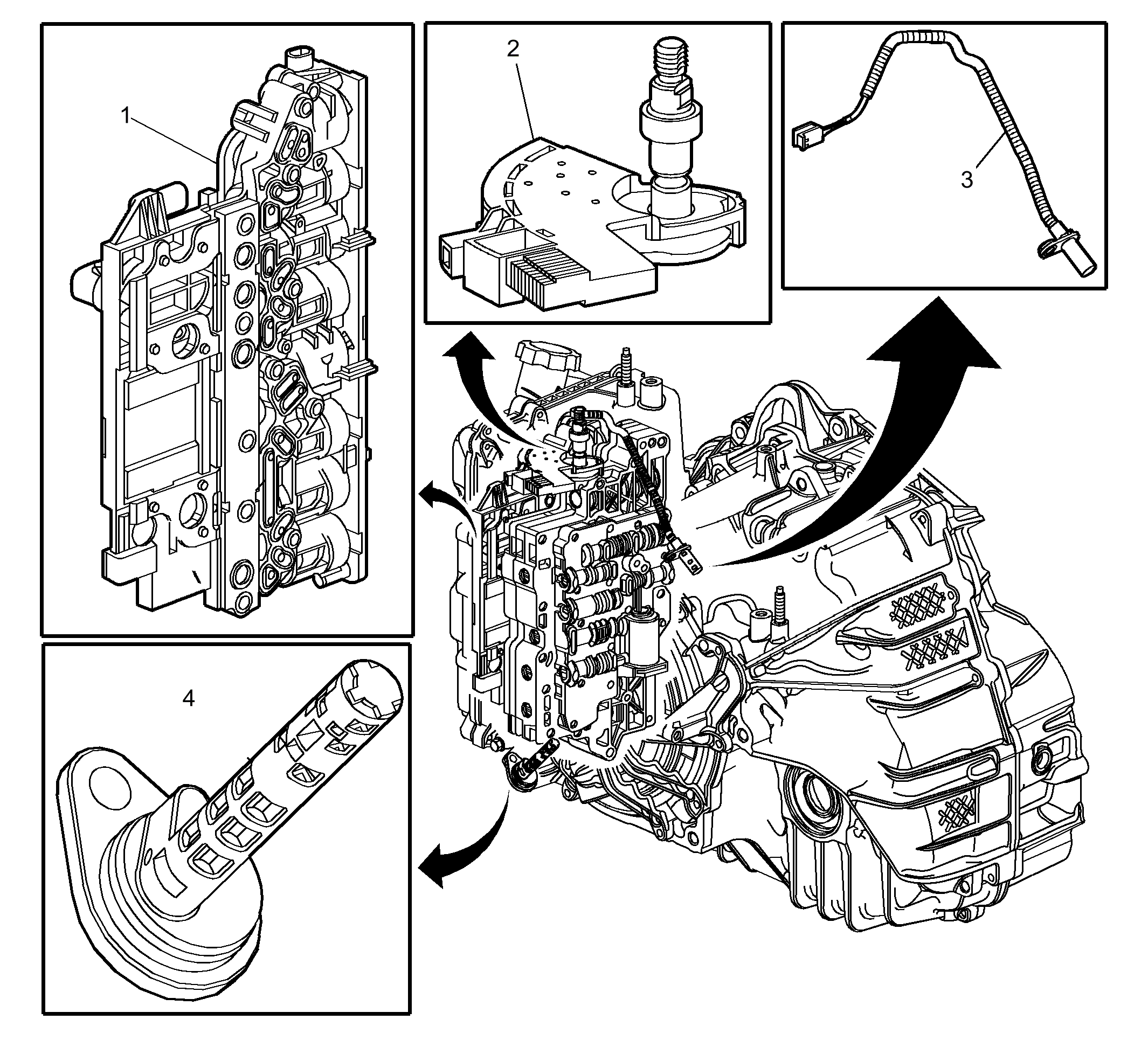

Fig 1: Automatic Transmission Electronic Components
GM2910217Courtesy of GENERAL MOTORS COMPANY
