Exhaust System Components (LFX)

Exhaust System Components (LFX)

Items
1. B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LFX)
2. B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LFX)
3. B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LFX)
4. B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LFX)

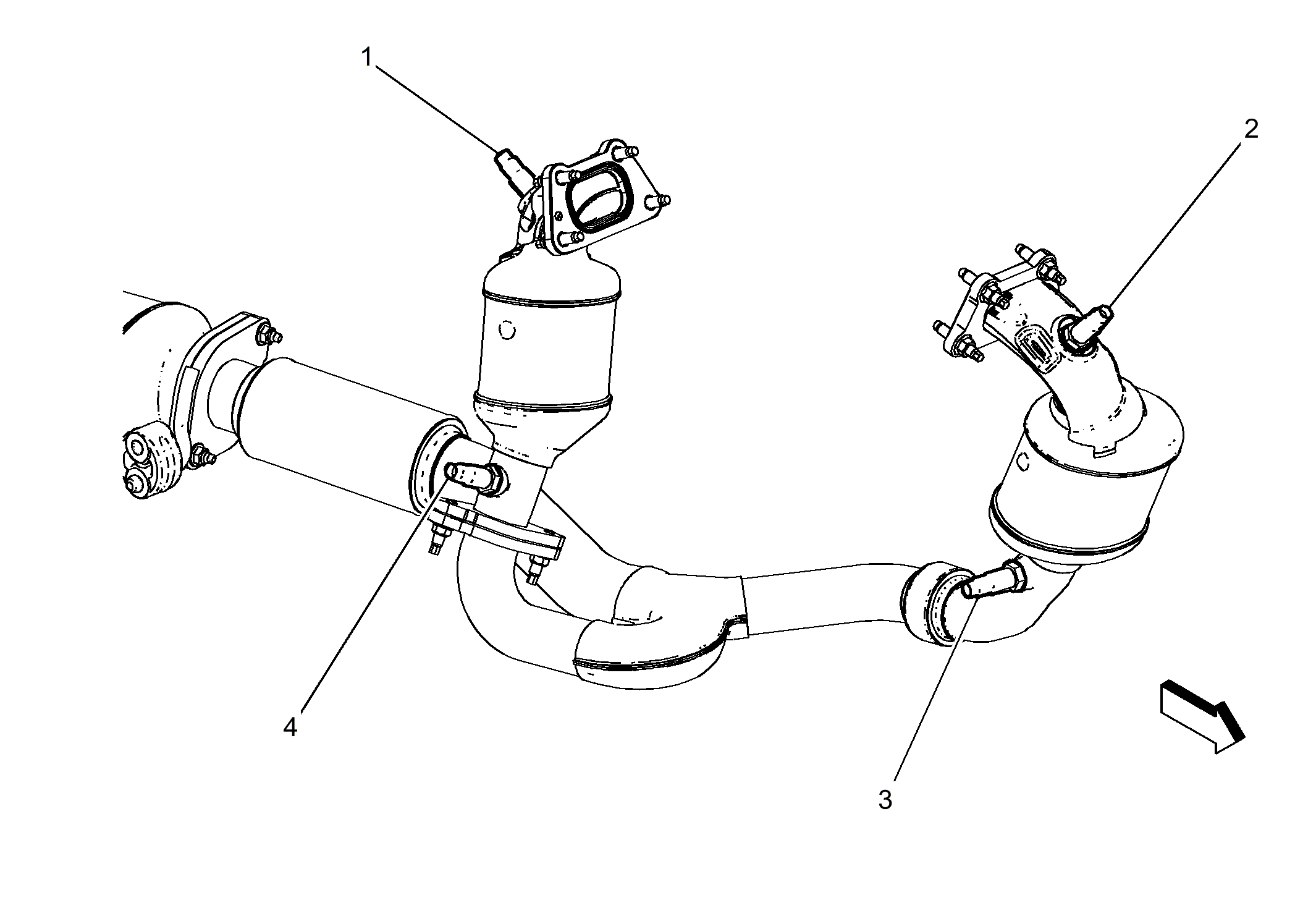

Fig 1: Exhaust System Components (LFX)
GM2910215Courtesy of GENERAL MOTORS COMPANY
