Front Engine Components (LEA 2 of 2)

Front Engine Components (LEA 2 of 2)

Items
1. B47B Fuel Rail Pressure Sensor (LEA)
2. B74 Manifold Absolute Pressure Sensor (LEA) B74 Manifold Absolute Pressure Sensor
3. Q17D Fuel Injector 4 (LEA)
4. Q17C Fuel Injector 3 (LEA)
5. Q17B Fuel Injector 2 (LEA)
6. Q17A Fuel Injector 1 (LEA)

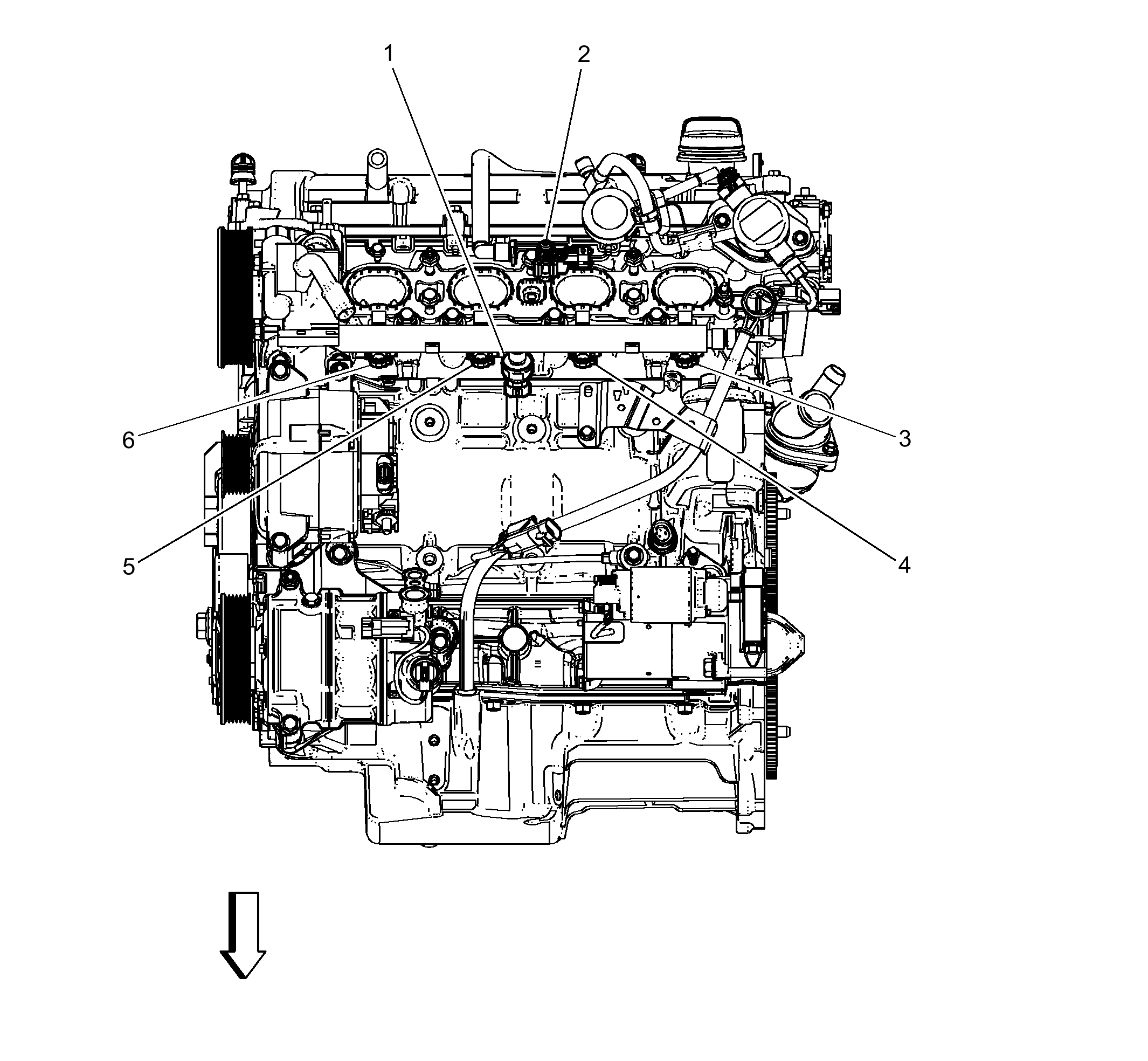

Fig 1: Front Engine Components (LEA 2 of 2)
GM2910193Courtesy of GENERAL MOTORS COMPANY
