Left Front Engine Components (LFX)

Left Front Engine Components (LFX)

Items
1. T8B Ignition Coil 2 (LEA) T8B Ignition Coil 2
2. T8D Ignition Coil 4 (LEA) T8D Ignition Coil 4
3. T8F Ignition Coil 6 (LFX)
4. G18 High Pressure Fuel Pump (LEA) G18 High Pressure Fuel Pump
5. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LEA)
6. M64 Starter Motor (LEA) M64 Starter Motor X1M64 Starter Motor X2 (LFX Generator Harness)M64 Starter Motor X2 (LFX Positive Battery Cable)
7. B68B Knock Sensor 2 (LFX)
8. B37 Engine Oil Pressure Switch (LEA) B37 Engine Oil Pressure Switch (LEA)
9. B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
10. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch
11. G13 Generator G13 Generator X1G13 Generator X2

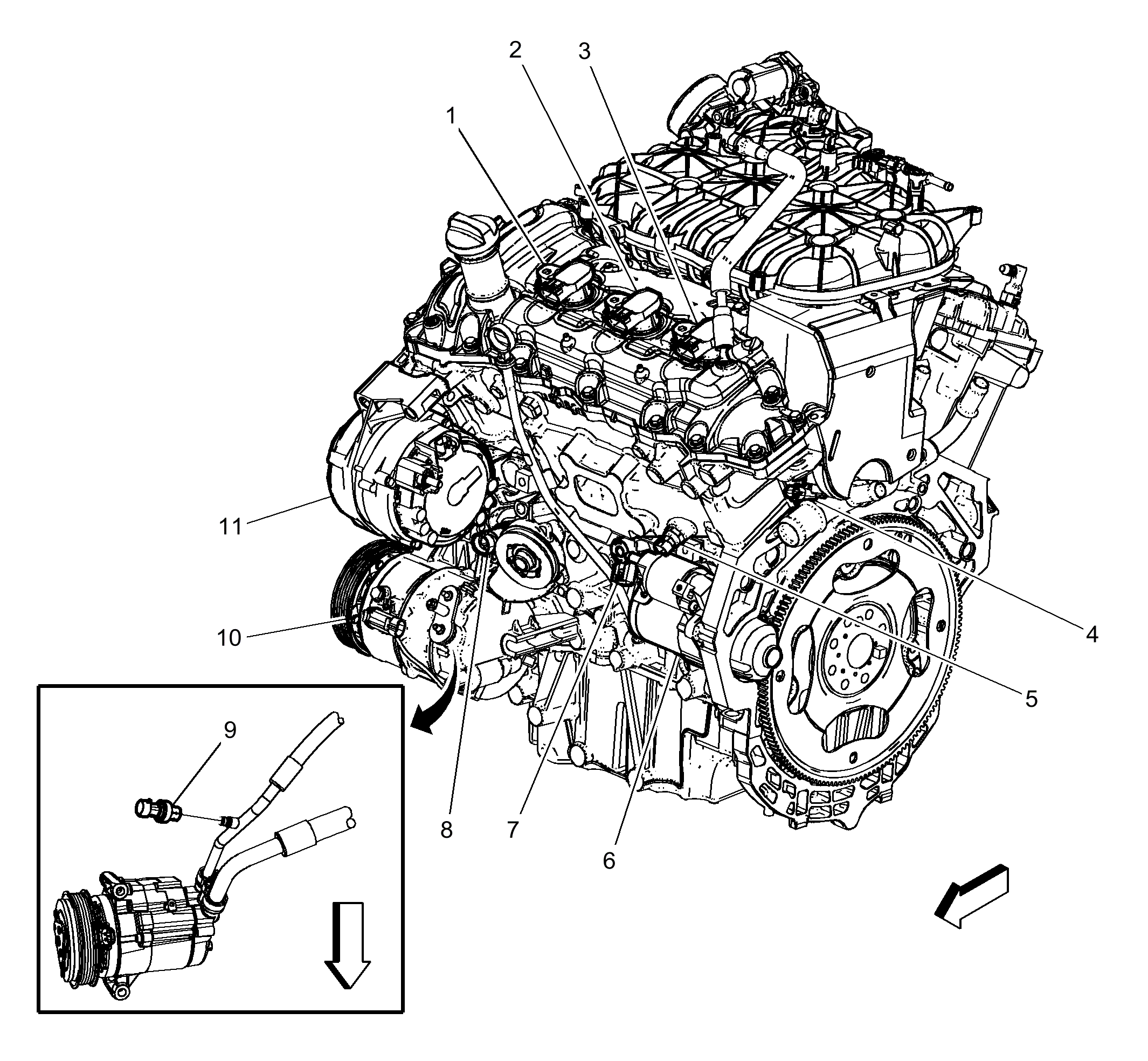

Fig 1: Left Front Engine Components (LFX)
GM2910194Courtesy of GENERAL MOTORS COMPANY
