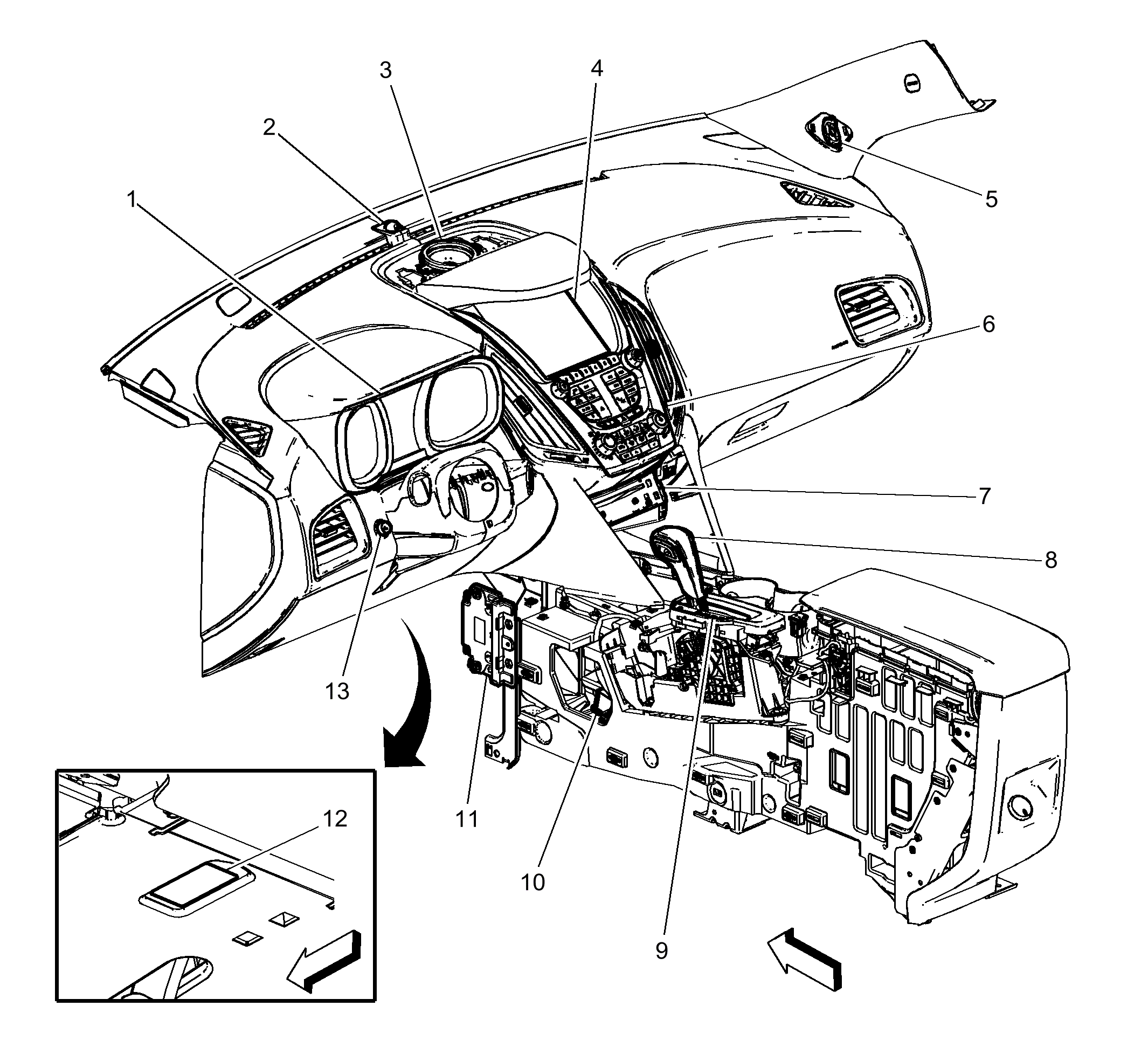

Instrument Panel Components (1 of 2)
Instrument Panel Components (1 of 2)
| Items |
|---|
| 1. P16 Instrument Cluster P16 Instrument Cluster |
| 2. B10B Ambient Light/Sunload Sensor (C68) B10B Ambient Light/Sunload Sensor |
| 3. P19B Speaker - Center Instrument Panel (UZ8) P19B Speaker - Center Instrument Panel |
| 4. P17 Info Display Module P17 Info Display Module |
| 5. P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter |
| 6. A20 Radio/HVAC Controls A20 Radio/HVAC Controls |
| 7. A11 Radio A11 Radio X1A11 Radio X3A11 Radio X4 |
| 8. S3 Transmission Shift Lever S3 Transmission Shift Lever |
| 9. P2 Transmission Shift Lever Position Indicator P2 Transmission Shift Lever Position Indicator |
| 10. T11 Multimedia Player Interface Module (KTA) |
| 11. K108 Active Noise Cancellation Module (VQN) K108 Active Noise Cancellation Module |
| 12. E8J Instrument Panel Courtesy Lamp - Left (LTZ or SLT) E8J Instrument Panel Courtesy Lamp - Left |
| 13. S36 Instrument Panel Dimmer Switch S36 Instrument Panel Dimmer Switch |
