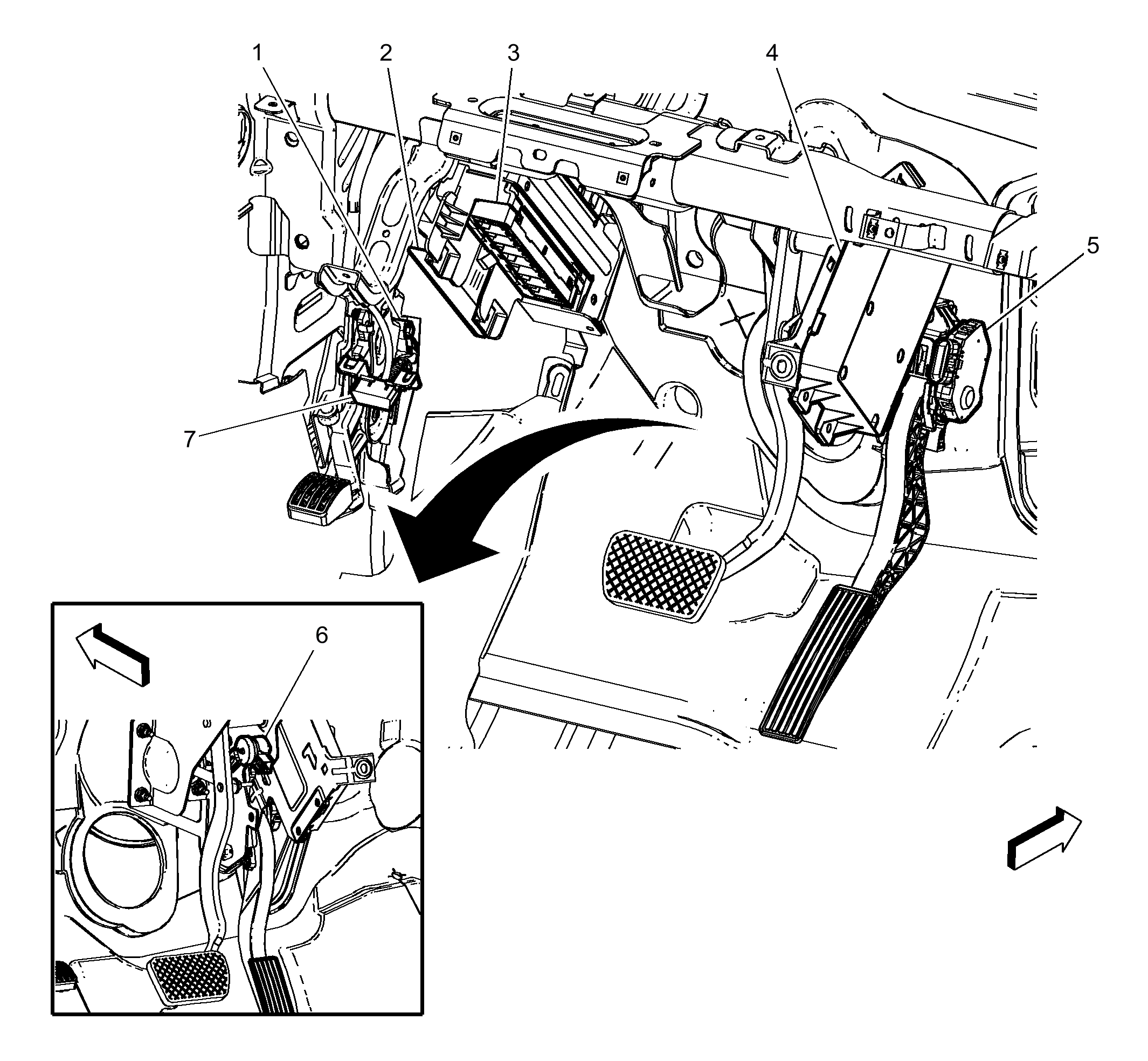

Lower Left Instrument Panel Components
Lower Left Instrument Panel Components
| Items |
|---|
| 1. B80 Park Brake Switch B80 Park Brake Switch |
| 2. T3 Audio Amplifier (UZ8) T3 Audio Amplifier X1 (-UZ8)T3 Audio Amplifier X1T3 Audio Amplifier X2 (-UZ8)T3 Audio Amplifier X2T3 Audio Amplifier X3T3 Audio Amplifier X3 (UZ8) |
| 3. K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2 |
| 4. K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1K73 Telematics Communication Interface Control Module X2 |
| 5. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor |
| 6. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor |
| 7. X84 Data Link Connector X84 Data Link Connector |
