Lower Right of the Instrument Panel Components

Lower Right of the Instrument Panel Components

Items
1. K33 HVAC Control Module K33 HVAC Control Module X1K33 HVAC Control Module X2K33 HVAC Control Module X3
2. F101 Passenger Instrument Panel Air Bag
3. X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel

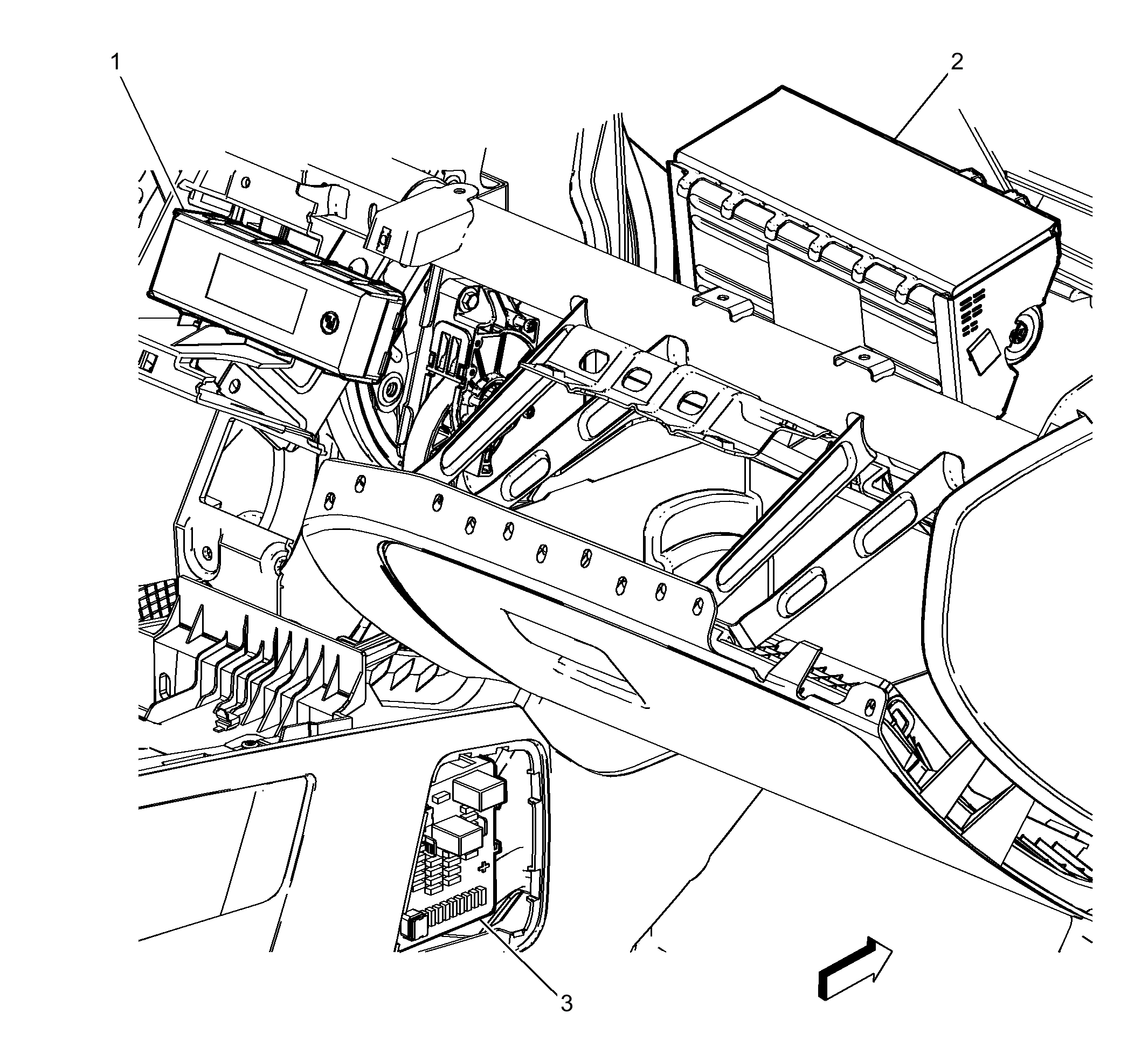

Fig 1: Lower Right of the Instrument Panel Components
GM2910227Courtesy of GENERAL MOTORS COMPANY
