Steering Column Components

Steering Column Components

Items
1. S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch
2. X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X2X85 Steering Wheel Air Bag Coil X3
3. S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch
4. S39 Ignition Switch S39 Ignition Switch
5. M93 Key Capture Solenoid Actuator M93 Key Capture Solenoid Actuator
6. B101 Immobilizer Antenna B101 Immobilizer Antenna
7. B99 Steering Wheel Angle Sensor B99 Steering Wheel Angle Sensor

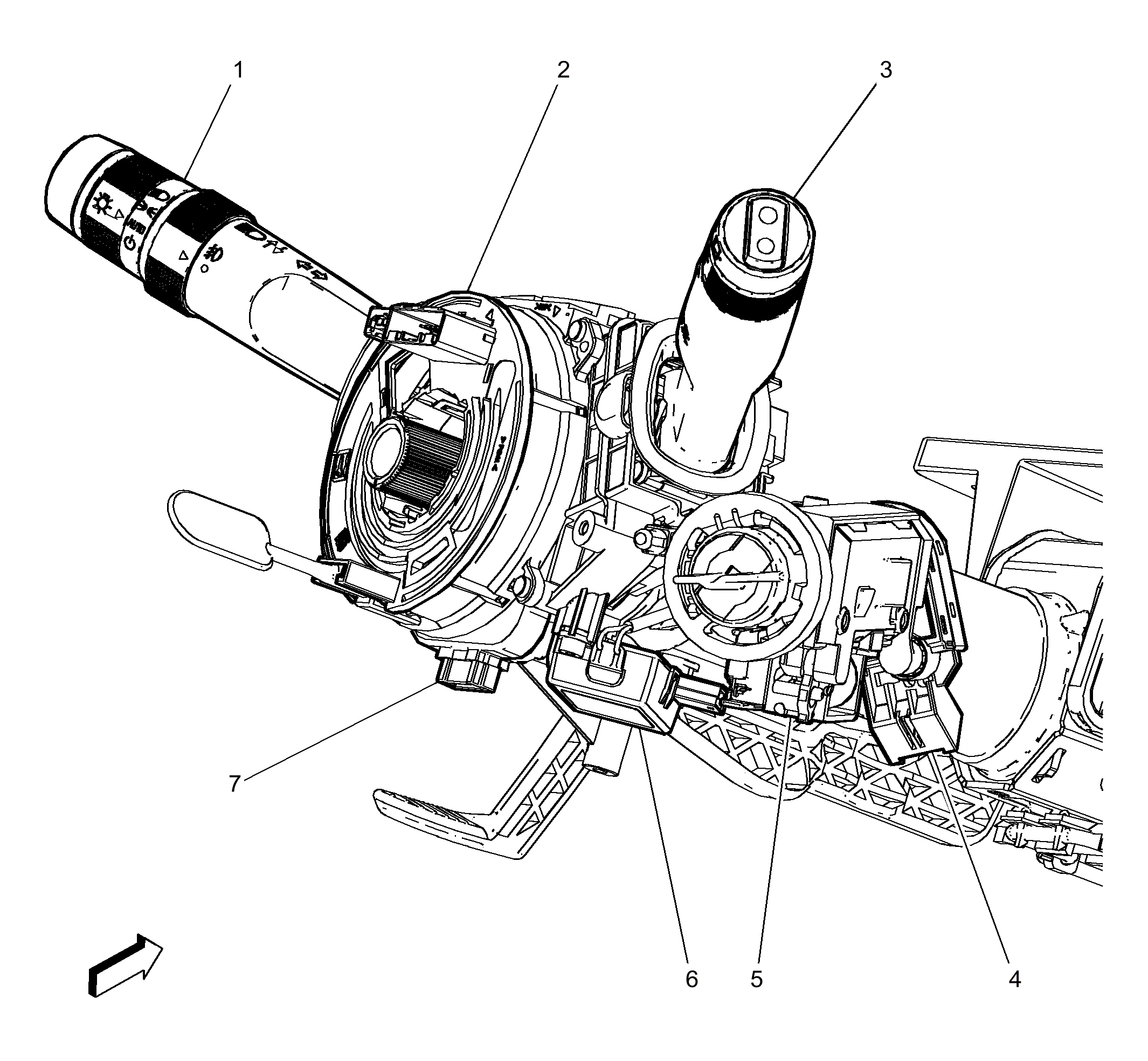

Fig 1: Steering Column Components
GM2910248Courtesy of GENERAL MOTORS COMPANY
