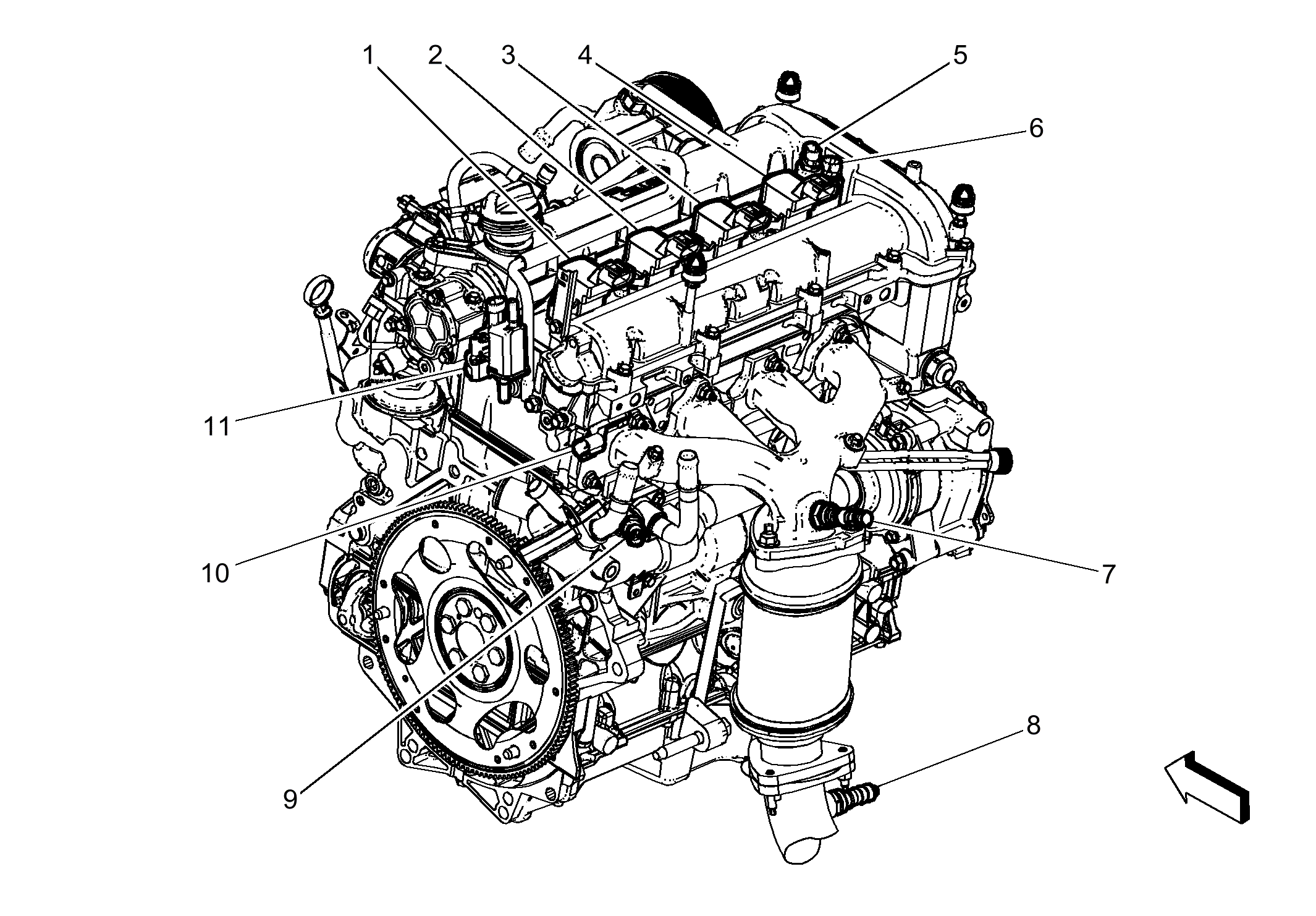

Left Rear Engine Components (LEA)
Left Rear Engine Components (LEA)
| Items |
|---|
| 1. T8D Ignition Coil 4 (LEA) T8D Ignition Coil 4 |
| 2. T8C Ignition Coil 3 (LEA) T8C Ignition Coil 3 |
| 3. T8B Ignition Coil 2 (LEA) T8B Ignition Coil 2 |
| 4. T8A Ignition Coil 1 (LEA) T8A Ignition Coil 1 |
| 5. Q6F Camshaft Position Actuator Solenoid Valve - Intake (LEA) Q6F Camshaft Position Actuator Solenoid Valve - Intake (LEA) |
| 6. Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LEA) Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LEA) |
| 7. B52A Heated Oxygen Sensor 1 (LEA) B52A Heated Oxygen Sensor 1 |
| 8. B52B Heated Oxygen Sensor 2 (LEA) B52B Heated Oxygen Sensor 2 |
| 9. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LEA) |
| 10. B23E Camshaft Position Sensor - Exhaust (LEA) B23E Camshaft Position Sensor - Exhaust |
| 11. Q12 Evaporative Emission Purge Solenoid Valve (LEA) Q12 Evaporative Emission Purge Solenoid Valve (LEA) |
