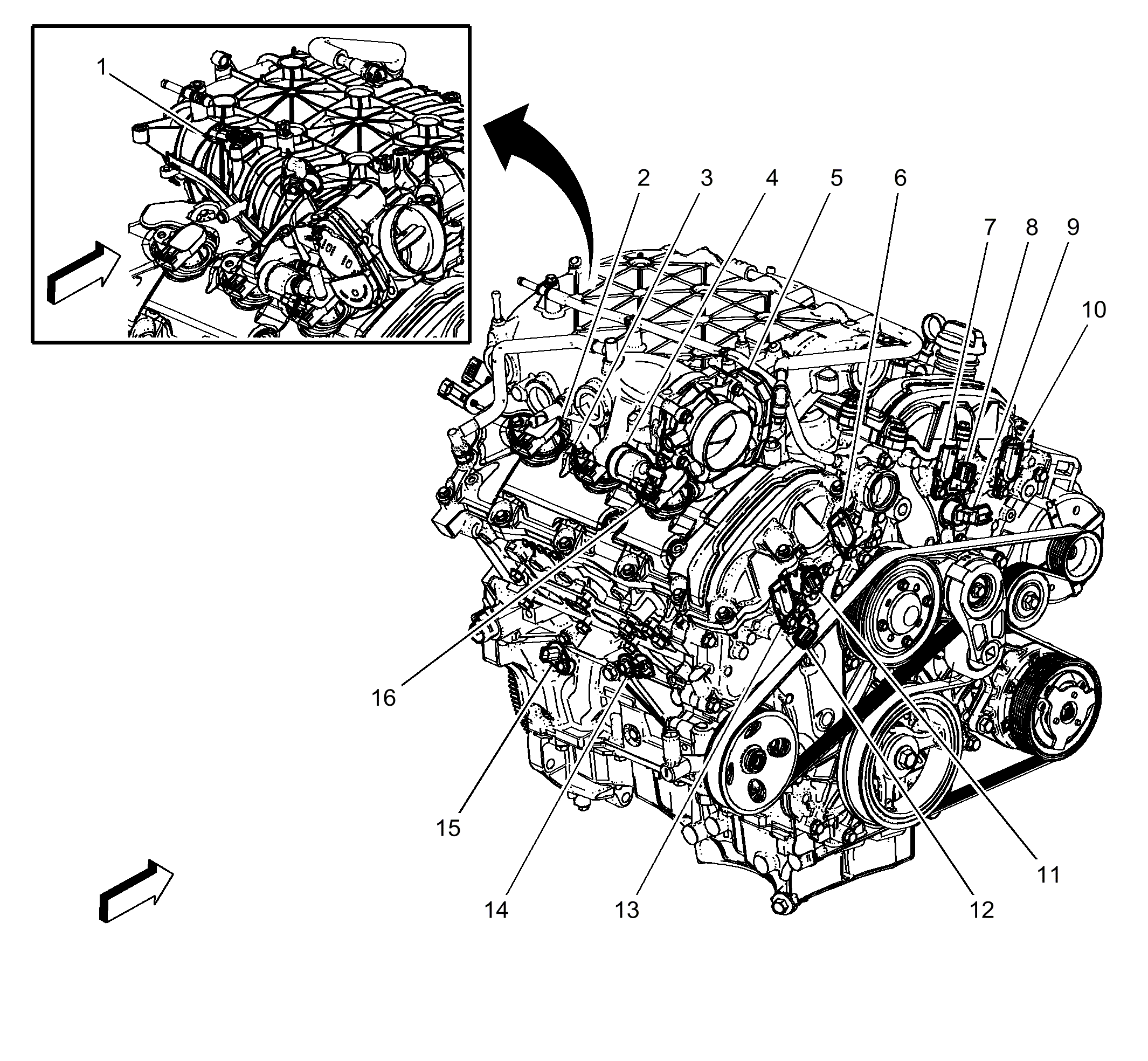

Right Rear Engine Components (LFX)
Right Rear Engine Components (LFX)
| Items |
|---|
| 1. B74 Manifold Absolute Pressure Sensor (LEA) B74 Manifold Absolute Pressure Sensor |
| 2. T8E Ignition Coil 5 (LFX) |
| 3. T8C Ignition Coil 3 (LEA) T8C Ignition Coil 3 |
| 4. Q12 Evaporative Emission Purge Solenoid Valve (LEA) Q12 Evaporative Emission Purge Solenoid Valve (LEA) |
| 5. Q38 Throttle Body (LEA) Q38 Throttle Body |
| 6. B23B Camshaft Position Sensor - Bank 1 Intake (LFX) |
| 7. B23D Camshaft Position Sensor - Bank 2 Intake (LFX) |
| 8. Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LFX) |
| 9. Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LFX) |
| 10. B23C Camshaft Position Sensor - Bank 2 Exhaust (LFX) |
| 11. Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LFX) |
| 12. Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LFX) |
| 13. B23A Camshaft Position Sensor - Bank 1 Exhaust (LFX) |
| 14. B68A Knock Sensor 1 (LFX) |
| 15. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor |
| 16. T8A Ignition Coil 1 (LEA) T8A Ignition Coil 1 |
