Turn Signal Multifunction Switch Replacement

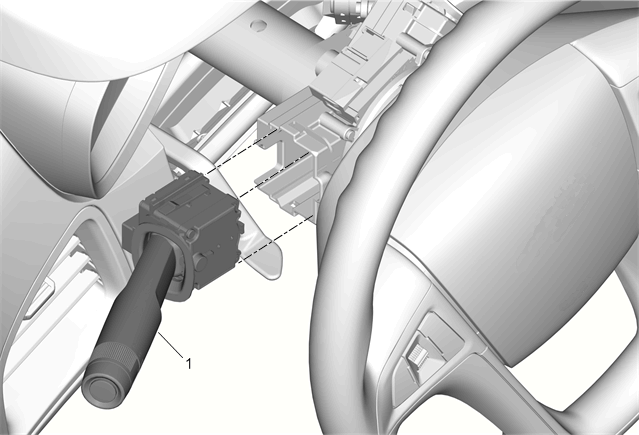

Fig 1: Turn Signal Multifunction Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Steering Column Shroud Replacement
1	Turn Signal Multifunction Switch Procedure Disconnect the electrical connector. Release the retaining tabs and remove the turn signal multifunction switch from the turn signal switch bracket.

Callout

Component Name

Turn Signal Multifunction Switch

Procedure

Disconnect the electrical connector.
Release the retaining tabs and remove the turn signal multifunction switch from the turn signal switch bracket.
