360 Degree Vision - Module Power, Ground, Serial Data, and Camera Signals (UVH)
WARNING:
This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

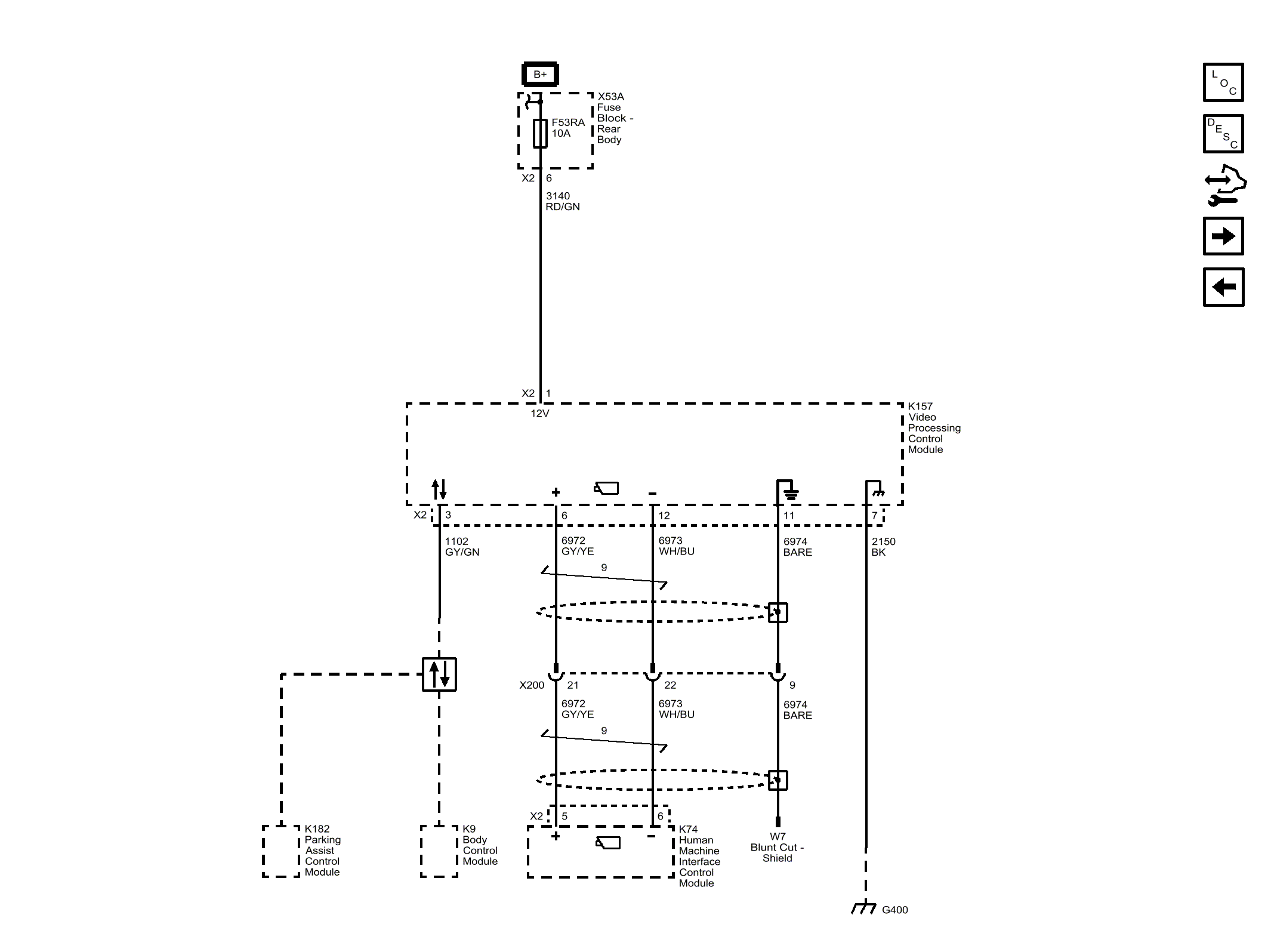

Fig 1: 360 Degree Vision - Module Power, Ground, Serial Data, and Camera Signals (UVH)
Courtesy of GENERAL MOTORS COMPANY
