Section 329 (Object Detection System And Pedestrian Protection System)
>>
Schematic Wiring Diagrams
>>
Object Detection Wiring Schematics
>>
Park Assist - Module Power, Ground, Serial Data and Controls (UD5 or UD7)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Park Assist - Module Power, Ground, Serial Data and Controls (UD5 or UD7)
WARNING:
This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

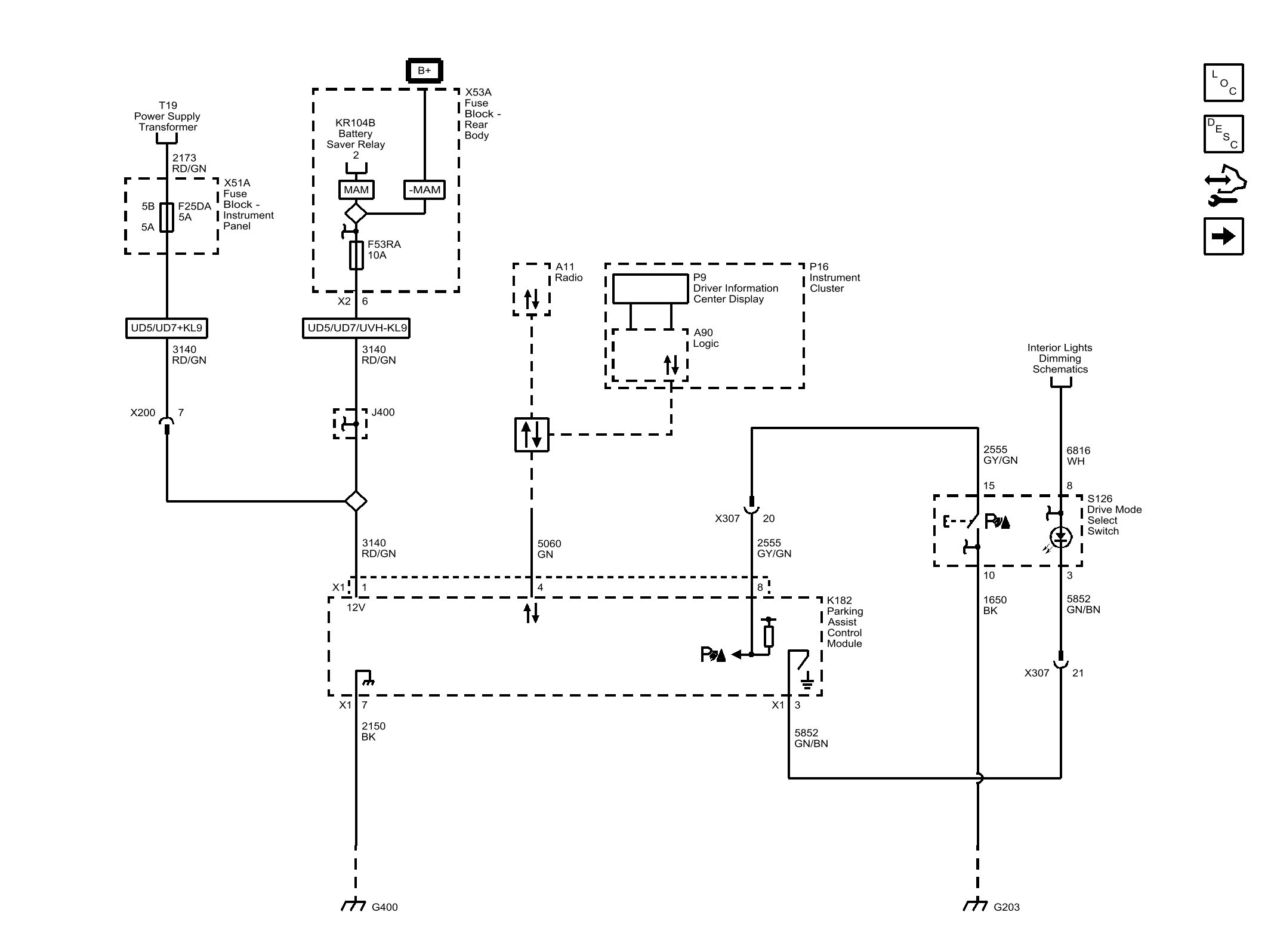

Fig 1: Park Assist - Module Power, Ground, Serial Data and Controls (UD5 or UD7)
Courtesy of GENERAL MOTORS COMPANY
