Rear Closure Hands Free Module Replacement

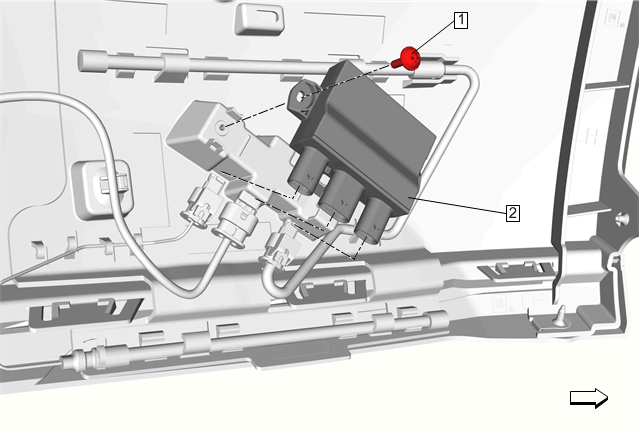

Callout	Component Name
Preliminary Procedure Rear Closure Hands Free Sensor Shield Replacement
1	Rear Closure Hands Free Module Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Closure Hands Free Module Procedure Disconnect all electrical connectors. Release the retaining tab and slide the module to the rear and remove.

Callout

Component Name

Rear Closure Hands Free Module Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Rear Closure Hands Free Module

Procedure
