Installation Procedure

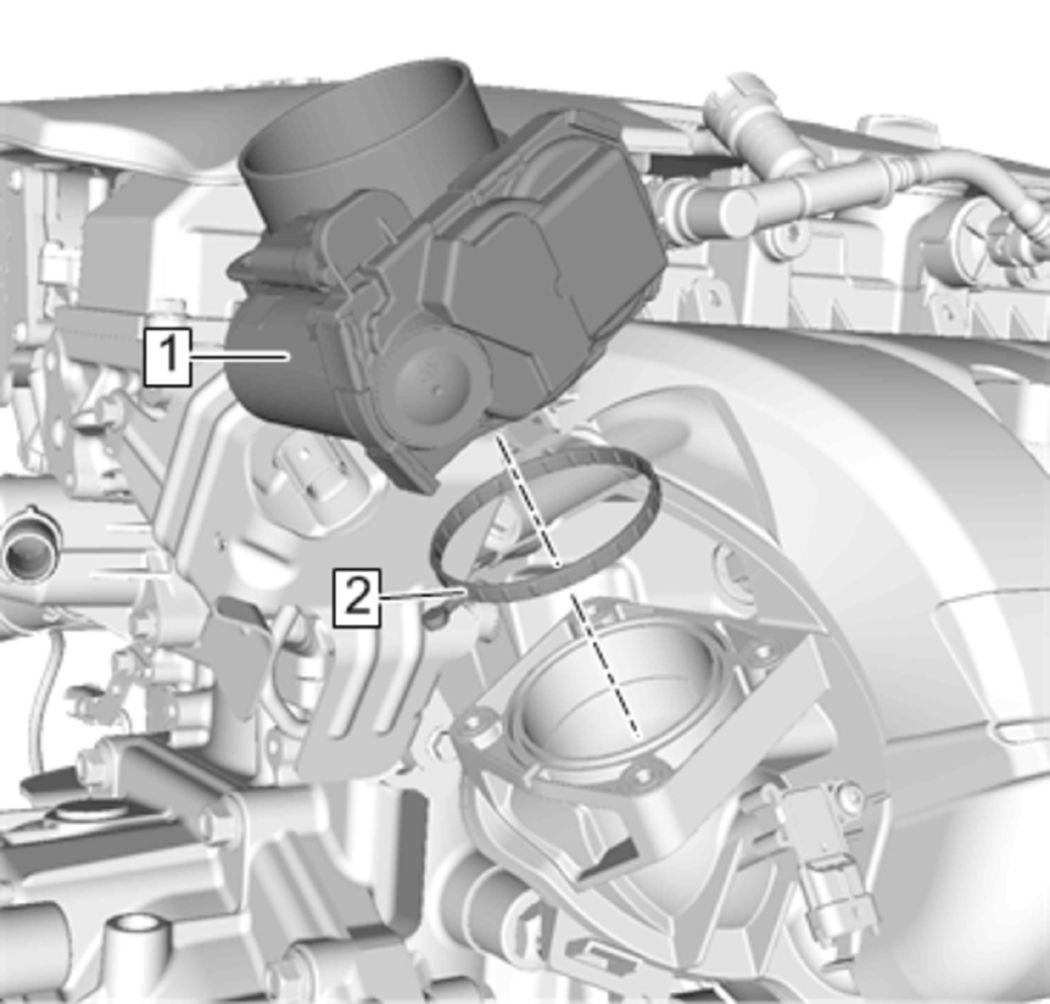

  1. GM4376306

    Throttle Body Seal (2) - Install

  2. Throttle Body (1) - Install

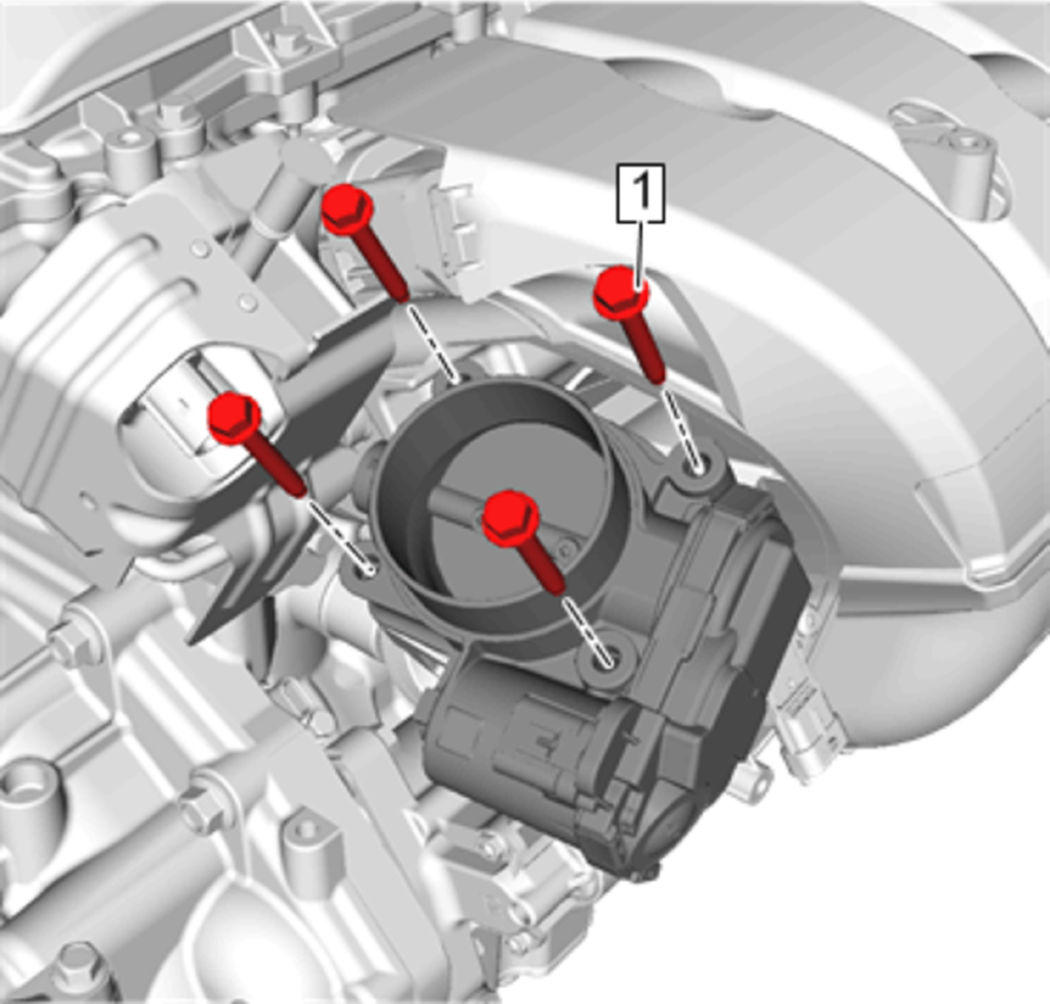

  3. GM4376283
    CAUTION:

    Refer to Fastener Caution .

    Throttle Body Bolt (1) - Install and tighten (Qty: 4) 10 N.m (89 lb in)

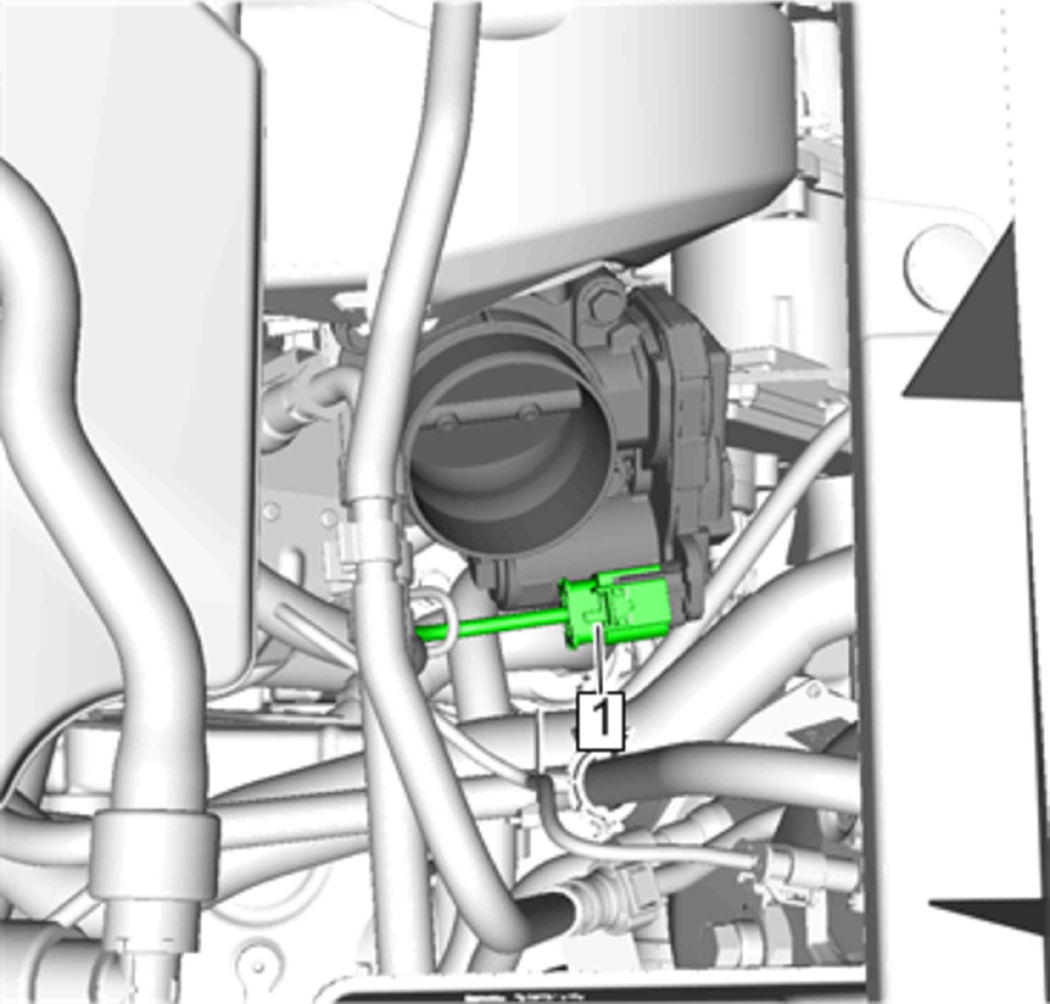

  4. GM4376215

    Electrical Connector (1) - Connect

  5. Air Cleaner Outlet Duct - Install - Air Cleaner Outlet Duct Replacement
  6. Perform throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset
