Antenna Coaxial Cable Replacement - Navigational Signal Splitter to Human Machine Interface Control Module
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

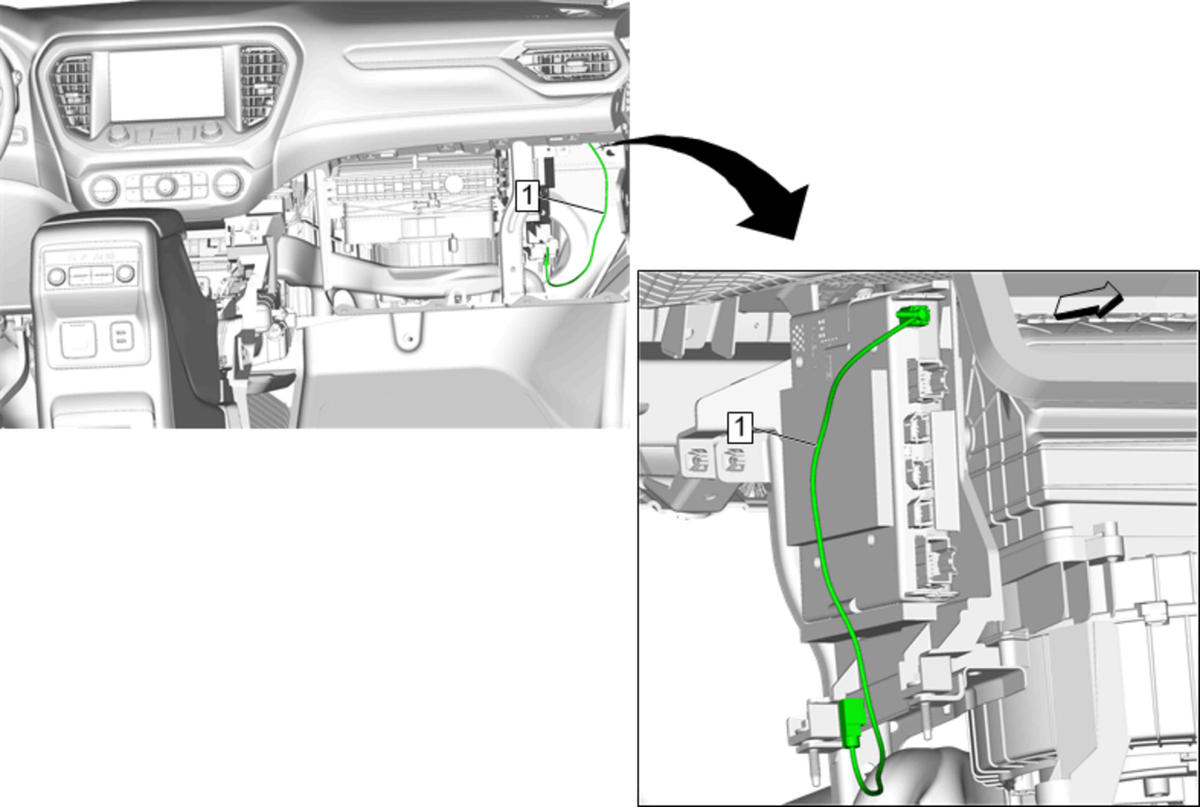

Fig 1: Antenna Coaxial Cable - Navigational Signal Splitter to Human Machine Interface Control Module
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Radio Bracket. Refer to Radio Bracket Replacement |
|
| 1 | Antenna Coaxial Cable - Navigational Signal Splitter to Human Machine Interface Control Module Procedure Disconnect the antenna coaxial cable from the human machine interface control module. |
