Navigation Signal Splitter Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

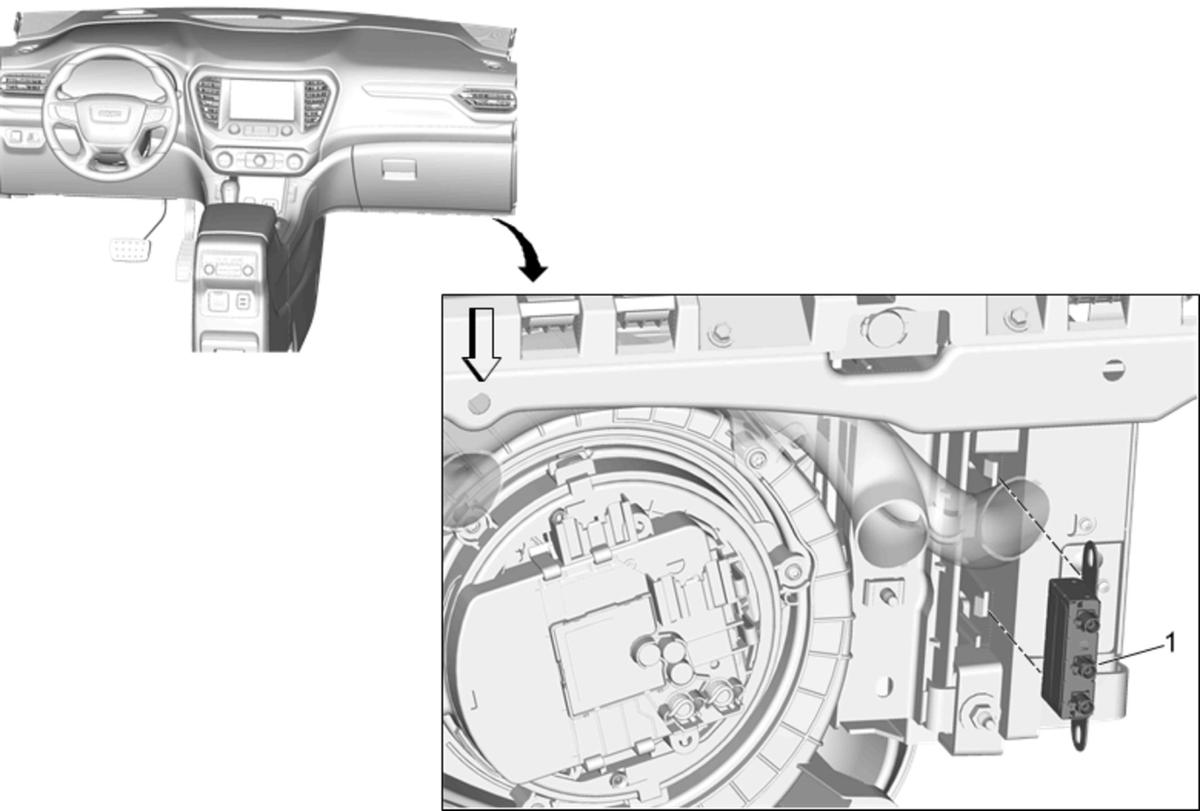

Fig 1: Navigation Signal Splitter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Instrument Panel Insulator - Right Side. Refer to Instrument Panel Insulator Replacement - Right Side
1	Navigation Signal Splitter Procedure Disconnect the electrical connectors. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Remove Instrument Panel Insulator - Right Side. Refer to Instrument Panel Insulator Replacement - Right Side

Navigation Signal Splitter

Procedure

Disconnect the electrical connectors.
Release the retaining tabs.
