Human Machine Interface Control Module Bypass Module Bracket Replacement

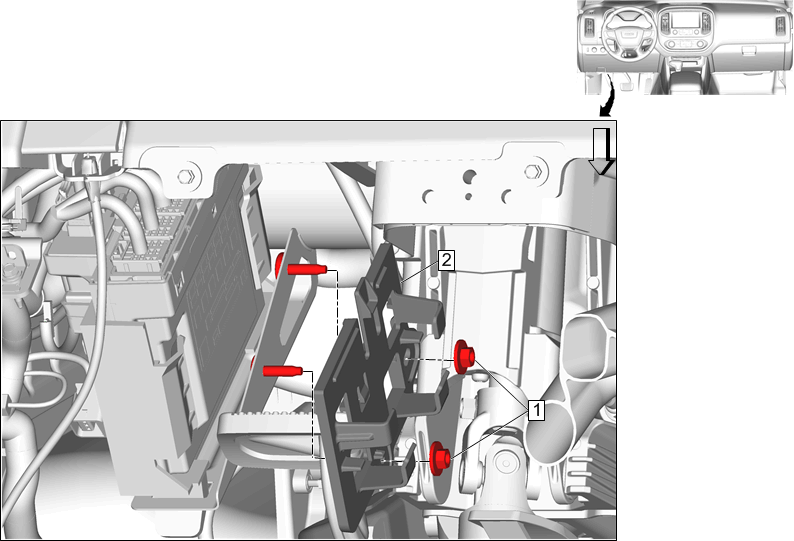

| Callout | Component Name |
|---|---|
| Preliminary Procedure Human Machine Interface Control Module Bypass Module Replacement |
|
| 1 | Human Machine Interface Control Module Bypass Module Bracket Nut[2x]
CAUTION:
Tighten 9N.m (80 lb in) |
| 2 | Human Machine Interface Control Module Bypass Module Bracket |
