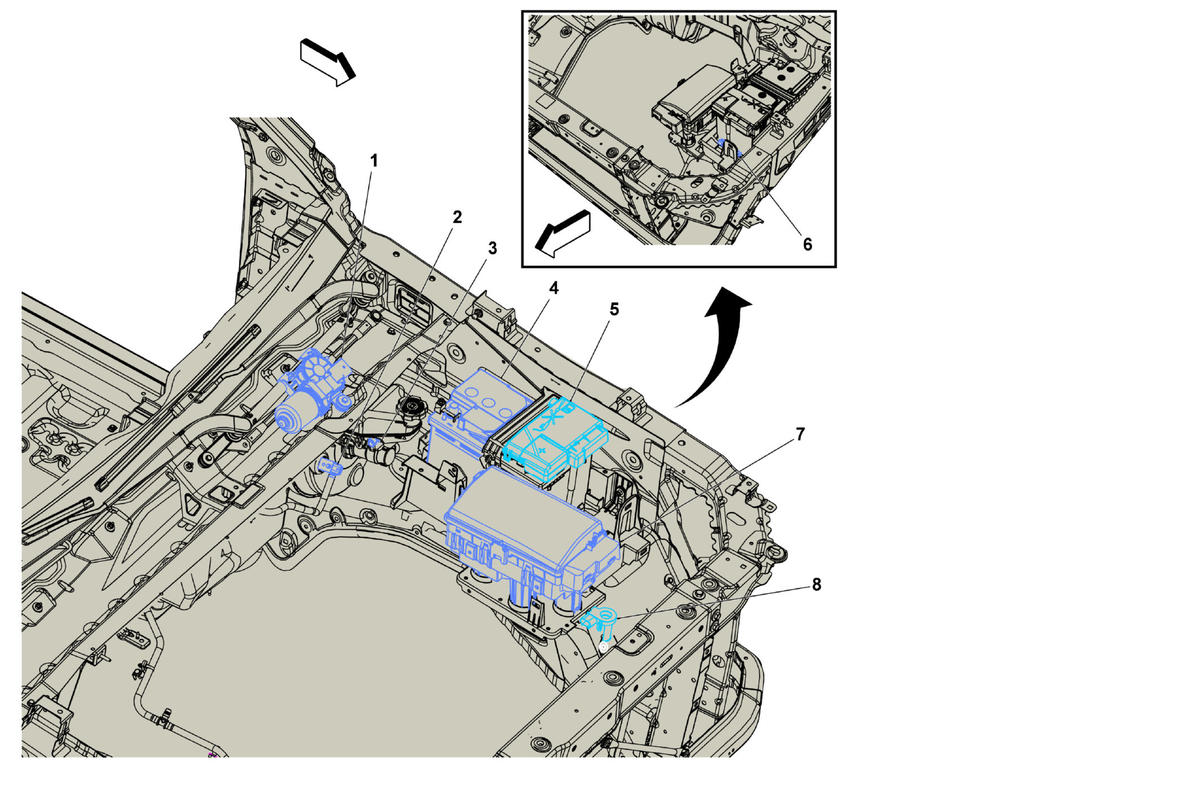

Left Side of Engine Compartment Components
Left Side of Engine Compartment Components
| Items | Callout |
|---|---|
| M75 Windshield Wiper Motor M75 Windshield Wiper Motor | 1 |
| B19B Brake Booster Vacuum Sensor B19B Brake Booster Vacuum Sensor | 2 |
| B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch | 3 |
| C1 Battery C1 Battery X1 (+)C1 Battery X3 (-) | 4 |
| X50D Fuse Block - Battery X50D FUSE BLOCK - BATTERY X1X50D Fuse Block - Battery X2X50D Fuse Block - Battery X3X50D Fuse Block - Battery X4 (LGZ)X50D Fuse Block - Battery X4 (LWN)X50D Fuse Block - Battery X5X50D Fuse Block - Battery X6 (LCV/LGZ)X50D Fuse Block - Battery X7 (LCV) | 5 |
| R10 Cooling Fan Resistor (LWN) R10 Cooling Fan Resistor | 6 |
| X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4X50A Fuse Block - Underhood X5 | 7 |
| B18 Battery Current Sensor B18 Battery Current Sensor | 8 |
