Behind the Instrument Panel Components

Items
1. F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1 F101 Passenger Instrument Panel Air Bag X2
2. A11 Radio A11 Radio X1 (IO5/IO6)A11 Radio X1 (IOB)A11 Radio X2 (IO5/IO6)A11 Radio X2 (IOB)A11 Radio X3 (IO5/IO6)A11 Radio X3 (IOB)A11 Radio X4 A11 Radio X6 A11 Radio X7 (IOB)
3. K74 Human Machine Interface Control Module (IO4/IO5/IO6) K74 Human Machine Interface Control Module X1 K74 Human Machine Interface Control Module X2 K74 Human Machine Interface Control Module X4 K74 Human Machine Interface Control Module X5 (IO5/IO6)K74 Human Machine Interface Control Module X7 (IO6)
4. P43 Collision Alert Indicators (UEU) P43 Collision Alert Indicators
5. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 K56 Serial Data Gateway Module X2
6. K9 Body Control Module K9 Body Control Module X1 K9 Body Control Module X2 K9 Body Control Module X3 K9 Body Control Module X4 K9 Body Control Module X5 K9 Body Control Module X6 K9 Body Control Module X7
7. K33 HVAC Control Module K33 HVAC Control Module X1 K33 HVAC Control Module X2 K33 HVAC Control Module X3
8. T3 Audio Amplifier (UQA) T3 Audio Amplifier X1 T3 Audio Amplifier X2 X50D Fuse Block - Battery X1 T3 Audio Amplifier X3 T3 Audio Amplifier X4

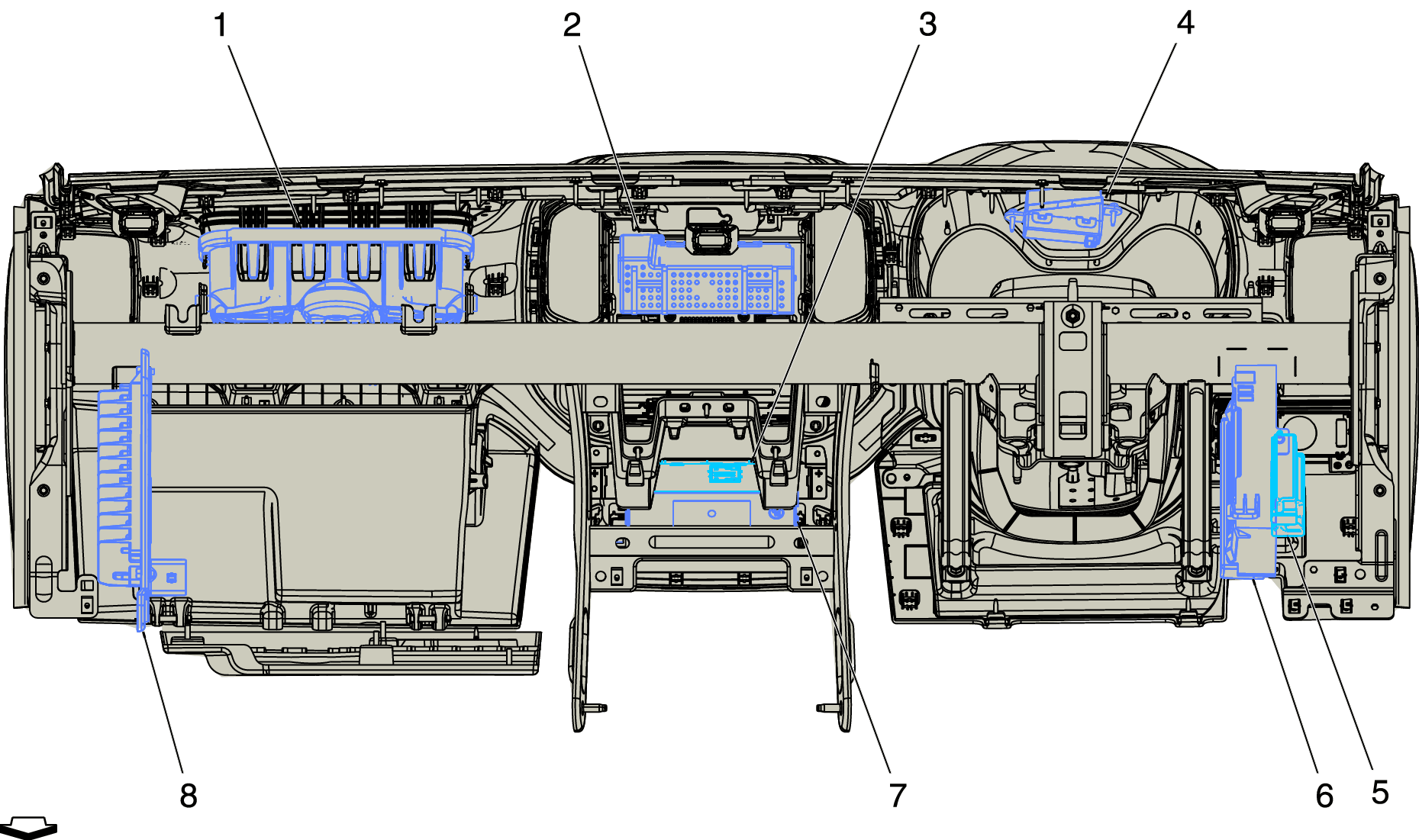

Fig 1: Behind the Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY
