Air Cleaner Assembly Replacement

Courtesy of GENERAL MOTORS COMPANY

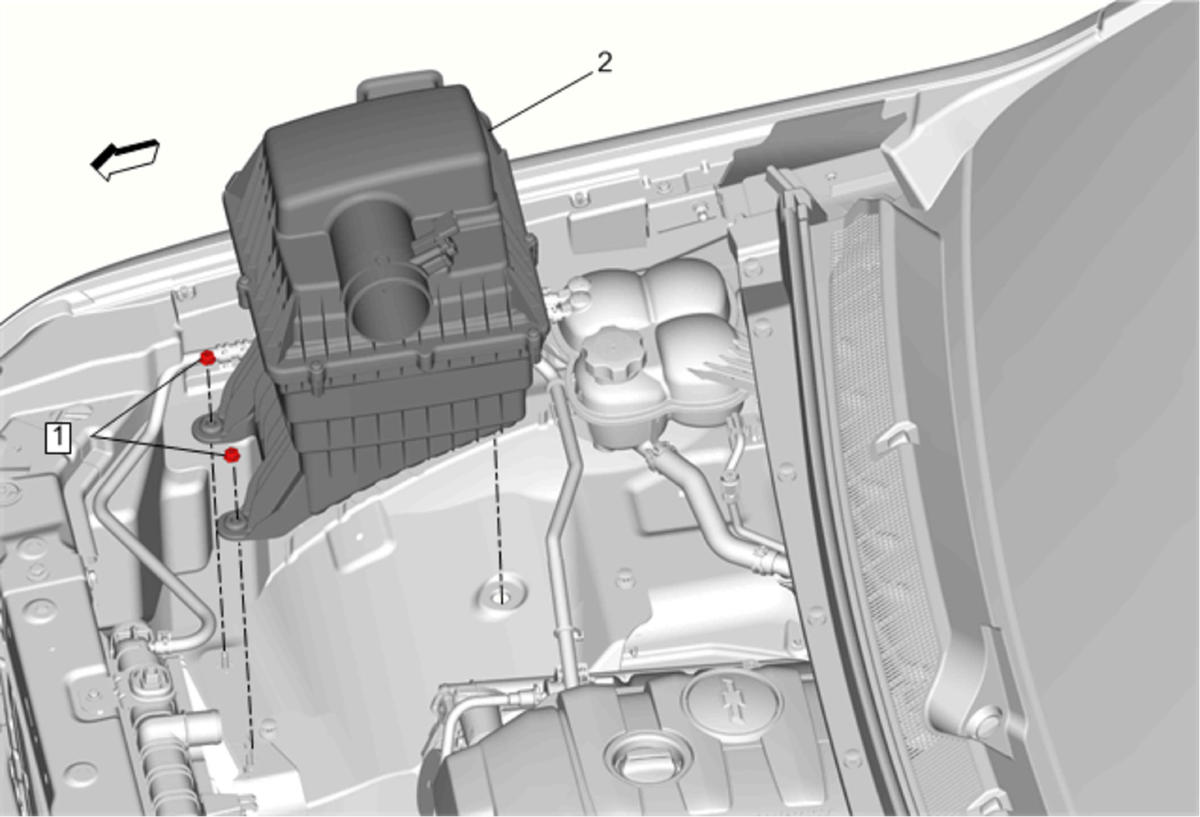

Callout	Component Name
Preliminary Procedure Disconnect the air cleaner outlet duct from the air cleaner assembly. Refer to Air Cleaner Outlet Duct Replacement . Disconnect the mass airflow sensor connector.
1	Air Cleaner Assembly Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 12 N.m (106 lb in)
2	Air Cleaner Assembly Procedure Pull up on the assembly to release lower retainer.

Callout

Component Name

Preliminary Procedure

Disconnect the air cleaner outlet duct from the air cleaner assembly. Refer to Air Cleaner Outlet Duct Replacement .
Disconnect the mass airflow sensor connector.

Air Cleaner Assembly Fastener (Qty: 2)

CAUTION:

Tighten
12 N.m (106 lb in)

Air Cleaner Assembly
Procedure
Pull up on the assembly to release lower retainer.
