Engine Oil Pressure Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and properly support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the starter. Refer to Starter Replacement (LCV) .

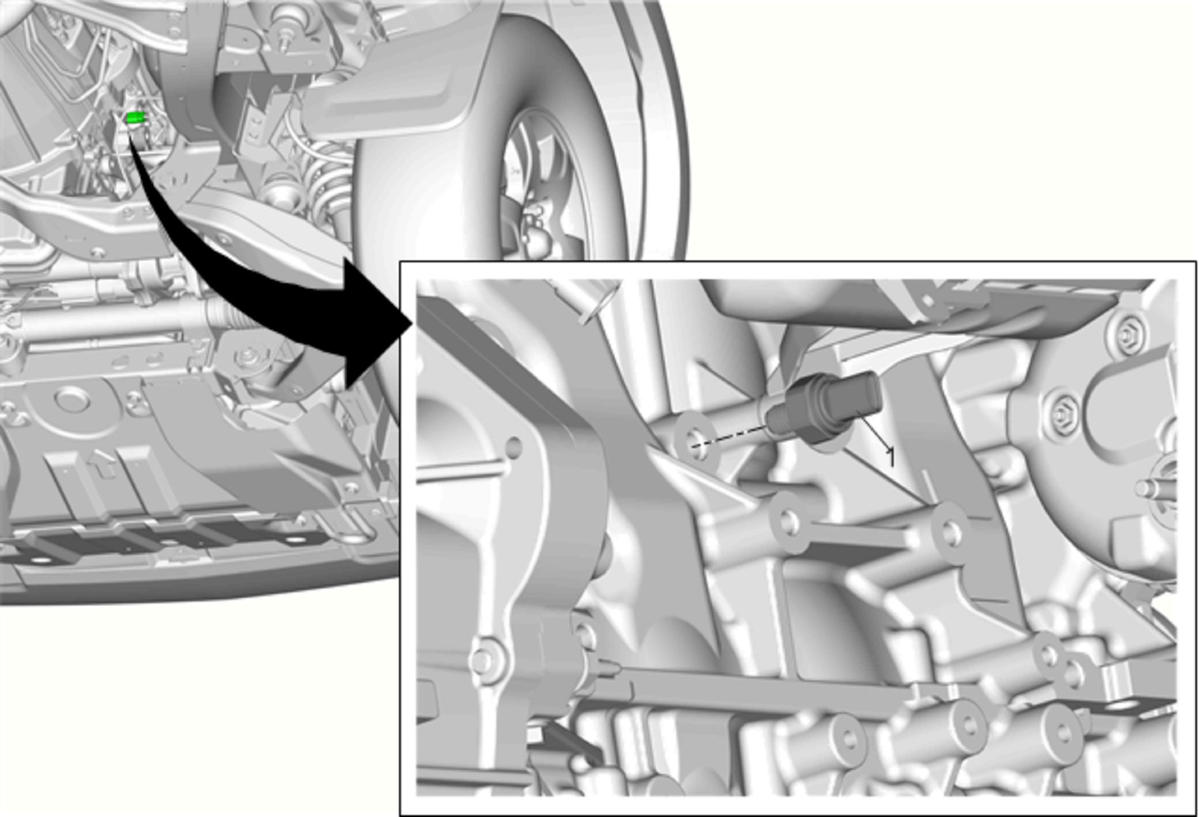

1	Engine Oil Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the engine oil pressure sensor electrical connector. Tighten 35 N.m (26 lb ft)

Callout

Component Name

Preliminary Procedure

Raise and properly support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the starter. Refer to Starter Replacement (LCV) .

Engine Oil Pressure Sensor

CAUTION:

Procedure
Disconnect the engine oil pressure sensor electrical connector.
Tighten
35 N.m (26 lb ft)
