Front Intake Air Duct Replacement

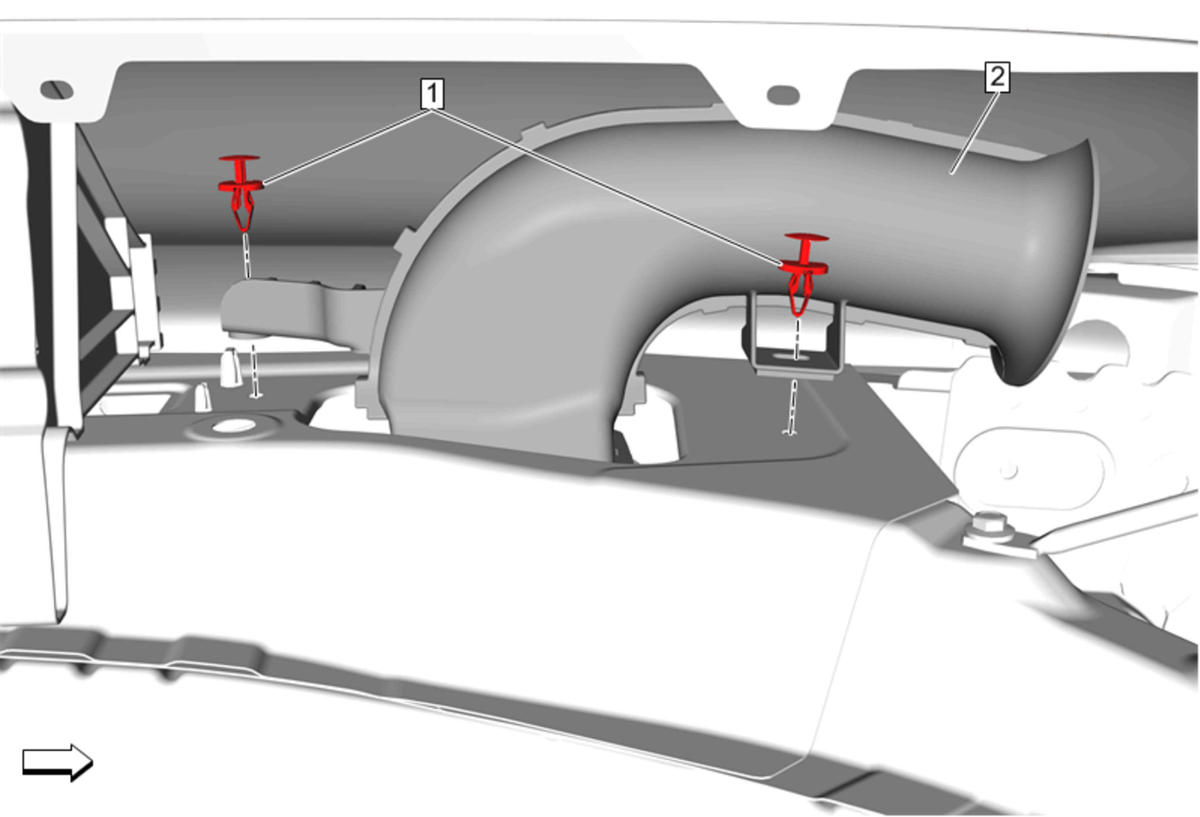

GM5066357Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Wheelhouse Liner-Right Side - Remove - Front Wheelhouse Liner Replacement
1 Retainer[2x]
CAUTION:

Refer to Fastener Caution .

2 Front Intake Air Duct
Procedure
Pull out on front intake air duct to remove from air cleaner assembly.
