Front Seat Adjuster Memory Module Bracket Replacement

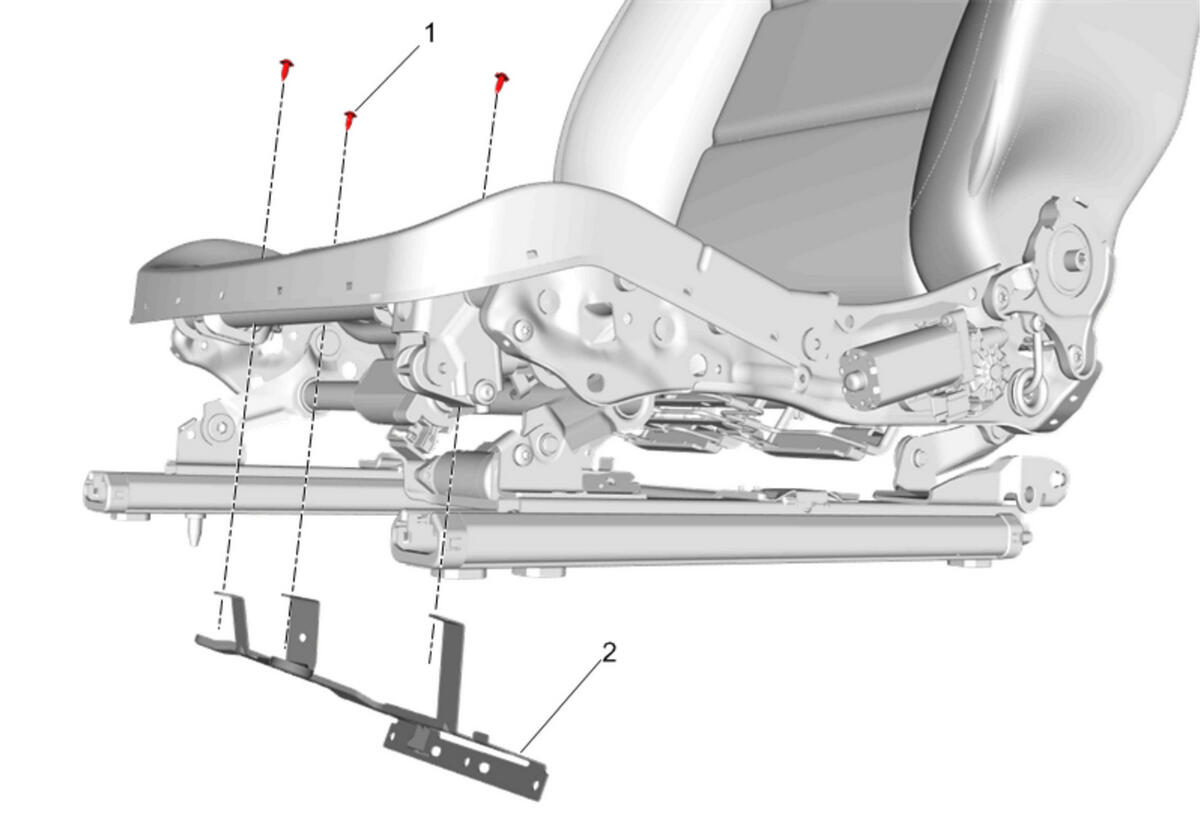

Fig 1: Front Seat Adjuster Memory Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Seat Cushion Cover and Pad Replacement Driver Seat Adjuster Memory Module Replacement
1	Front Seat Adjuster Memory Module Bracket Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Seat Adjuster Memory Module Bracket

Callout

Component Name

Preliminary Procedures

Front Seat Adjuster Memory Module Bracket Fastener [3x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Seat Adjuster Memory Module Bracket
