Accelerator Pedal Assembly Replacement

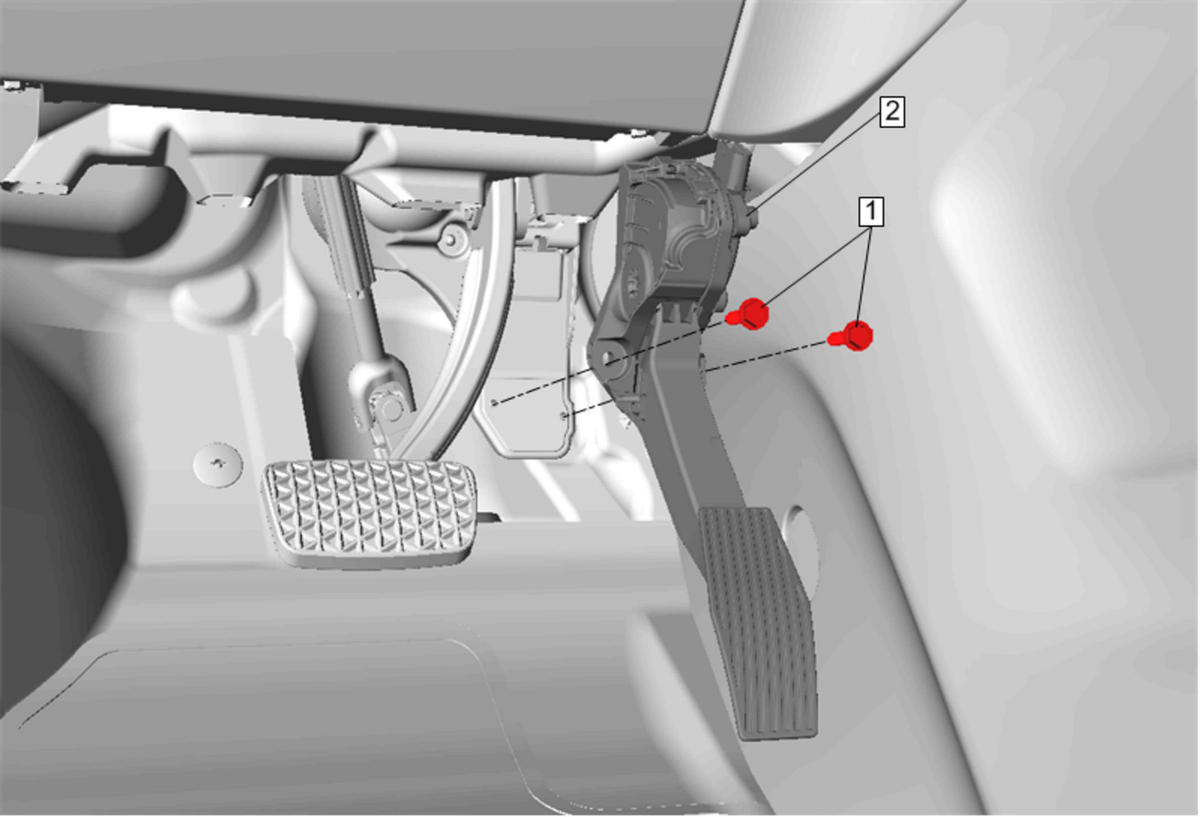

Fig 1: Accelerator Pedal Assembly
GM4597333Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Accelerator Pedal Position Sensor Bolt[2x]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Accelerator Pedal Position Sensor
Procedure
Disconnect the electrical connector.
