Fuel Level Sensor Replacement (AWD)

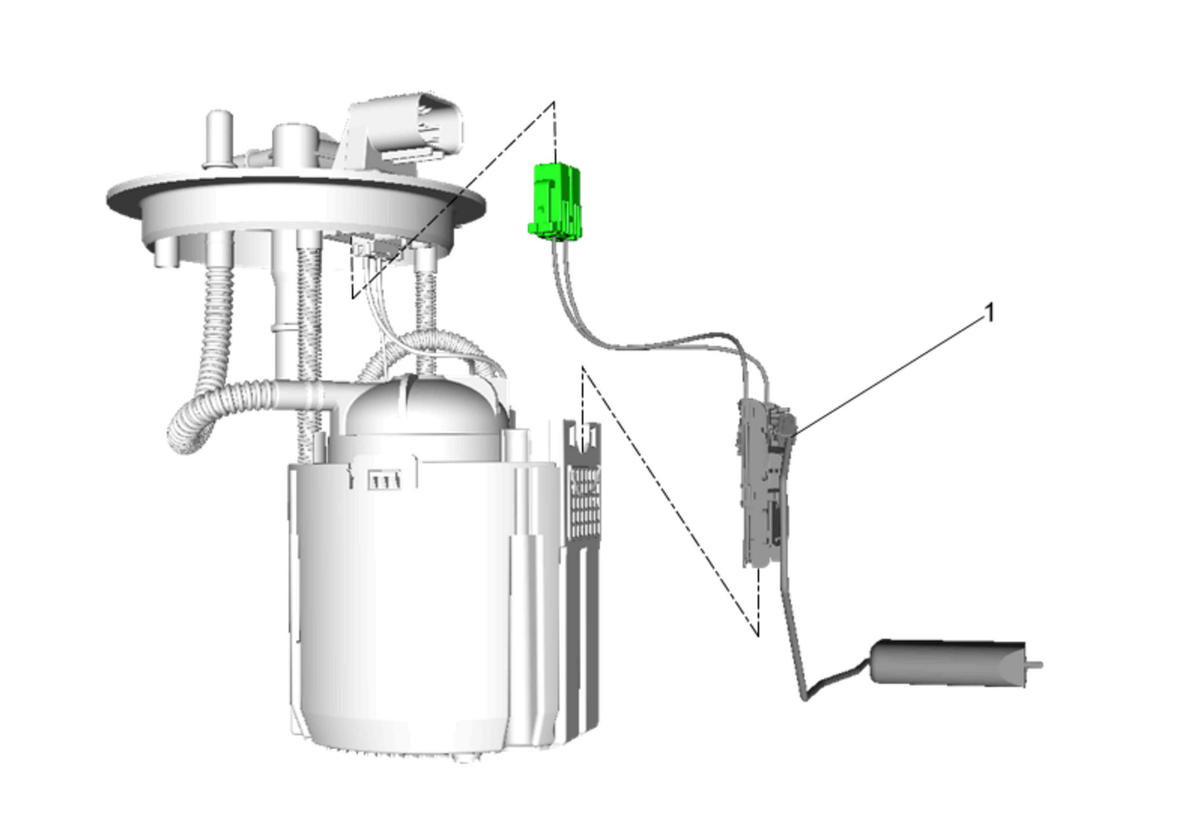

Fig 1: Fuel Level Sensor (AWD)
GM4596009Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Fuel Tank Fuel Pump Module Replacement (AWD)
1 Fuel Level Sensor

Procedure

  1. Release tabs and slide fuel level sensor up to remove.
  2. Disconnect the electrical connector.
