Installation Procedure

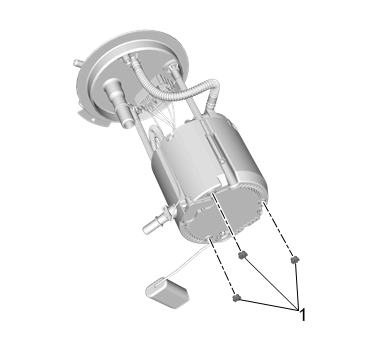

    Fig 1: Inspect Bottom Of Fuel Pump Module For Green Rubber Pads
    GM4933870Courtesy of GENERAL MOTORS COMPANY
  1. Inspect bottom of fuel pump module for 3 green rubber pads (1). If rubber pads are present, remove and discard them from fuel pump module prior to installing the fuel pump module in the tank.

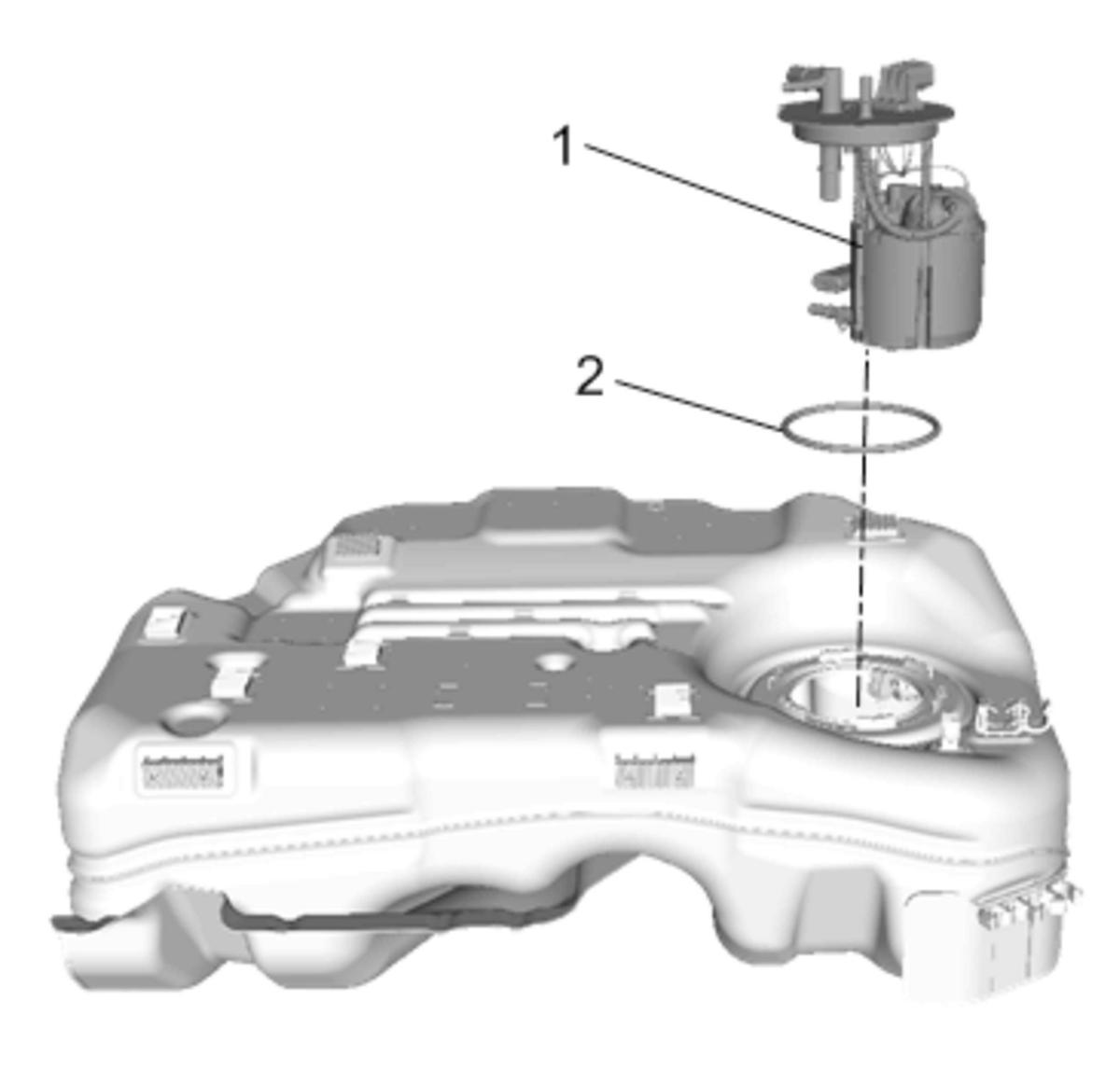

    2. Fig 2: Fuel Tank Fuel Pump Module And O-Ring
    GM4596023Courtesy of GENERAL MOTORS COMPANY
  2. Install New O-Ring (2)
  3. Install Fuel Tank Fuel Pump Module (1)

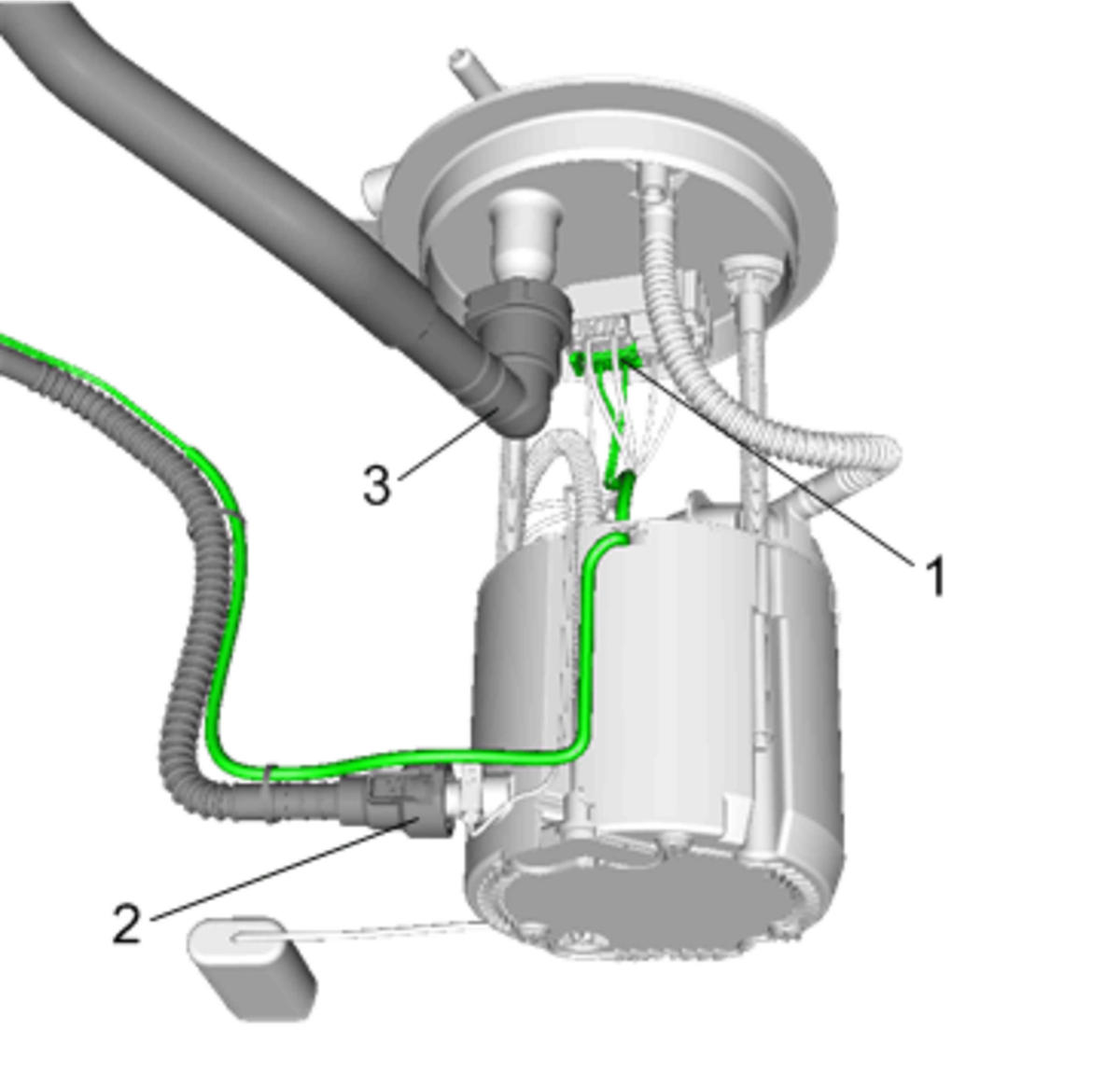

    4. Fig 3: Electrical Connector, Electrical Connector And Transfer Hose
    GM4596025Courtesy of GENERAL MOTORS COMPANY
  4. Connect Fuel Tank Vent Hose (3) - Plastic Collar Quick Connect Fitting Service
  5. Connect Transfer Hose (2) - Plastic Collar Quick Connect Fitting Service
  6. Connect Electrical Connector (1)

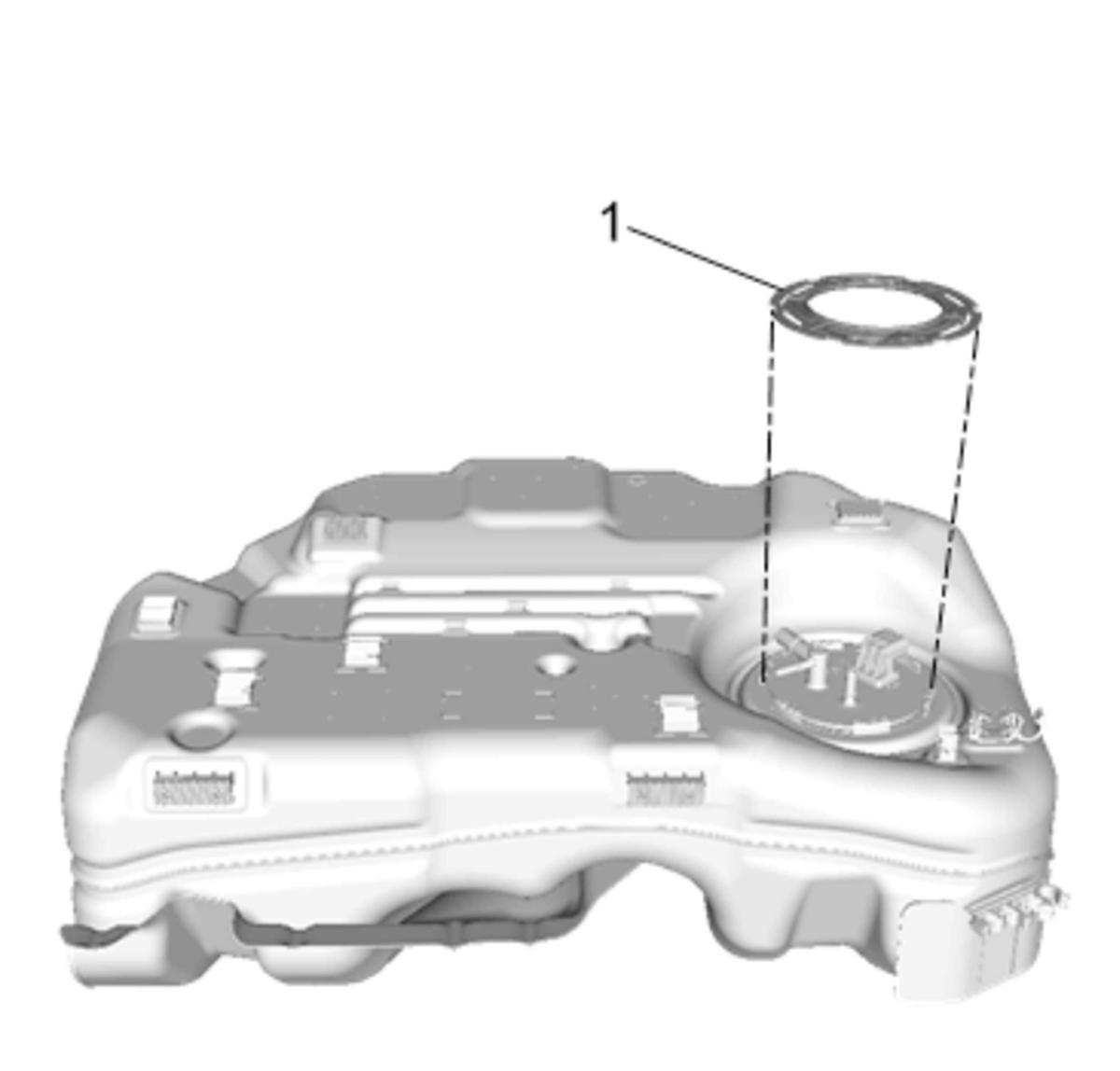

    7. Fig 4: Fuel Pump Lock Ring
    GM4596021Courtesy of GENERAL MOTORS COMPANY
  7. Install Fuel Pump Lock Ring (1) CH 52075  Fuel Sender Lock Ring Wrench

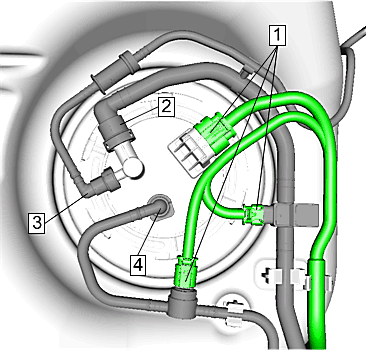

    8. Fig 5: Electrical Connector And Evaporative Emission Canister Vent Hose
    GM4596020Courtesy of GENERAL MOTORS COMPANY
  8. Connect Fuel Pump Fuel Feed Hose (4) - Plastic Collar Quick Connect Fitting Service
  9. Connect Fuel Tank Vent Hose (3) - Plastic Collar Quick Connect Fitting Service
  10. Connect Evaporative Emission Canister Vent Hose (2) - Plastic Collar Quick Connect Fitting Service
  11. Connect Electrical Connector (1)
  12. Install Fuel Tank - Fuel Tank Replacement (AWD)
