Installation Procedure

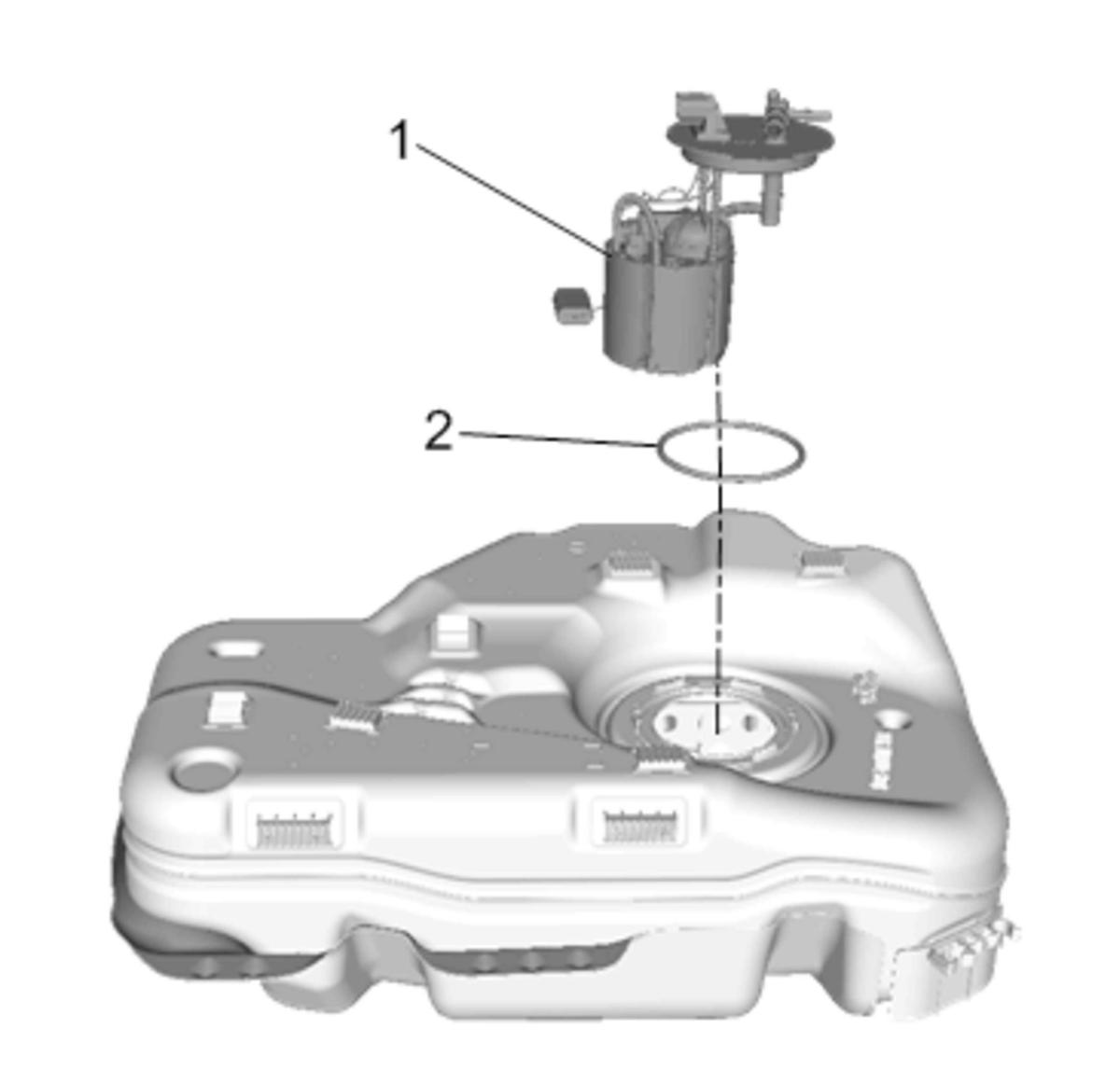

    Fig 1: Fuel Tank Fuel Pump Module
    GM4596018Courtesy of GENERAL MOTORS COMPANY
  1. Install NEW O-Ring (2)
  2. Install Fuel Tank Fuel Pump Module (1)

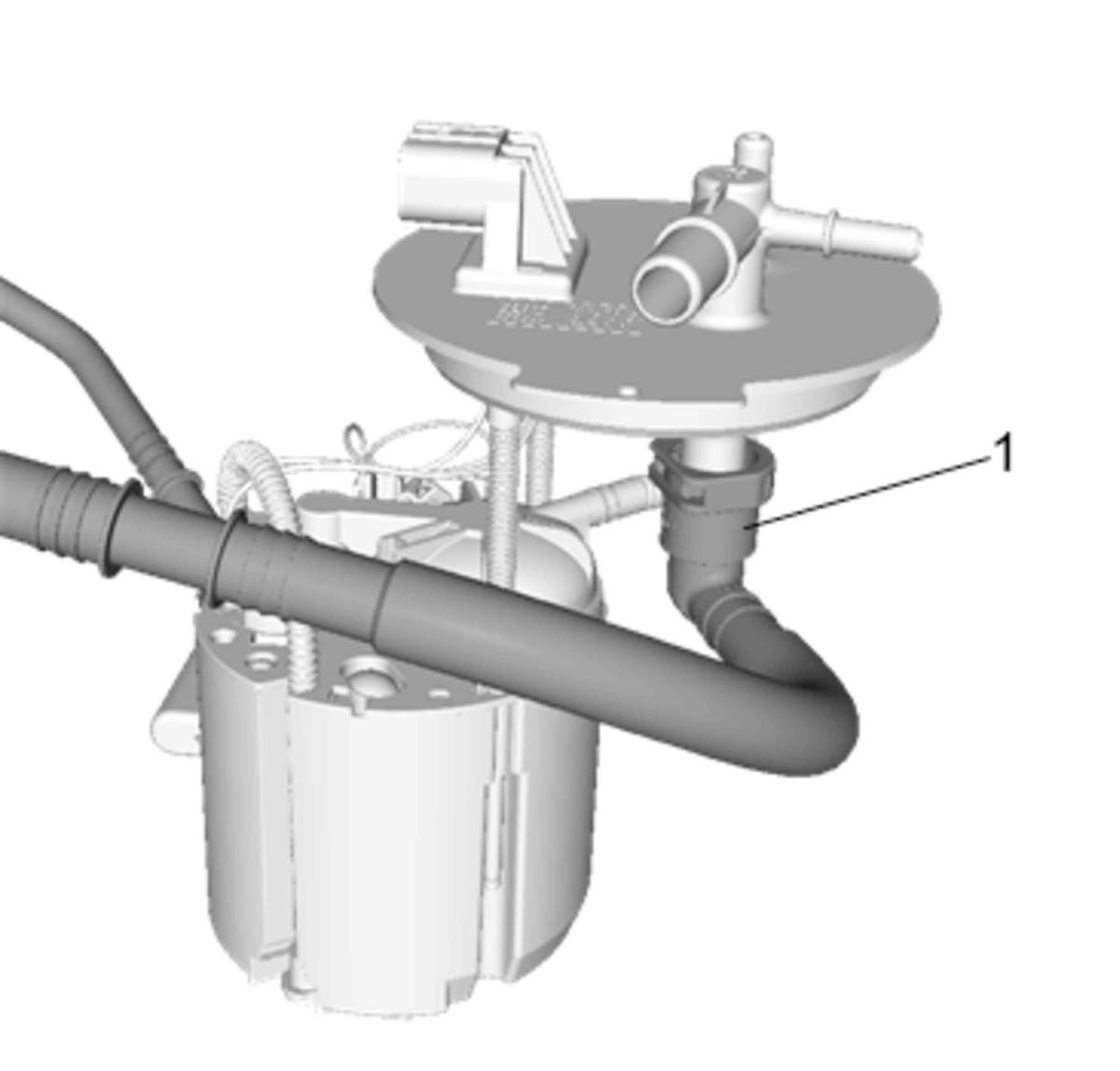

    3. Fig 2: Fuel Tank Vent Hose
    GM4596019Courtesy of GENERAL MOTORS COMPANY
  3. Connect Fuel Tank Vent Hose (1) - Plastic Collar Quick Connect Fitting Service

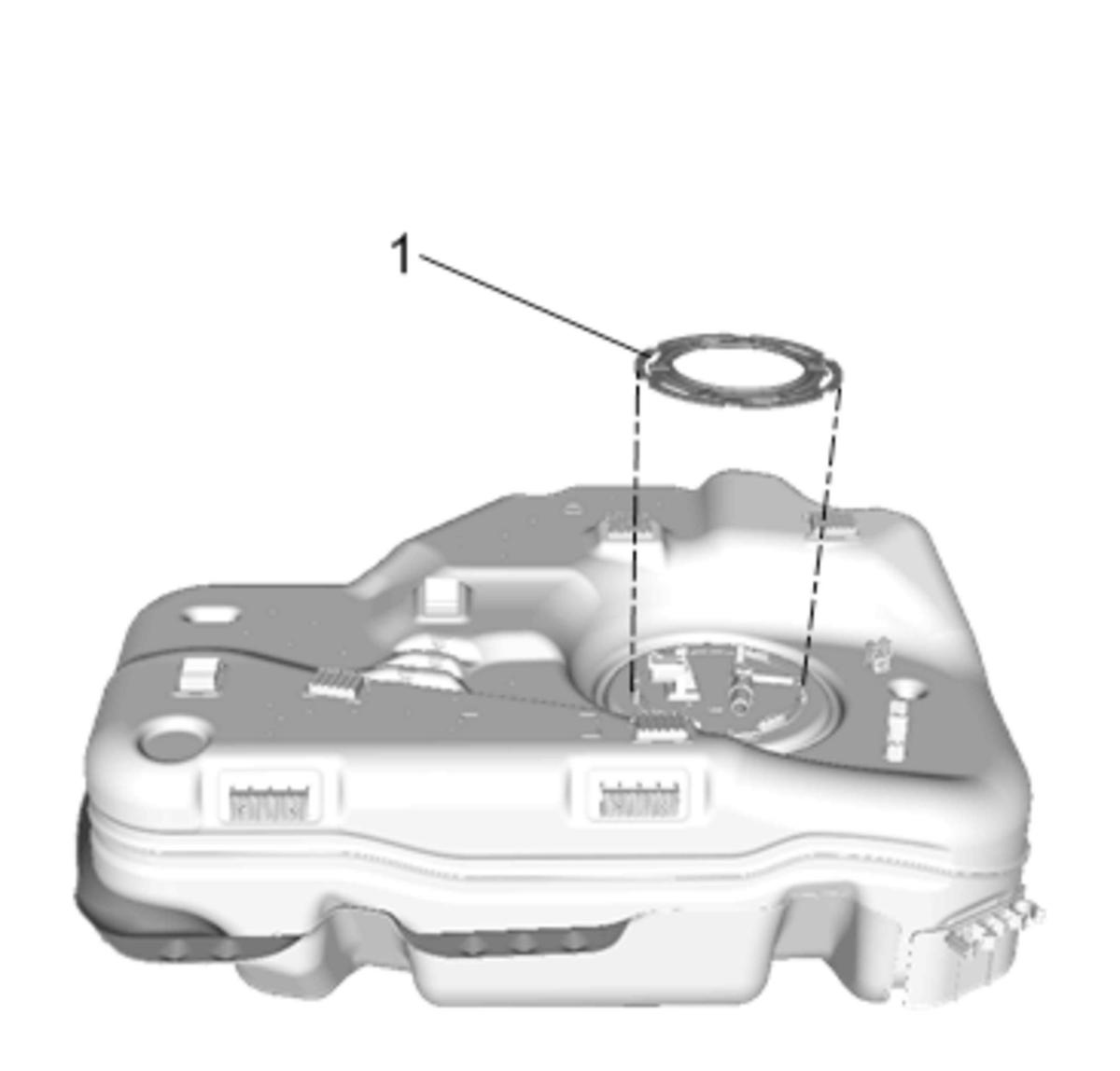

    4. Fig 3: Fuel Pump Lock Ring
    GM4596017Courtesy of GENERAL MOTORS COMPANY
  4. Install Fuel Pump Lock Ring (1) - CH 52075  Fuel Sender Lock Ring Wrench

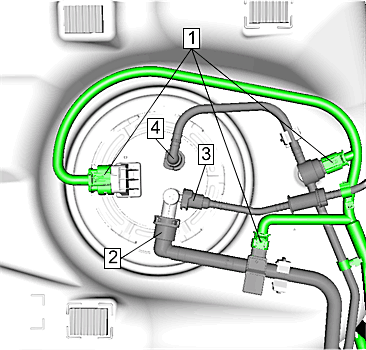

    5. Fig 4: Fuel Pump Fuel Feed Hose
    GM4596012Courtesy of GENERAL MOTORS COMPANY
  5. Connect Fuel Pump Fuel Feed Hose (4) - Plastic Collar Quick Connect Fitting Service
  6. Connect Fuel Tank Vent Hose (3) - Plastic Collar Quick Connect Fitting Service
  7. Connect Evaporative Emission Canister Vent Hose (2)Plastic Collar Quick Connect Fitting Service
  8. Connect Electrical Connector (1)
  9. Install Fuel Tank - Fuel Tank Replacement (FWD)
