Fuel Tank Shield Replacement (AWD)

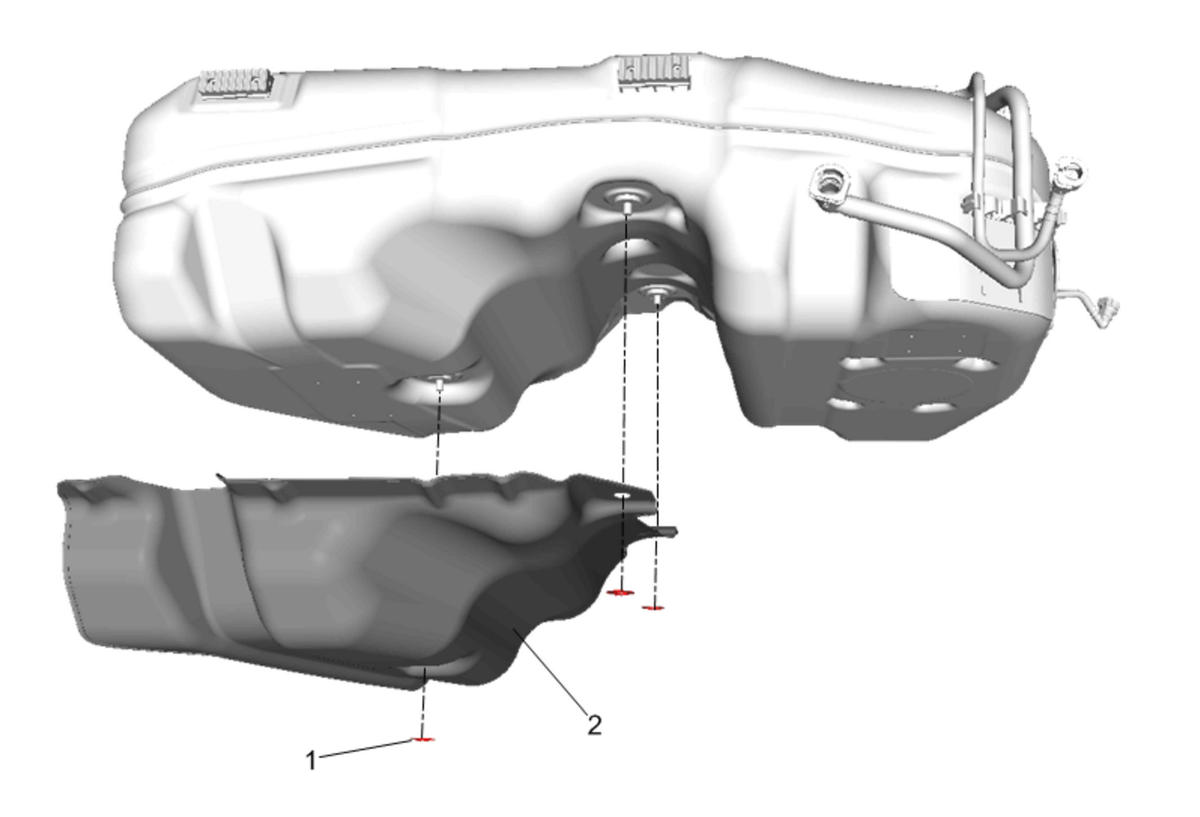

Fig 1: Fuel Tank Shield (AWD)
GM4594265Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Fuel Tank Replacement (AWD)
1 Fuel Tank Shield Retainer[3x]
2 Fuel Tank Shield
