Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

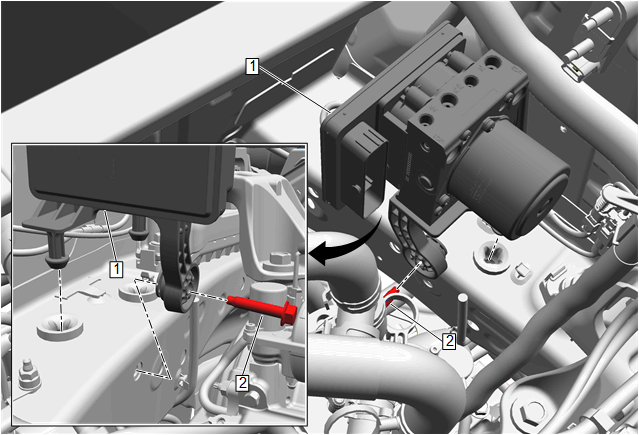

Electronic Brake Control Module with Brake Pressure Modulator Valve Assembly (1) - Install

CAUTION:

Brake Pressure Modulator Valve Bracket Bolt (2) - Install and tighten 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

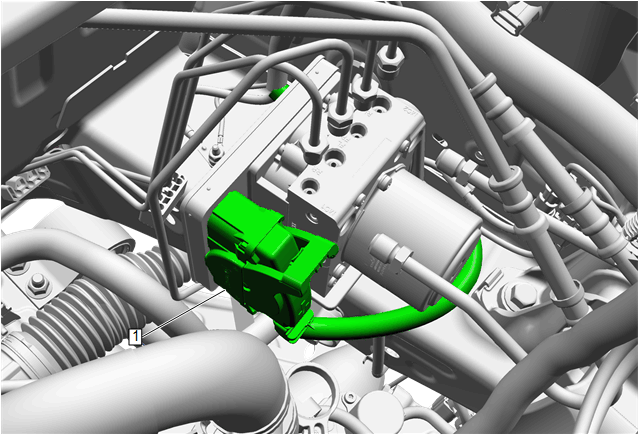

Connect the EBCM electrical connector (1).
Courtesy of GENERAL MOTORS COMPANY

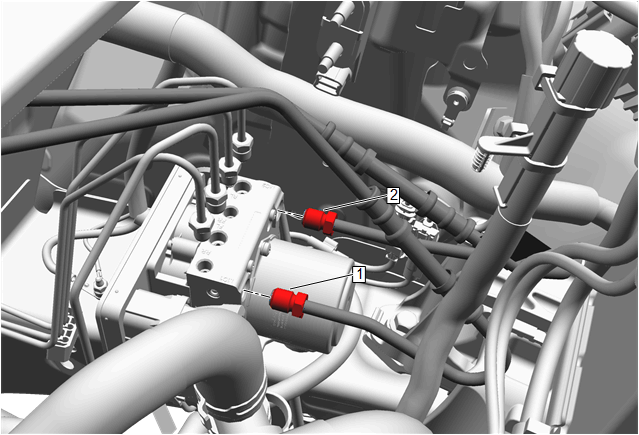

Remove the caps from the brake pipe fittings and plugs from the BPMV inlet ports.
Brake Pressure Modulator Valve Master Cylinder Reservoir Rear Pipe (2) @ Brake Pressure Modulator Valve - Install and tighten 32 N.m (24 lb ft)
Brake Pressure Modulator Valve Master Cylinder Reservoir Front Pipe (1) @ Brake Pressure Modulator Valve - Install and tighten 32 N.m (24 lb ft)
Courtesy of GENERAL MOTORS COMPANY

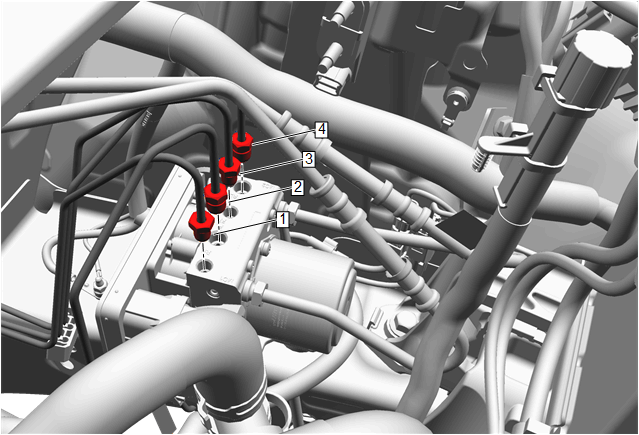

Remove caps from the brake pipe fittings and plugs from the BPMV outlet ports.
Left Rear Brake Pipe Fitting (4) - Install and tighten 18 N.m (13 lb ft)
Right Rear Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)
Right Front Brake Pipe Fitting (3) - Install and tighten 18 N.m (13 lb ft)
Left Front Brake Pipe Fitting (2) - Install and tighten 18 N.m (13 lb ft)
Reposition and install the radiator surge tank. Radiator Surge Tank Replacement (LGX with V08) , or Radiator Surge Tank Replacement (LCV)
Bleed the brake system. Antilock Brake System Automated Bleed
Program the EBCM. Control Module References
Center the steering angle sensor. Steering Wheel Angle Sensor Centering
