Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Remote Functions
>>
Wiring Schematic and Routing Diagrams
>>
Remote Function Wiring Schematics
>>
Keyless Entry - Passive and Keyless Start
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

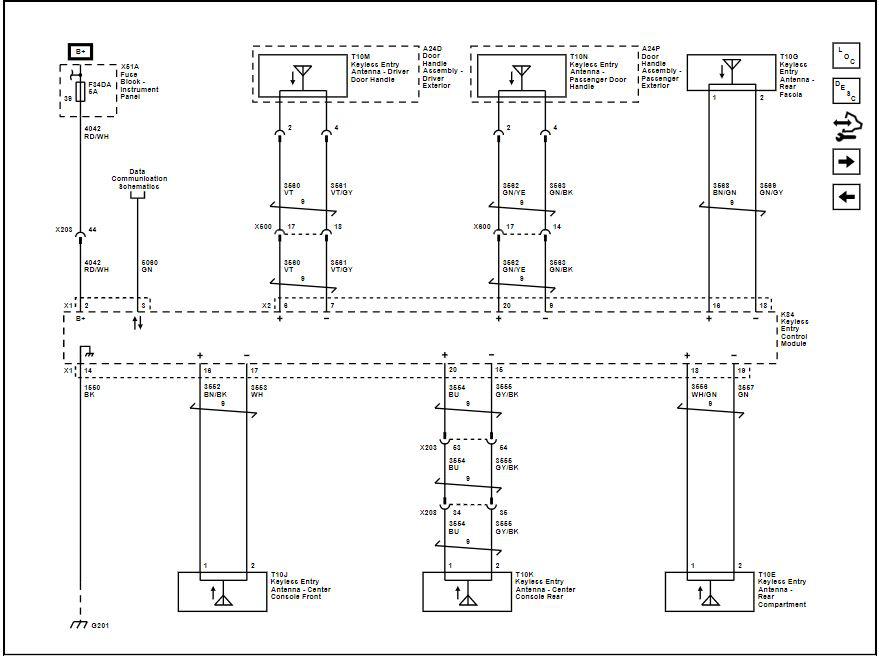

Keyless Entry - Passive and Keyless Start
Courtesy of GENERAL MOTORS COMPANY
