Installation Procedure

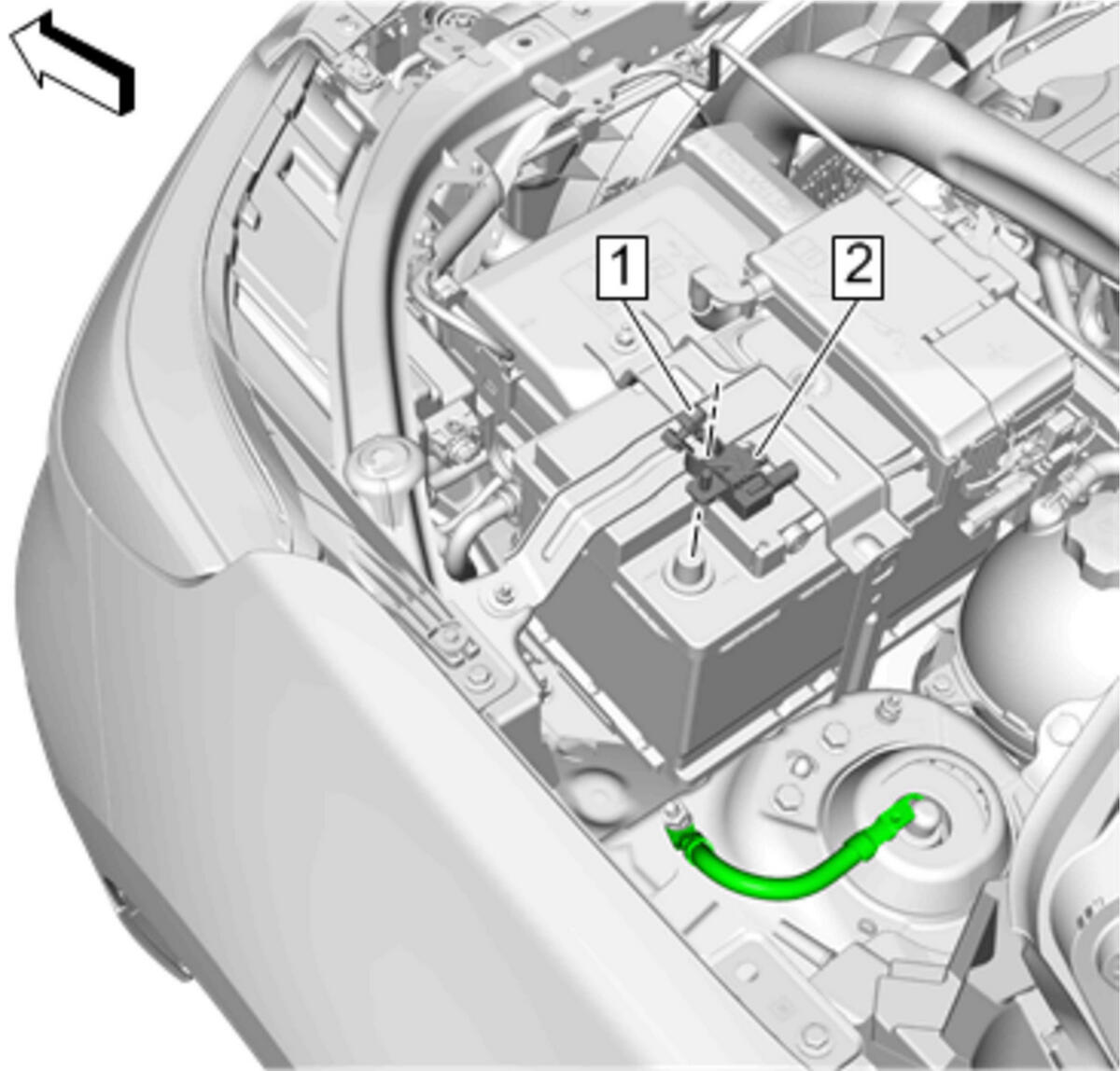

  1. Battery Monitor Module (2) - Install
    GM4582272Courtesy of GENERAL MOTORS COMPANY
  2. Battery Negative Post Clamp Nut (1) - Tighten 4.5 N.m (40 lb in)
    CAUTION:

    Refer to Fastener Caution .

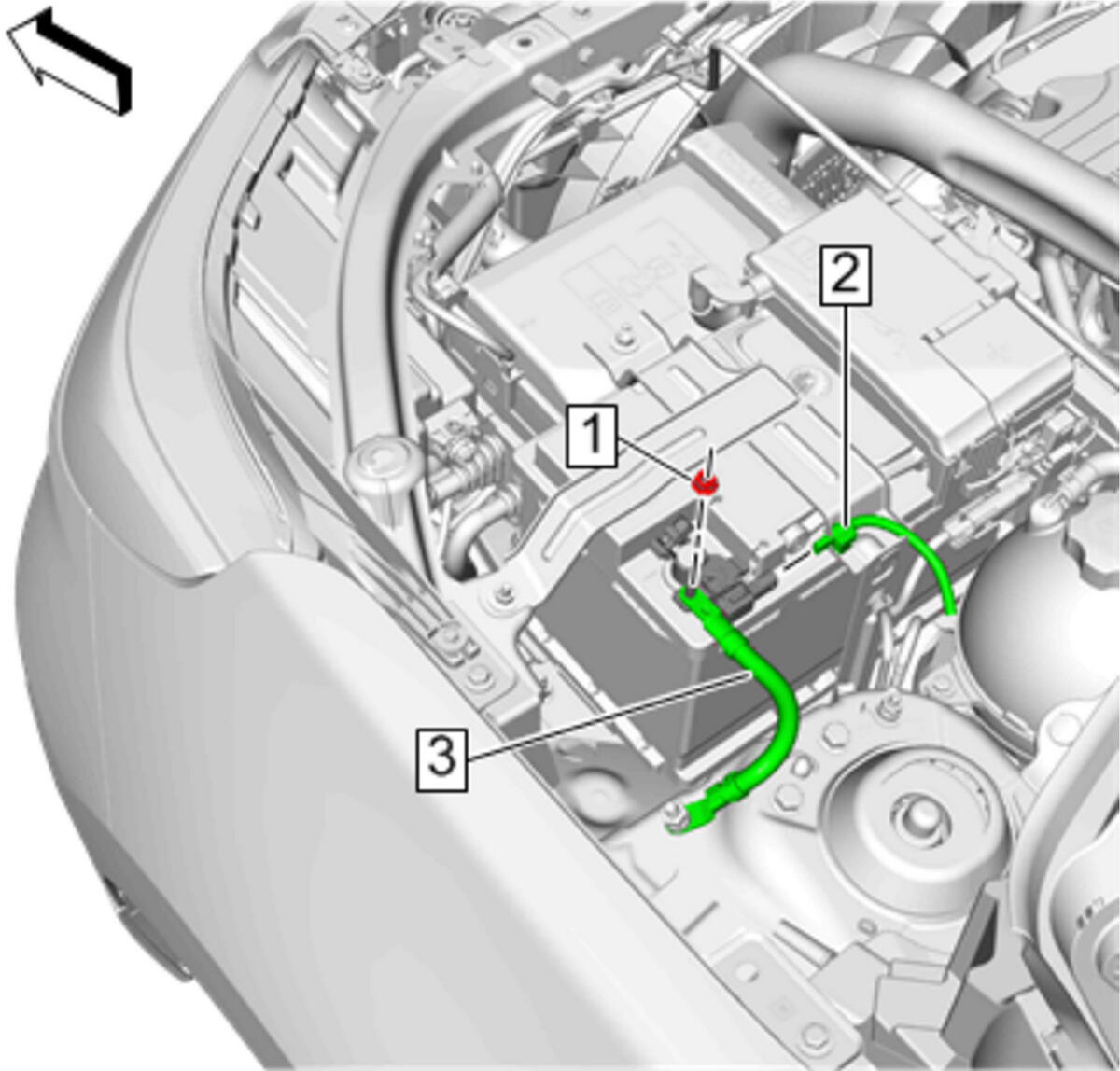

  3. Electrical Connector (2) - Connect
    GM4582267Courtesy of GENERAL MOTORS COMPANY
  4. Battery Negative Cable (3) - Install
  5. Battery Negative Cable Nut (1) - Tighten 9 N.m (80 lb in)
  6. Perform the battery sensor learn procedure. Battery Sensor Module Learn .
