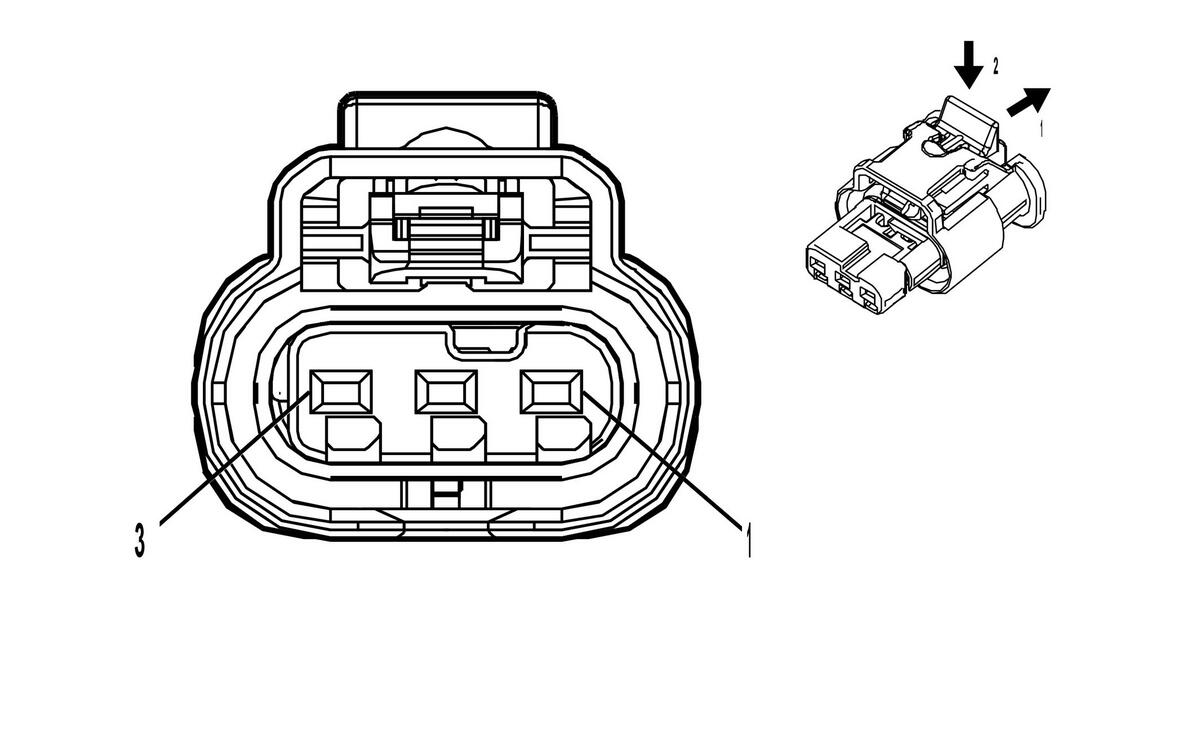

K171 Hands-Free Liftgate Sensor Control Module X1 (TC2)
WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Rear Fascia
- OEM Connector: 4-2272004-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 1.2 MCP Series, Sealed (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN/BN |
4118 |
Local Interconnect Network Serial Data Bus 18 |
I |
TC2 |
| 2 |
0.5 |
RD/GN |
2440 |
Battery Positive Voltage |
I |
TC2 |
| 3 |
0.5 |
BK |
2550 |
Ground |
I |
- |
