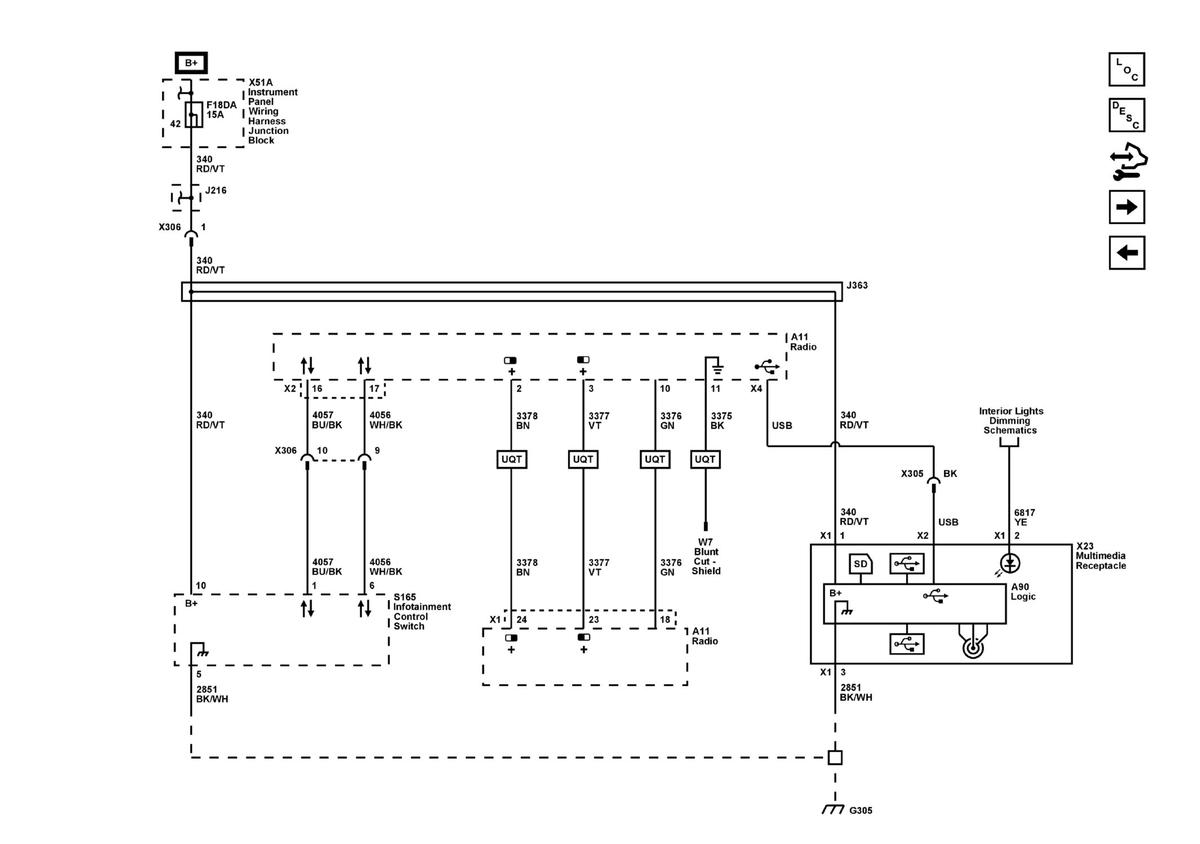

Rear Audio Control Module, and Audio/Video Input Adapter

WARNING: This page is about a different car, the 2021 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
GM5522614Courtesy of GENERAL MOTORS COMPANY
