Installation Procedure
WARNING: This page is about a different car, the 2021 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Video Processing Module (2) - Install
- Video Processing Module Nut (1) - Install and tighten [2x] - Fastener Specifications Fastener Specifications
Connect the electrical connectors.

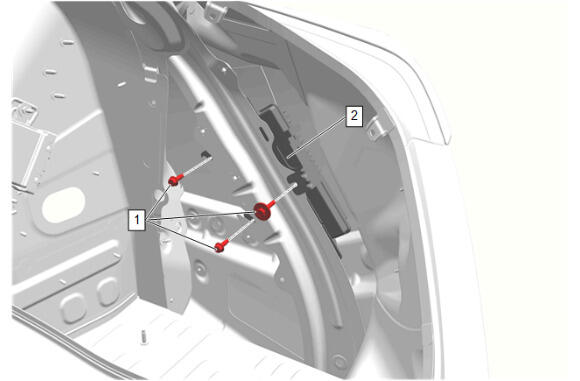

- Video Processing Module Bracket (2) - Install
- Video Processing Module Bracket Bolt (1) - Install and tighten [3x] - Fastener Specifications Fastener Specifications
Connect the electrical connectors.

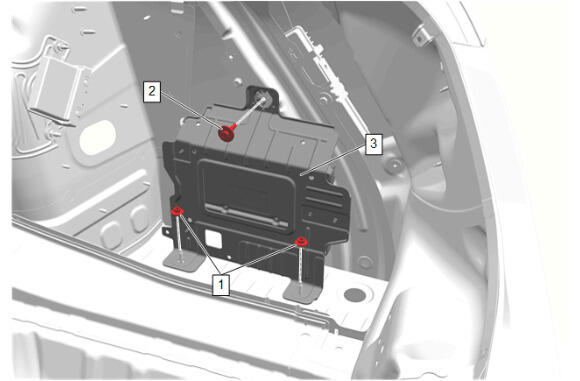

- Vehicle Performance Data Recorder Bracket (3) - Install
- Vehicle Performance Data Recorder Bracket Bolt (2) - Install and tighten - Fastener Specifications Fastener Specifications
- Vehicle Performance Data Recorder Bracket Nut (1) - Install and tighten [2x] - Fastener Specifications Fastener Specifications
Rear Compartment Side Trim-Right Side (2) - Install
- Rear Compartment Side Trim Insulator Retainer (1) - Install [4x]
Rear Compartment Floor Panel Trim (2) - Install
- Rear Compartment Floor Stowage Compartment Retainer (1) - Install [3x]
Rear End Trim Finish Panel (1) - Install
Rear End Trim Finish Panel Opening Cover (1) - Install
Rear Compartment Floor Panel Trim (1) - Install
Cargo Tie Down Loop (3) - Install [2x]
- Cargo Tie Down Loop Bolt (2) - Install and tighten [2x] - Fastener Specifications
- Cargo Tie Down Loop Bolt Cap (1) - Install [2x]
- Perform the necessary programming and setup procedure:Control Module References
CAUTION:
Refer to Fastener Caution .
