Installation Procedure
WARNING: This page is about a different car, the 2021 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

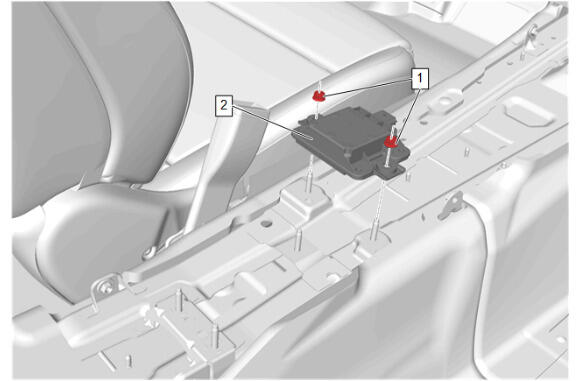

Vehicle Dynamic Sensor (2) - Install
- Vehicle Dynamic Sensor Nut (1) - Install and tighten [2x] - Fastener Specifications
- Connect the electrical connector.
- Front Floor Console - Install - Front Floor Console Removal and Installation (with M5N) , or Front Floor Console Removal and Installation (with MQA)
- Perform the necessary programming and setup procedure: Control Module References
CAUTION:
Refer to Fastener Caution .
