Installation Procedure

WARNING: This page is about a different car, the 2021 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Driver Monitoring System Camera (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Instrument panel steering column upper trim cover is removed for graphic clarity.

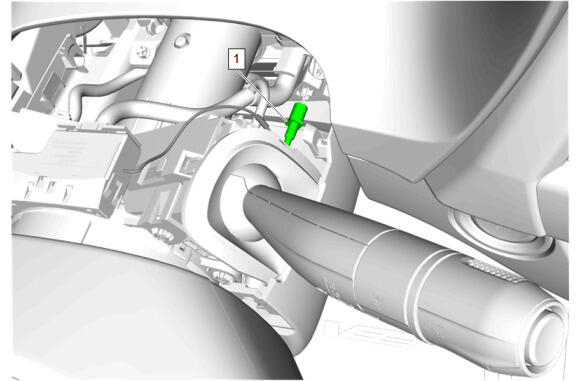

Connect the electrical connector (1)
Courtesy of GENERAL MOTORS COMPANY

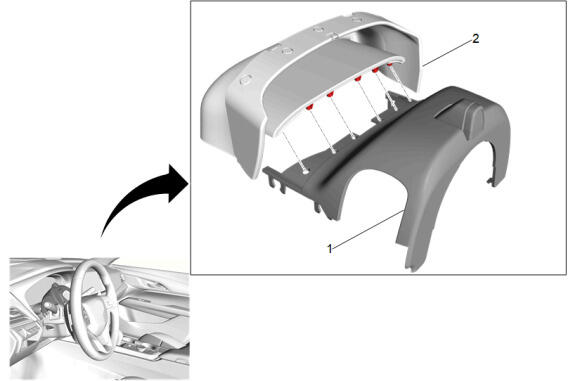

Clip the instrument panel steering column opening closeout (2) to the instrument panel steering column upper trim cover (1).
Courtesy of GENERAL MOTORS COMPANY

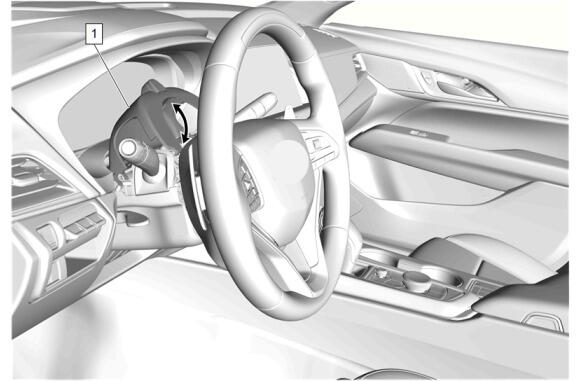

Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
