B34E Engine Coolant Temperature Sensor 5
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

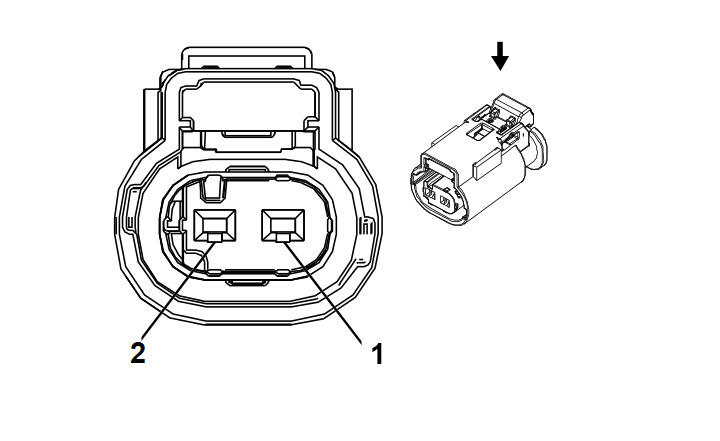

Connector Part Information
- Harness Type: Engine Wiring Harness
- OEM Connector: 13840071
- Service Connector: 13587321
- Description: 2-Way F 1.2 Multilock Series, Sealed (D-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-12 (BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU / YE |
8938 |
Engine Integrated Exhaust Manifold Temperature Signal |
I |
- |
| 2 |
0.5 |
BK / YE |
548 |
Engine Control Sensors Low Reference 1 |
I |
- |
